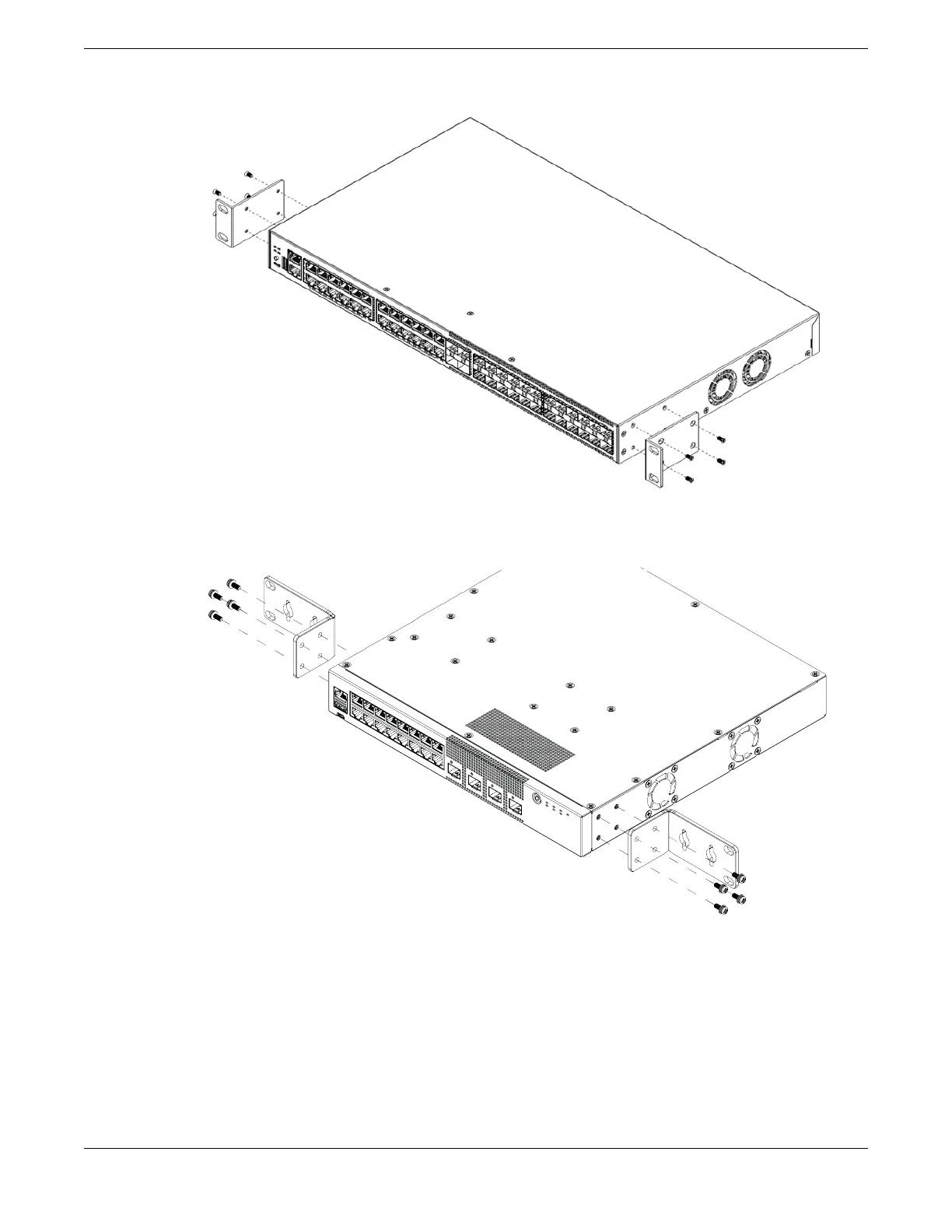

Figure 36: Flush-Mount: Attaching mounting ears to 5320-24T-4X-XT and
5320-24T-24S-4XE-XT models
Figure 37: Mid-Mount: Attaching 1U mounting ears to 5320-16P models
Install the Device in a Rack Install Your Switch
64 ExtremeSwitching 5320 Series Hardware Installation Guide
