Extreme Networks ExtremeSwitching 5320 Series User Manual

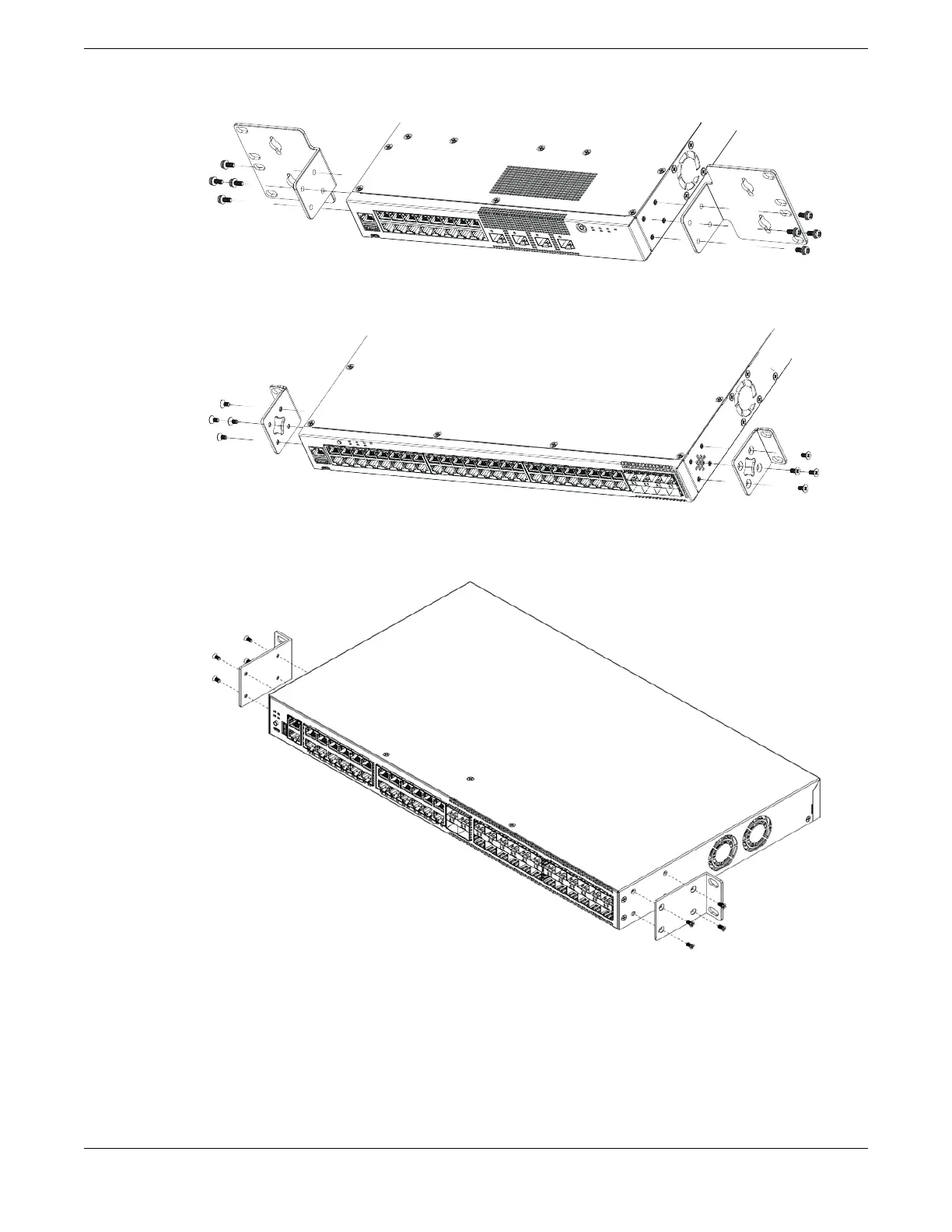

Figure 38: Mid-Mount: Attaching larger mounting ears to 5320-16P models
Figure 39: Mid-Mount: Attaching short mounting ears to models 5320-48P/T and
5320-24P/T
Figure 40: Mid-Mount: Attaching mounting ears to 5320-24T-4X-XT and
5320-24T-24S-4XE-XT models
2. With the mounting brackets attached, position the switch between the vertical rack
rails of the 19-inch rack.
Install Your Switch Install the Device in a Rack
ExtremeSwitching 5320 Series Hardware Installation Guide 65
