Ducker Priority Tutorial
Insert a ducker using one of the
Double-click the block,
then click Ducker
Right-click the box to open context
menu, then click Insert Ducker
-or-
methods at right.
Once inserted, double-click on the
ducker block to open the Ducker
Configuration dialog box. The
Enable Source Mic/Line box is
checked.
Set a ducking source
The first inserted mic ducks all selected targets.
1. Insert a ducking processor to mic 1.
2. Open the ducker configuration box and select the desired duck targets (see figure72).
In this example post-matrix 1 through 4 are the ducking targets.

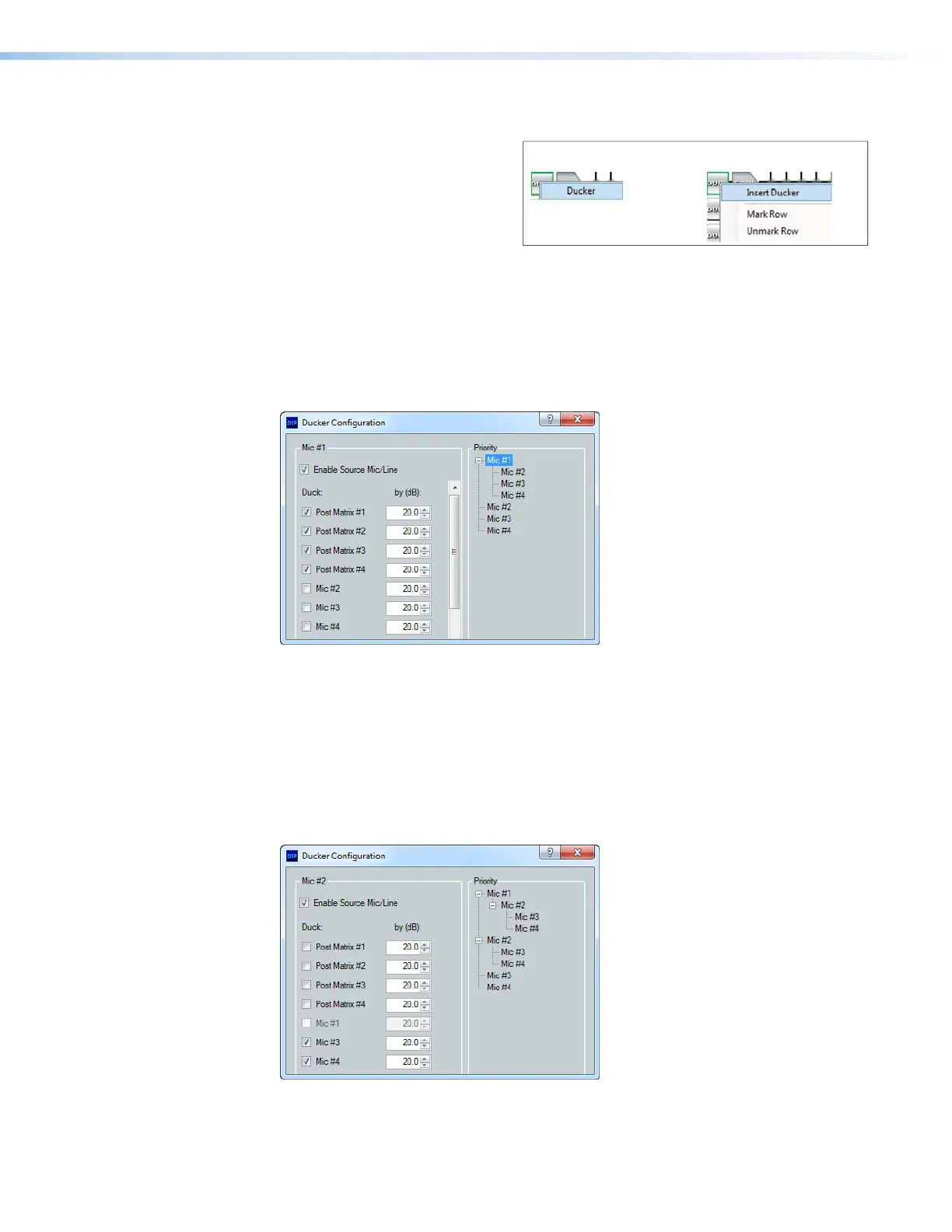

Figure 72. Set a Ducking Source
Any signal on mic 1 that exceeds the ducking threshold now ducks mics2 through 4.
Set an additional ducking source
The ducking processor can also have an additional input duck other targets using the
priority feature. The second input ducks its selected duck targets, and can also be
ducked by the first ducking source.
1. Insert a ducking processor on the additional ducking source. In this example, mic 2 is
the second ducking source (see figure73).
Figure 73. Set a Second Ducking Source
As was shown in figure72, mic 1 is the first source. Since it was selected as a ducking
target, mic 1 is not available as a target of mic 2.
