DTP CrossPoint 84 Series Matrix Switchers • HTML Operation 132

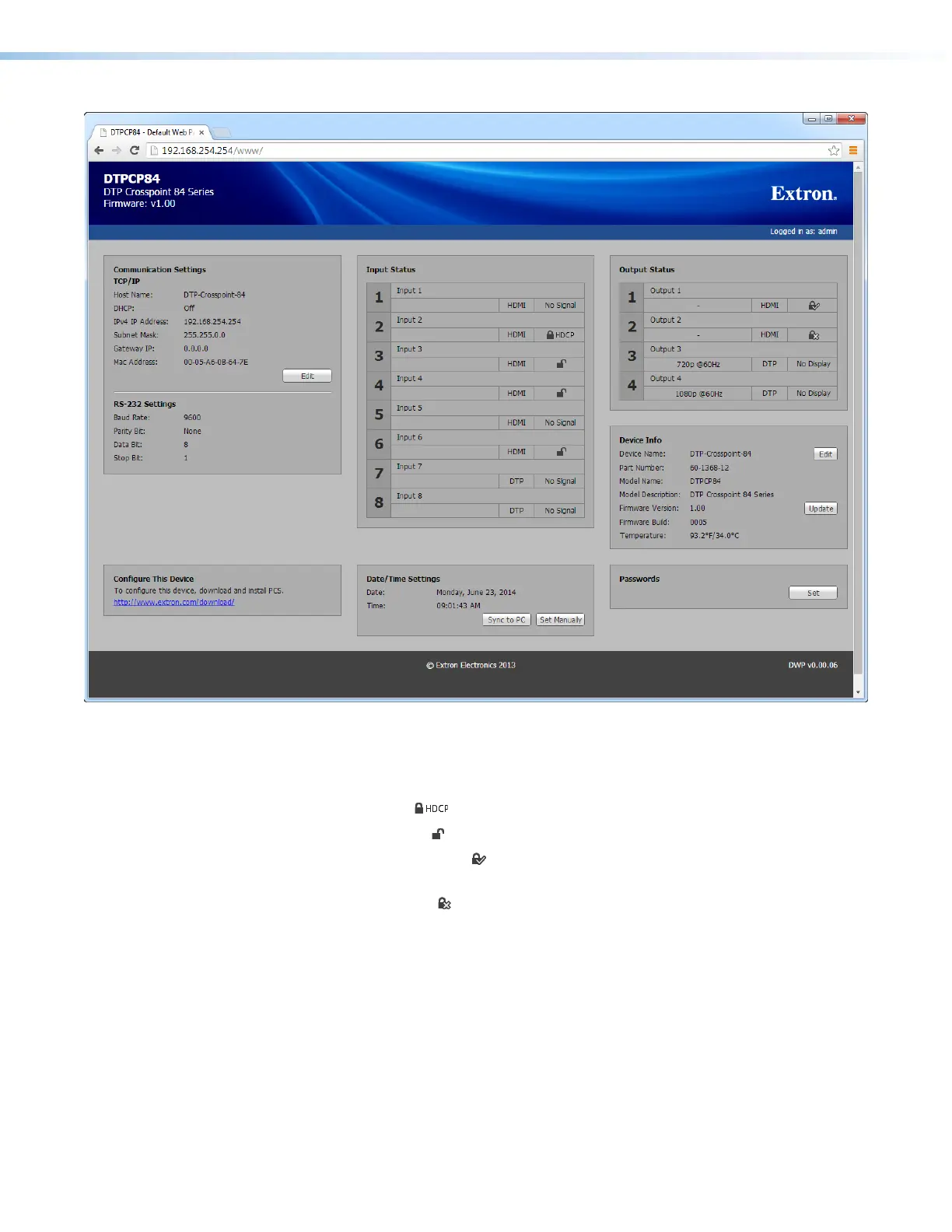

Figure 77. Built-in HTML Page
The input status panel displays the connection status of each input. The output status panel
displays the selected resolution of scaler outputs 3 and 4. The various lock icons have the
following meanings:
Input Status locked (
)
Input Status unlocked ( )
Output Status locked-check ( )
Output Status locked-X ( )
— The input is HDCP compliant
— The input is not HDCP compliant
— The connected display is HDCP compliant and an
encrypted signal is routed to it
— The connected display is HDCP compliant but
currently not encrypted
