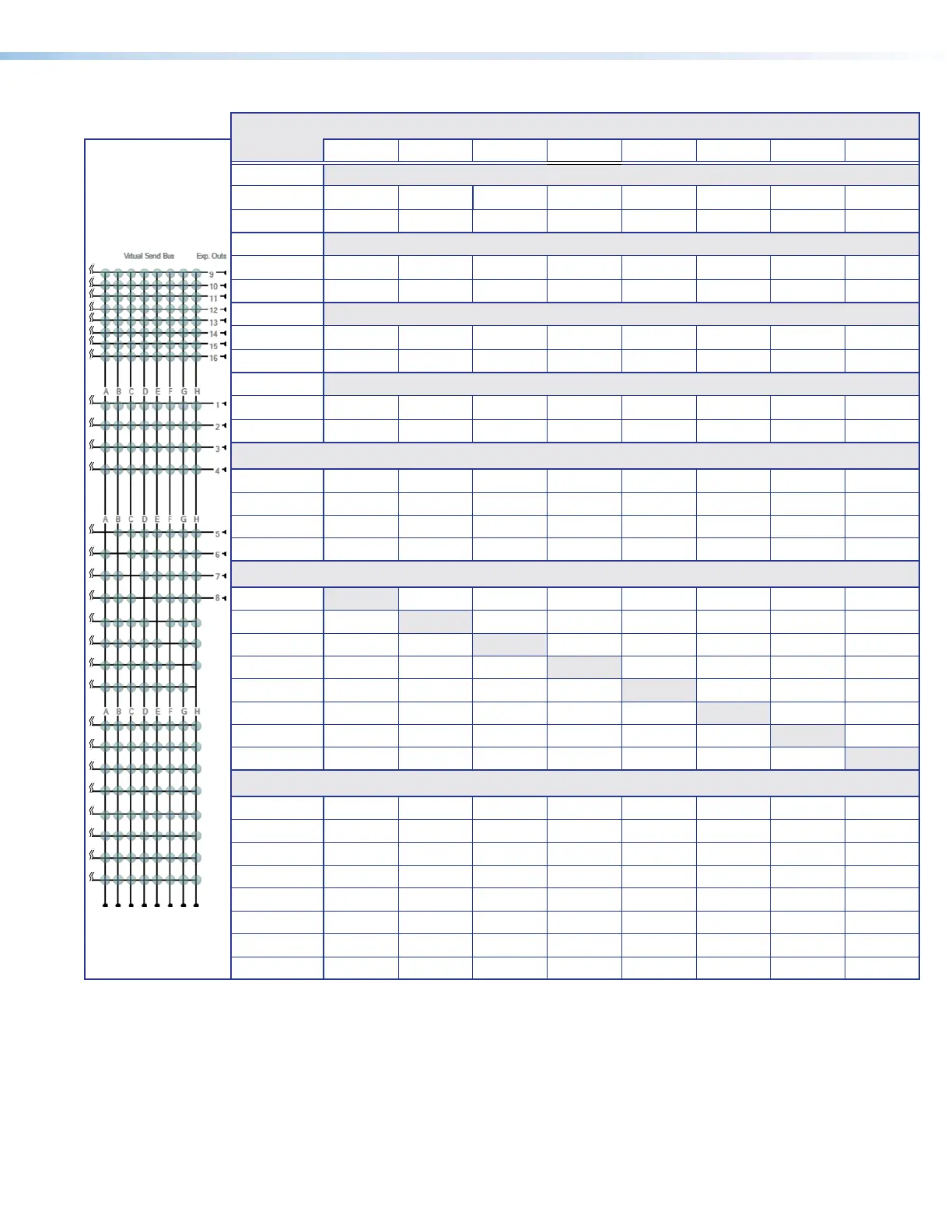

DTP CrossPoint 84 Series Matrix Switchers • DSP SIS Commands 141
Switcher-to-virtual-send-bus mixer block (see figure40,
M
on page80)
Mixer blocks,
part 2
LL
LLLL
LLLL
MM
MMMM
MMMM
NN
NNNN
NNNN
OO
OOOO
OOOO
V. Send A V. Send B V. Send C V. Send D V. Send E V. Send F V. Send G V. Send H
Output 1
Left
20008 20009 20010 20011 20012 20013 20014 20015
Right
20108 20109 20110 20111 20112 20113 20114 20115
Output 2
Left
20208 20209 20210 20211 20212 20213 20214 20215
Right
20308 20309 20310 20311 20312 20313 20314 20315
Output 3
Left
20408 20409 20410 20411 20412 20413 20414 20415
Right
20508 20509 20510 20511 20512 20513 20514 20515
Output 4
Left
20608 20609 20610 20611 20612 20613 20614 20615
Right
20708 20709 20710 20711 20712 20713 20714 20715
Mic-to-virtual-send-bus mixer block (
M
)
Mic in 1
20808 20809 20810 20811 20812 20813 20814 20815
Mic in 2
20908 20909 20910 20911 20912 20913 20914 20915
Mic in 3
21008 21009 21010 21011 21012 21013 21014 21015
Mic in 4
21108 21109 21110 21111 21112 21113 21114 21115
Virtual returns-to-virtual-send-bus mixer block (
N
)
V. rtn A
21209 21210 21211 21212 21213 21214 21215
V. rtn B
21308 21310 21311 21312 21313 21314 21315
V. rtn C
21408 21409 21411 21412 21413 21414 21415
V. rtn D
21508 21509 21510 21512 21513 21514 21515
V. rtn E
21608 21609 21610 21611 21613 21614 21615
V. rtn F
21708 21709 21710 21711 21712 21714 21715
V. rtn G
21808 21809 21810 21811 21812 21813 21815
V. rtn H
21908 21909 21910 21911 21912 21913 21914
Expansion inputs-to-virtual-send-bus mixer block (
O
)
Exp. in 1
22008 22009 22010 22011 22012 22013 22014 22015
Exp. in 2
22108 22109 22110 22111 22112 22113 22114 22115
Exp. in 3
22208 22209 22210 22211 22212 22213 22214 22215
Exp. in 4
22308 22309 22310 22311 22312 22313 22314 22315
Exp. in 5
22408 22409 22410 22411 22412 22413 22414 22415
Exp. in 6
22508 22509 22510 22511 22512 22513 22514 22515
Exp. in 7
22608 22609 22610 22611 22612 22613 22614 22615
Exp. in 8
22708 22709 22710 22711 22712 22713 22714 22715
To Next Page
