DTC500 Series Card Printer/Encoders Troubleshooting Guide (Rev. 3.0)
157
Using the Overlay / Print Area (continued)
Step Procedure
2 When the card grid is first activated, a small black square will appear at its
default size of .2" x .2" / 5mm x 5mm and at its default location in the lower left-
hand corner (0,0). (Note: This square represents the first defined area.)
• Determine the area size by actually printing a card, and looking at it in the
same orientation as when it exits the Printer.

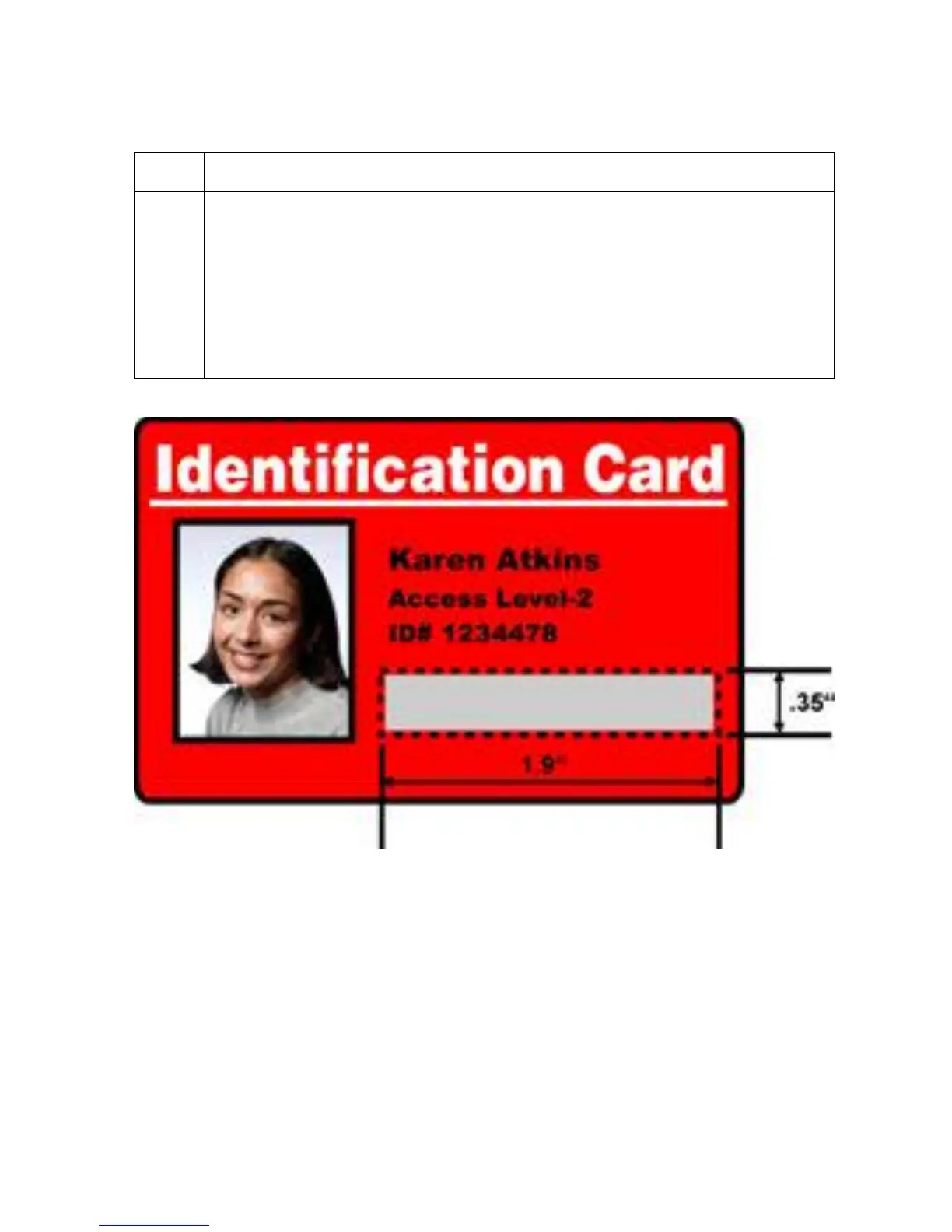

3 Measure the total size of the desired area, and enter those dimensions into the
Dimension boxes. (Note: The minimum size an area is .2" x .2" / 5mm x 5mm.)
Continued on the next page
