FARGO electronics DTC500 Series - Reviewing the Sensor Layout on Ribbon Sensor Array

RESTRICTED USE ONLY FARGO Electronics, Inc.
DTC500 Series Card Printer/Encoders Troubleshooting Guide (Rev. 3.0)
186
Reviewing the Sensor Location and Voltages (continued)
Sensor Location Pin Low Range VDC High Range VDC
Print Station
Open Sensor
J6 4 Unblocked .17 - .9 Blocked 3.0 – 3.3
Print TOF Sensor J31 4 Unblocked .17 - .9 Blocked 3.0 – 3.3
Ribbon Encoder J6 12 Unblocked .17 - .9 Blocked 3.0 – 3.3
Ribbon Sensor
(5)
J16 3
Covered 

 0.9
Uncovered 3.5 – 5.0
Ribbon Sensor
(4)
J16 5
Covered 

 0.9
Uncovered 3.5 – 5.0
Ribbon Sensor
(3)
J16 11
Covered 

 0.9
Uncovered 3.5 – 5.0
Ribbon Sensor
(2)
J16 7
Covered 

 0.9
Uncovered 3.5 – 5.0
Ribbon Sensor
(1)
J16 9
Covered 

 0.9
Uncovered 3.5 – 5.0

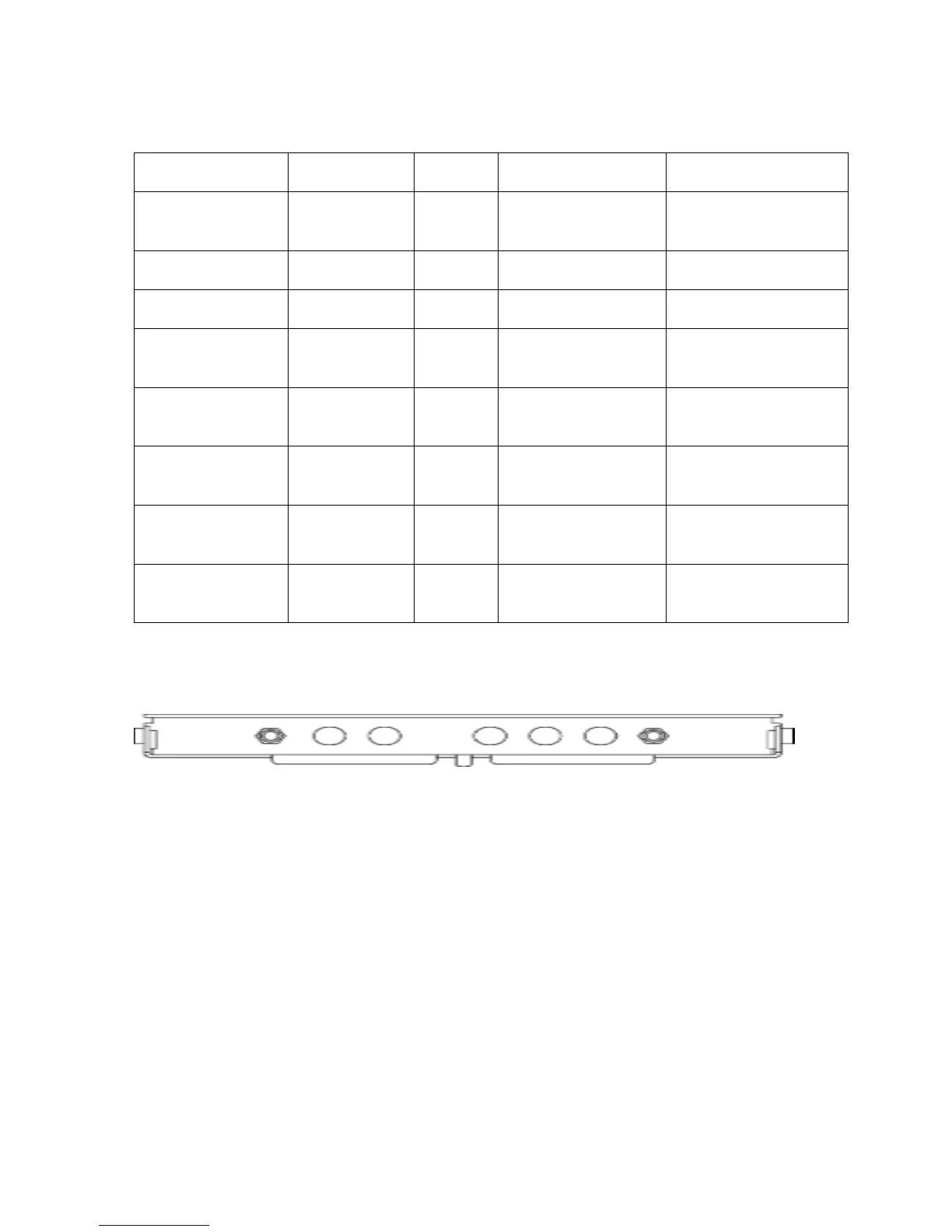

Reviewing the Sensor Layout on Ribbon Sensor array
(5) (4) (3) (2) (1)
