RESTRICTED USE ONLY FARGO Electronics, Inc.
DTC500 Series Card Printer/Encoders Troubleshooting Guide (Rev. 3.0)
31
Replacing the Main Board (D850426) (Continued)

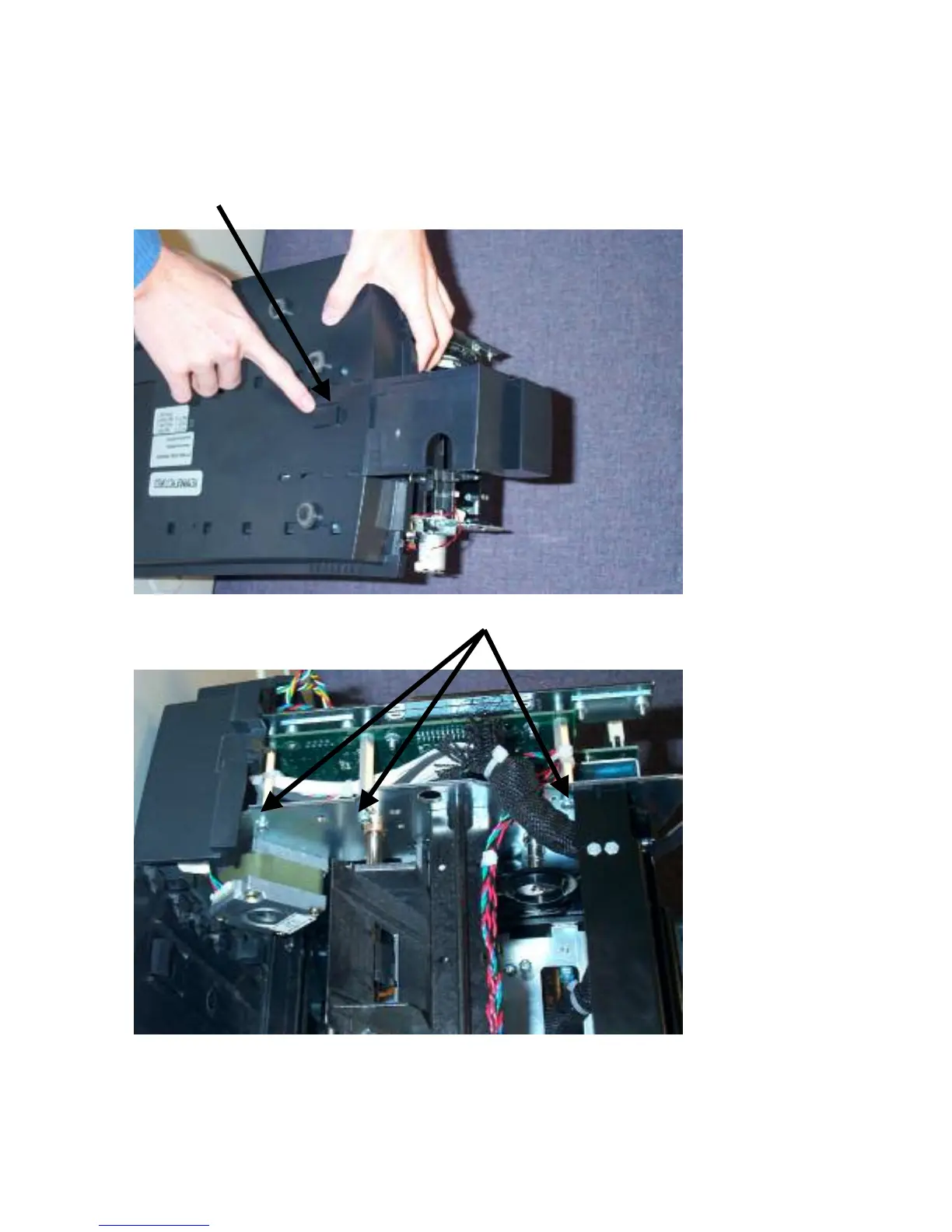

This is a view of the bottom of the discharge end of the Printer. (Note: This shows the
release tab from Step 6 in the previous procedure in this section.)
This is the discharge end of the Printer. The arrows point to the screws described in Step 8.
To Next Page
