RESTRICTED USE ONLY FARGO Electronics, Inc.
DTC500 Series Card Printer/Encoders Troubleshooting Guide (Rev. 3.0)
59
Replacing the Printhead Assembly (850102) (continued)

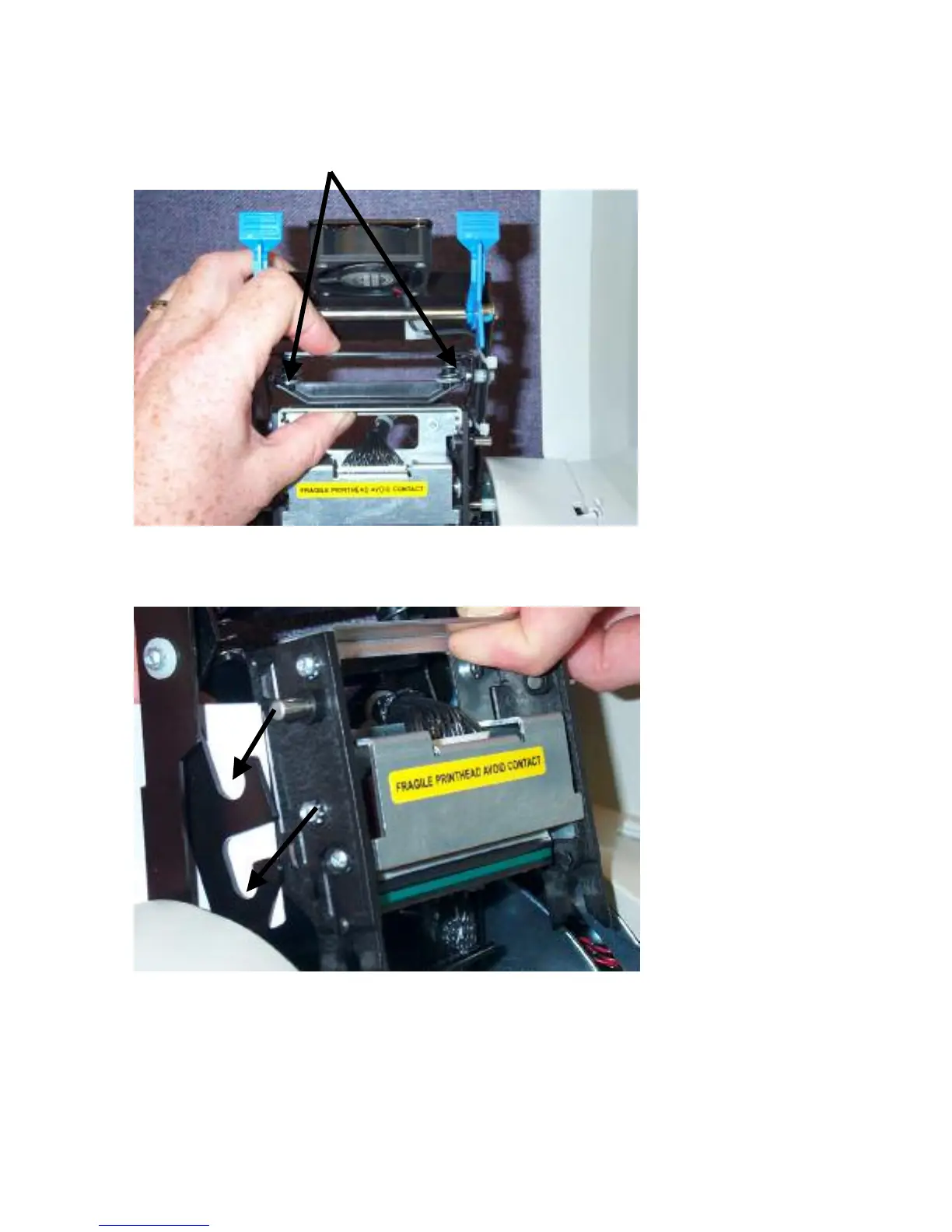

Compress these 2 springs to remove the Printhead, as shown below.
These arrows (below) show how the Printhead fits into the mounting bracket.
