FARGO electronics DTC510 - Reviewing the ISO Track Locations; Reviewing the Sample String

RESTRICTED USE ONLY Fargo Electronics, Inc.
DTC500 Series Card Printer/Encoders User Guide (Rev. 5.0)
195

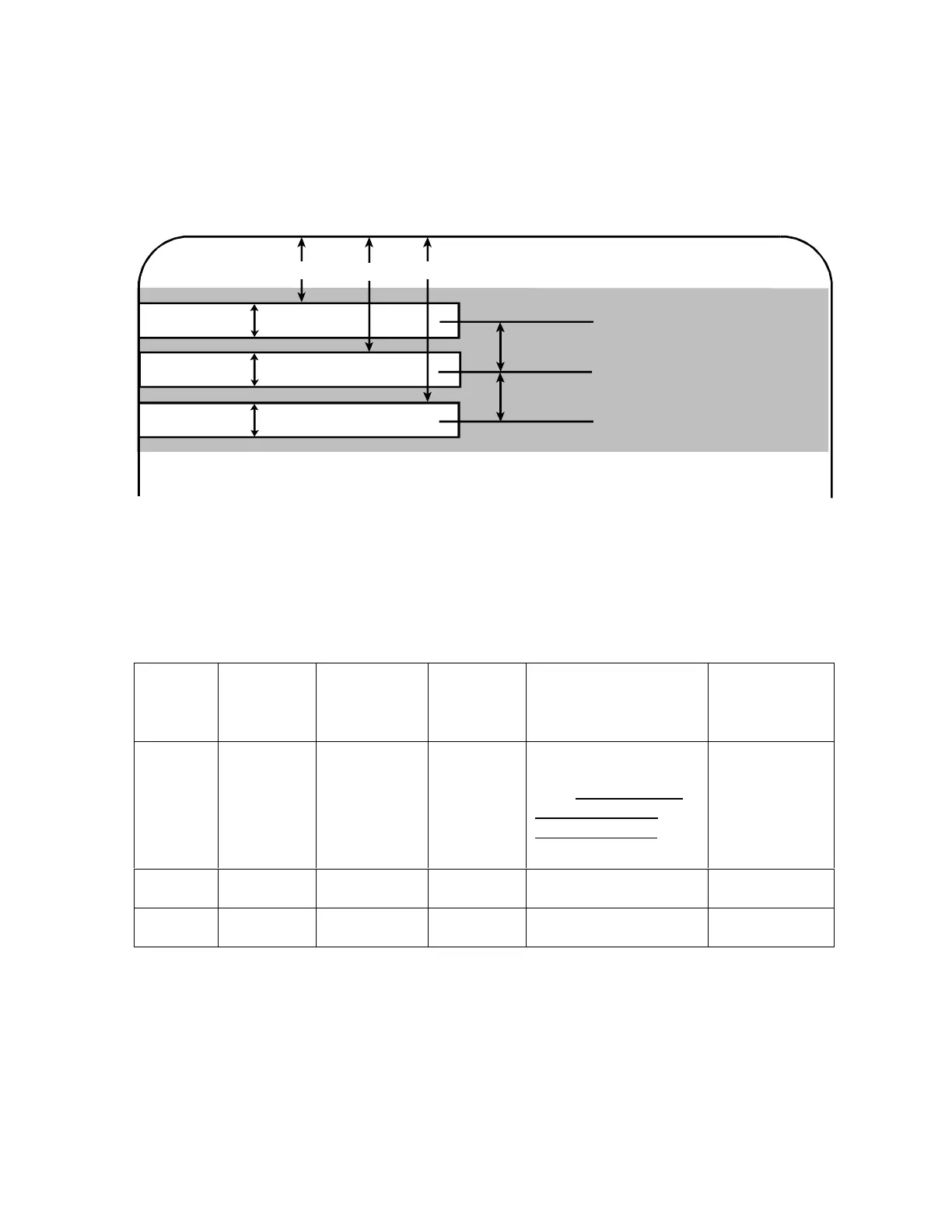

Reviewing the ISO Track Locations
The magnetic Encoding Module encodes onto tracks in accordance with an ISO 7811-2
Magnetic Stripe. For track locations, review the display below.
TRACK1 0.110"
TRACK2 0.110"
TRACK3 0.110"
0.130"
0.140"
0.223" 0.353" 0.493"
Reviewing the Sample String
 Sending Data to Track 1: ~1%JULIEANDERSON^1234567890?
 Sending Data to Track 2: ~2;1234567890987654321?
 Sending Data to Track 3: ~3;1234567890987654321?
Track Start
Sentinel
End
Sentinel
Field
Separator
Valid Characters Maximum
Number of
Characters
Track 1
% ? ^ ASCII 32-95
(See Reviewing the
ASCII Code and
Character Table on
page 197.)
78
Track 2
; ? = ASCII 48-63 39
Track 3
; ? = ASCII 48-63 106
