6 Positioning mode
172 Festo – GDCP-CMMS/D-FW-EN – 1404NH – English
6.9.2 Jog mode via Festo Configur ation Tool (FCT)
The jog mode can be manually controlled via the interfaces “Jog<< (–)/Jog>> (+)” in the FCT window “Pro-
ject output” in the online tab “Manual move”.
2 3
1
1 Manual Move
2 <<: Jog in negative direction
3 >>: Jog in positive direction

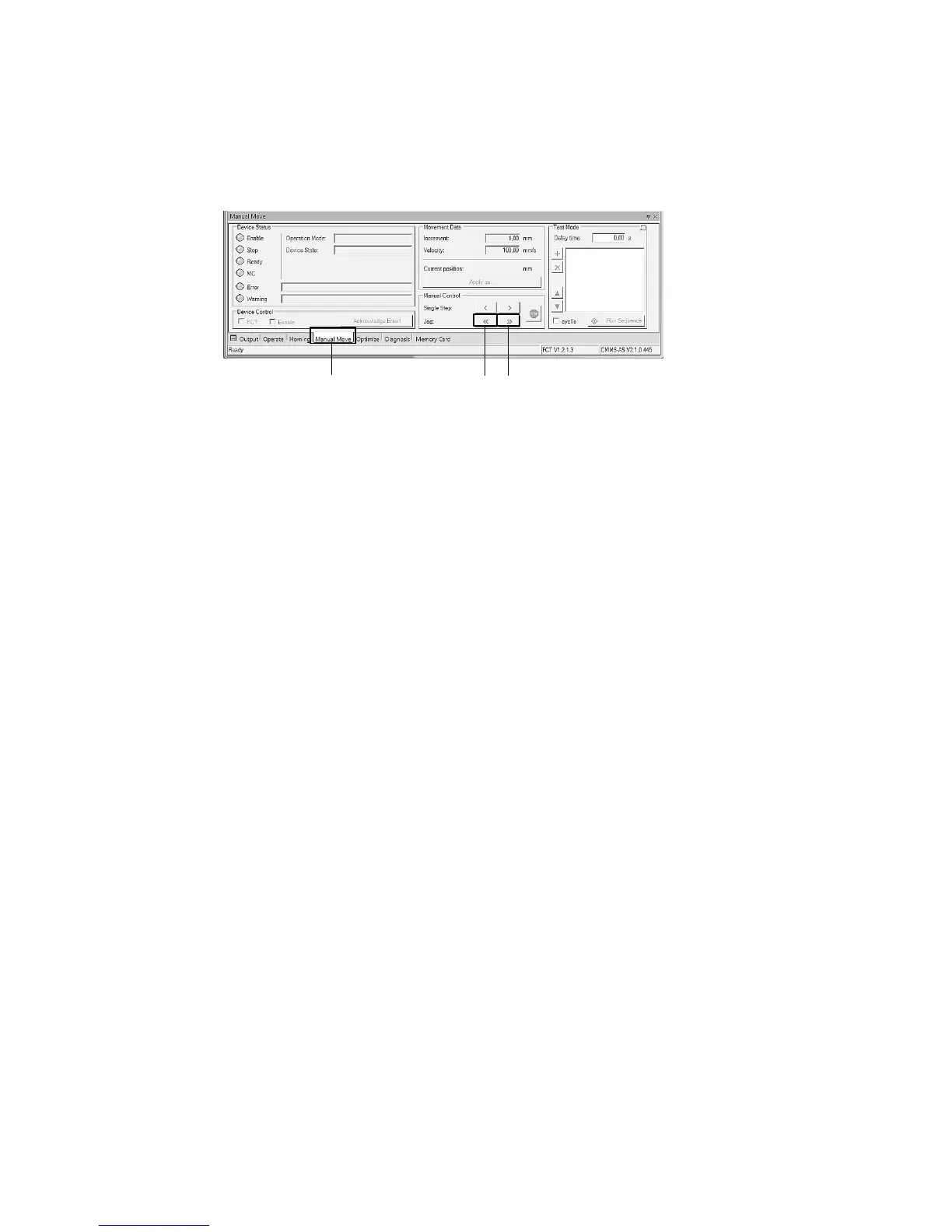

Fig. 6.28 Manual jog via Festo Configuration Tool ( FCT)
