6 Positioning mode
174 Festo – GDCP-CMMS/D-FW-EN – 1404NH – English

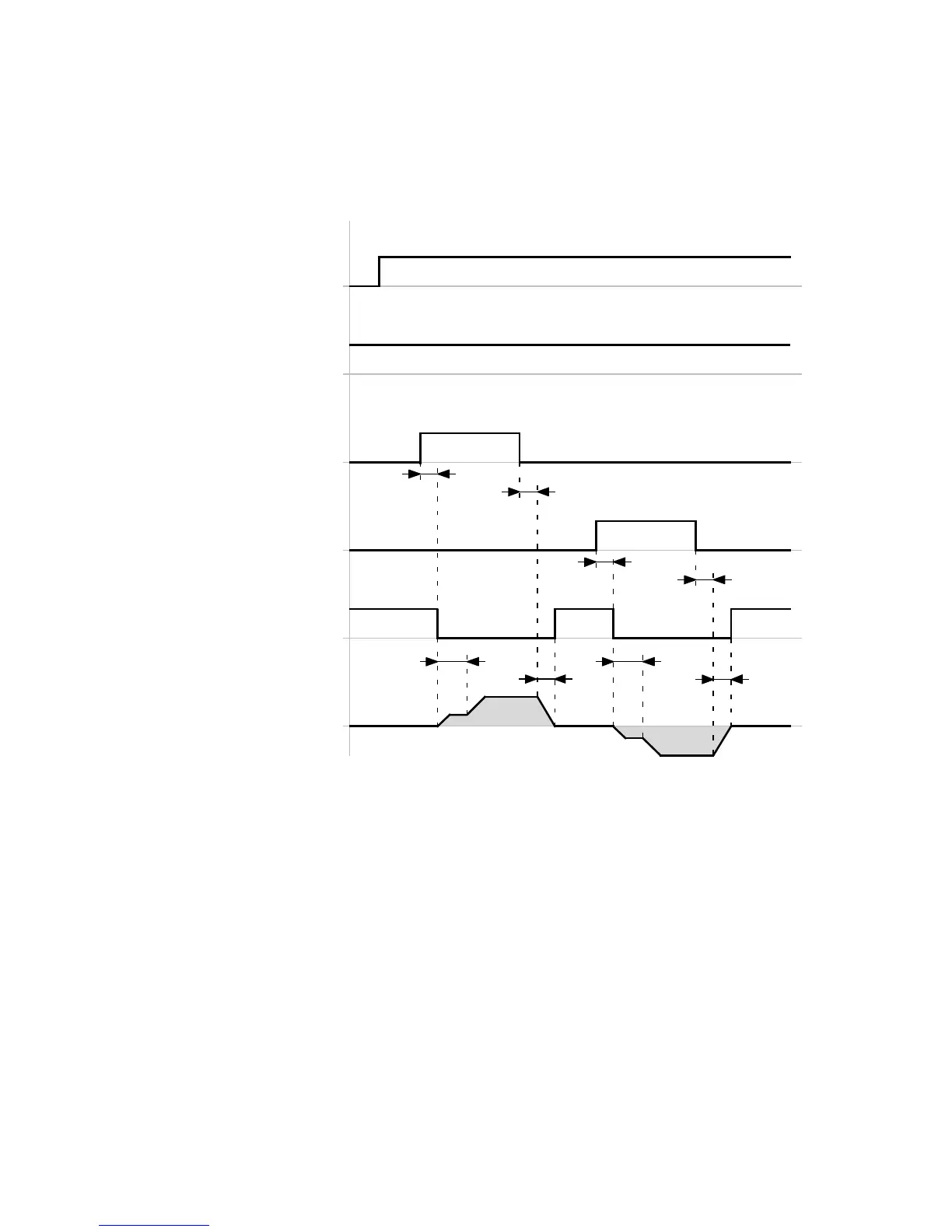

6.9.4 Timing diagram: Jog travel via jog+/jog–
Timing diagram: Individually actuating jog+/jog–
The timing diagram shows the course of jog travel with separate actuation of jog+/jog–.
Stop
(DIN13)[X1.15]
 Jog+
(DIN10)[X1.3]
 Jog–
(DIN11)[X1.16]
Motion complete
(DOUT1)[X1.12]
Controller ready for operation
(DOUT0)[X1.24]
t1
t4 t4
t3 t3
Speed
Jog+
Jog–
t1
t2
t2
t1 ≤ 5ms
t2 ≤ 5ms
t3 = … ms ( FCT: Dependent on the crawl
duration  page 176)
t4 = … ms (FCT: Dependent on the jog
deceleration ramp)
Fig. 6.30 Timing diagram: Jog travel via jog+/jog–
