9 Opera tional functions
202 Festo – GDCP-CMMS/D-FW-EN – 1404NH – English
9.3 Analogue monitor
9.3.1 Function: Analogue monitor
Through the analogue monitor ( AMON0)[X1.17], the motor c ontroller can provide various setpoint/ac-
tual values, for example, to a controller or oscilloscope as an analogue output signal.
Output analogue monitor through digital output
CMMS/CMMD
Analogue output
Analogue monitor
Control section
X1
X1.1
X1.2
Monitor signal:
0…10 V
Setpoint/actual v alues:
– Speed
– Position
– Current
–….
Fig. 9.5 Overview: Output analogue monitor through digital output
9.3.2 Connection: Analogue output

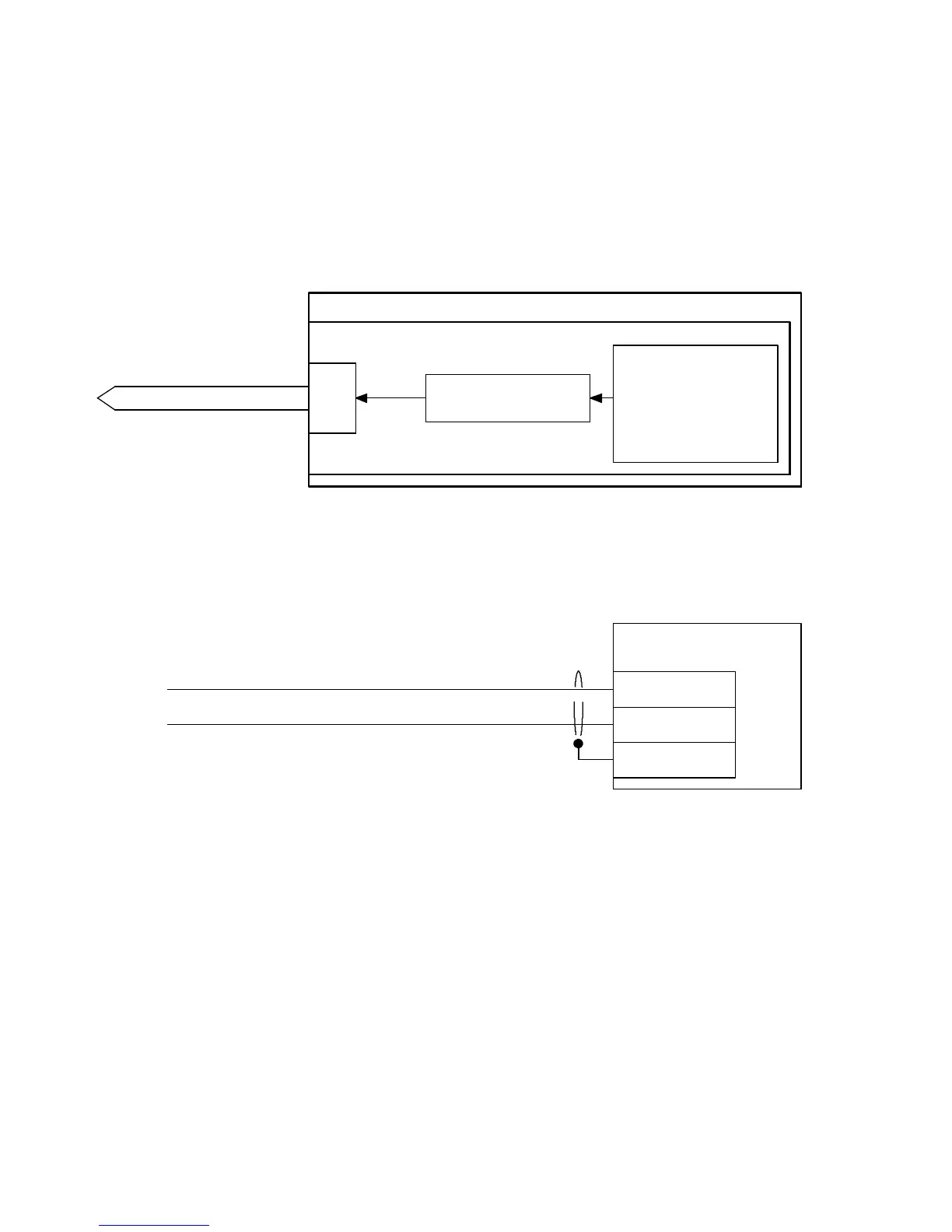

The c onnection diagram shows the analogue output for the analogue monitor.
CMMS/CMMD
14
Analogue load “Analogue monitor” (AGND)
Analogue monitor (AMON)
X1/X1.1/X1.2
17
1
Screening (SG N D)
Fig. 9.6 Connection: Analogue output
