5.2.8 Reading/writing/saving the parameter file (.DCO)
(memory card >>/<< motor controller)
The process for transferring a parameter file (.DCO) c an be started via the following buttons or c hec k
boxes.
4
6
2
CMMS/CMMD
Perman-
ent
memory
3 After restart ...
2 Memory
card
Parameter
file (.DCO)
X5
6 Controller>>SD
4 SD>>Controller
1 Save
Main
memory
6
1
5 SD( ...)>>Controller
Festo Configuration Tool (FCT)
3
1 Store
In the motor c ontroller, the current
parameter set is written from the main
memory and saved to the permanent
memory.
2 Memory Card
3 Read from SD after S tartup:
If the check box is active (check mark set), a
search is conducted on the memory card for
the parameter file (.DCO) designated
“Latest” after every restart (Power ON/FCT:
Restart controller); when located, it is loaded
automatic ally into the main memory of the
motor controller.
4 SD>>Controller (SD>>Controller):
A search is conducted on the memory card
for the parameter file (.DCO) designated
“Latest”; when lo cated, it is loaded
automatic ally into the main memory of the
motor controller.
5 SD(latest)>>Controller:
A search is conducted on the memory card
for the parameter file (.DCO) with the latest
date; when located, it is loaded
automatic ally into the main memory of the
motor controller.
6 Controller>>SD:
The latest parameter set of the motor
controller is written to the memory card as a
parameter file (.DCO).

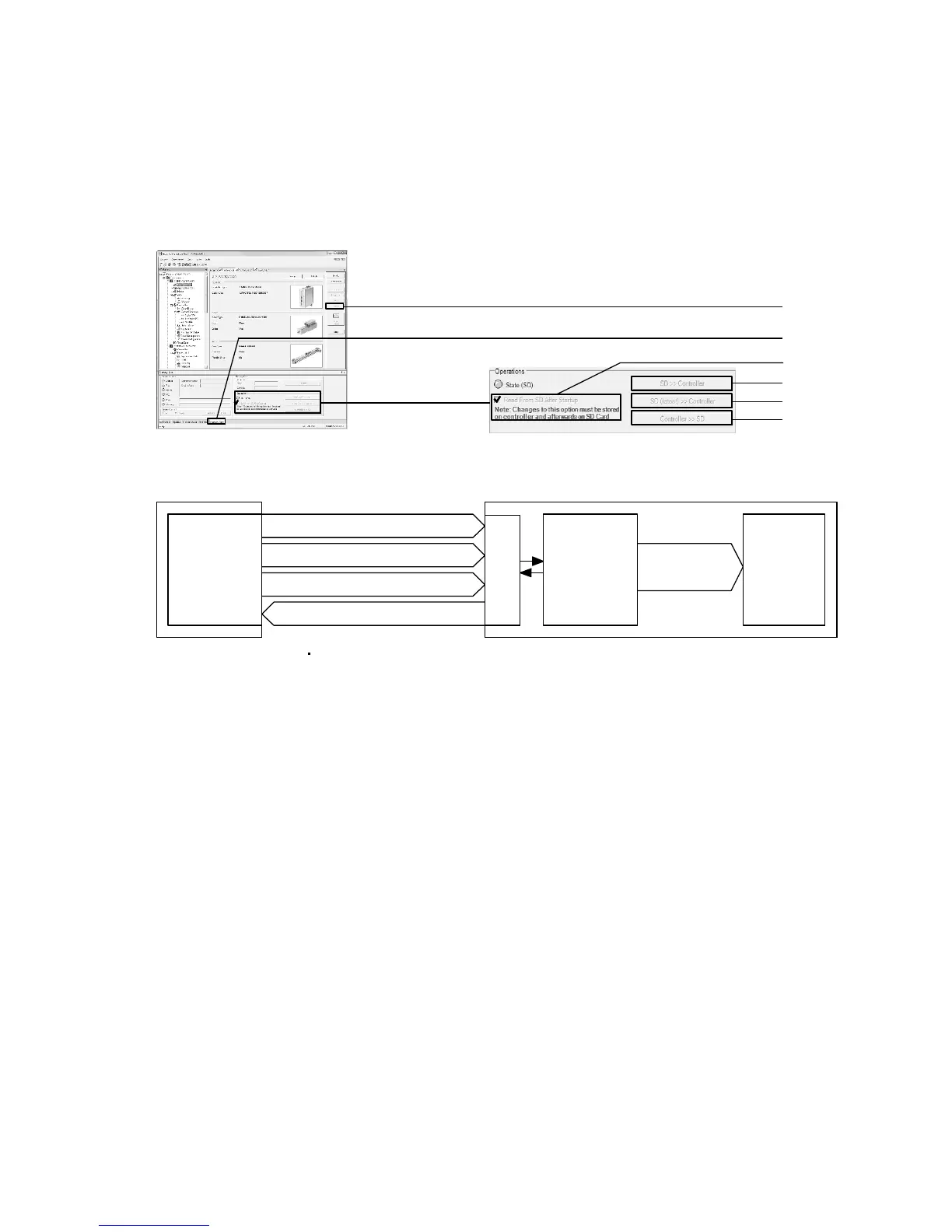

Fig. 5.8 Overview: Downloading/uploading the parameter file (.DCO) (memory card >>/<< motor
controller)
