C RS485 serial interface
Festo – GDCP-CMMS/D-FW-EN – 1404NH – Engli sh 241
C.2 Configure RS485 interface in the Festo Configuration Tool (FCT)
1. Mark the “Application data”
button in the project tree.
2. Press the “Operating mode
selection” button in the work
space.
3. Select “RS485” as control
interface. ( Ac knowledge the
change with “OK”)
4. Mark the “Digital I/O” button in
the project tree.
5. Deactivate the “ac tive” control
field in the “Mode selection via
DI N9 and DIN12” field.
6. Press the “Download” button in
the work space to load the new
configuration in the motor
controller.
7. Press the “Save” button in the
work space to save the new con-
figuration perma nently.
8. Produc e a reset to ac tivate the
configuration:
– FCT: Press the “Restart
controller” button
([Menu bar] [Component]
[Restart controller]).
– Switch the power supply off
and on.
12
7
4
5
6
3
8

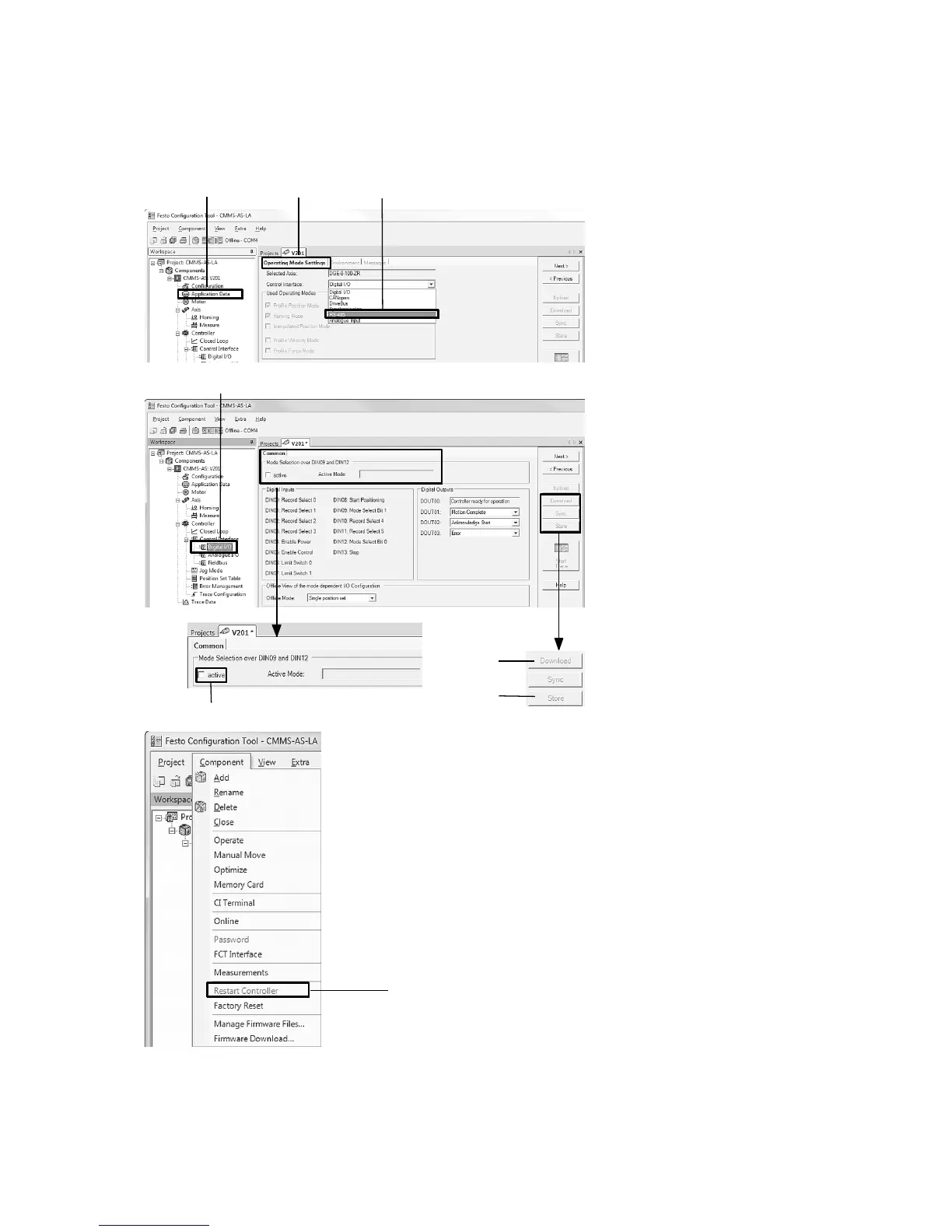

Fig. C.1 Configure RS 485 interface in the FCT
