Festo CMMS-AS Series User Manual

3 Control interfaces
Festo – GDCP-CMMS/D-FW-EN – 1404NH – Engli sh 47
3.1.2 Motor controller CMMS-ST-C8-7-G2
X1
X5
X4
EXT
X10
– DeviceNet
3)
–PROFIBUSDP
3)
–CANopen
–DriveBus
Fieldbus interfaces :
–RS485
Digital interfaces:
– Digital inputs DIN0…13
– Digital outputs DOUT0…3
Synchronisation interfaces:
Encoder input:
– Incremental signals A/#A/B/#B/N/#N
– Pulse/direction signals CLK/#CLK/DIR/#DIR
– Forward/reverse signals CW/#C W/CCW/#CCW
Encoder output:
– Incremental signals A/#A/B/#B/N/#N
Analogue interfaces:
– Analogue inputs AIN0/#AIN0
– A nalogue output AMON0
5V
2)
24 V
1)
±10V
0…10 V
1) HTL signal (high transistor logic): High signal = 24 V
2) TTL signal (transistor-transistor logic): High signal = 5 V
3) Interface module CAMC-... (optional)

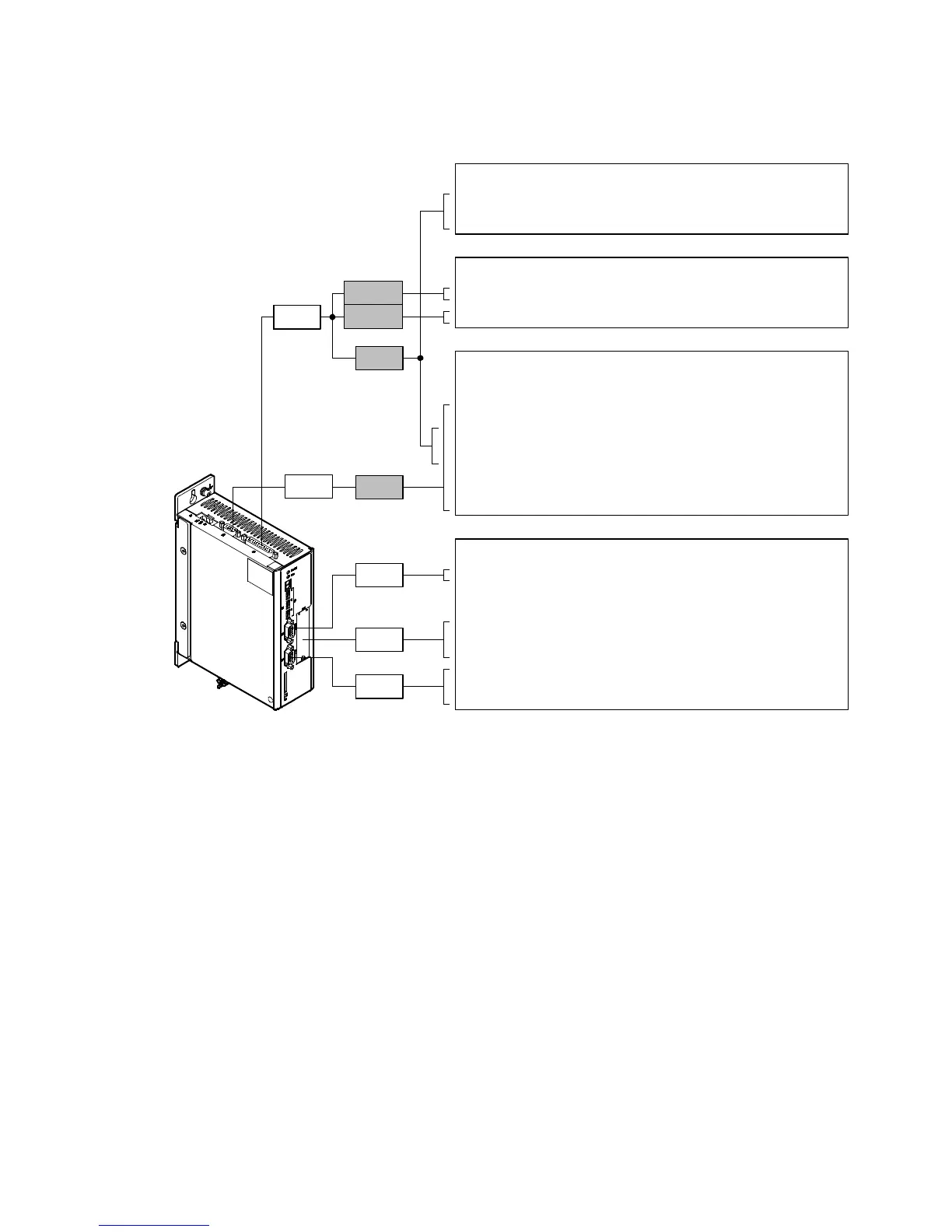

Fig. 3.2 Overview: Digital, analogue, synchronisation and fieldbus interfaces
