A Technical appendix
Festo – P.BE-MPA-E N – 1309f – English 141

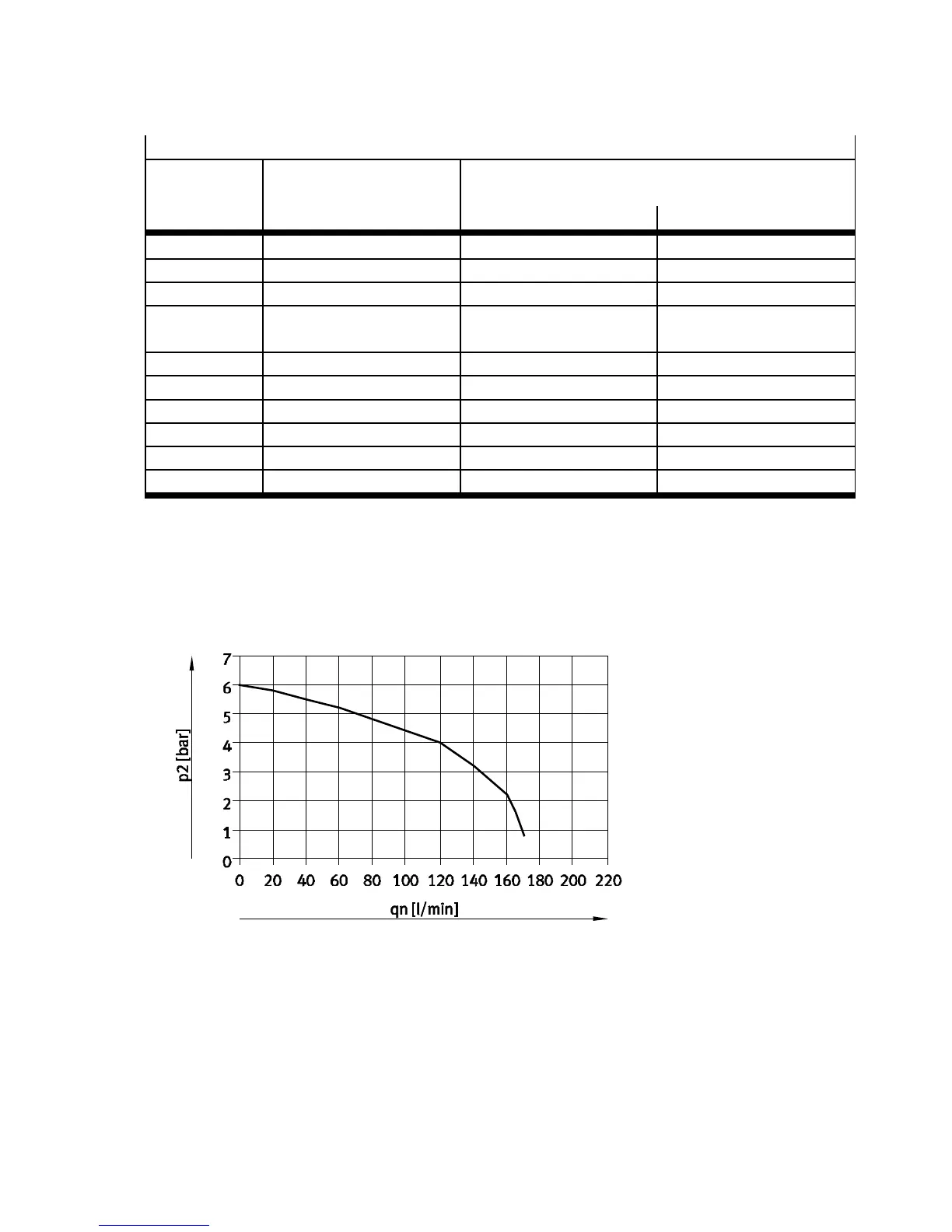

Valve switching times MPA2 (width 20 mm)
Ident. code
1)
Valve Valve switching times [ms]
(Measuring method 0 ... 10 % as per F N 942032)
On/changeover Off
M 5/2-way, monostable 15 28
MS 5/2-way, monostable 8 36
J 5/2-way, bistable 9/22 —
B 5/3 directional control
valves, pressurized
11/23 46
G 5/3-way, c losed 10/21 40
E 5/3-way, exhausted 11/23 47
H, K, N 2x 3/2-way 8 28
HS, KS, NS 2x 3/2-way 12 25
W, X 1x 3/2-way 13 22
D, I 2x 2/2-way 7 25
1) Ident. code of the valve sub-base
Tab. A . 1 0 Tec h nical data: valve switching times M PA2
Pressure regulator plates
P pressure regulator MPA1
1
2
1 Output pressure 2 Flow rate
Fig. A.6 Diagram on size MPA1 of the P pressure regulator (ident. code: PF and PA): flow as a function
of the output pressure
