A Technical appendix
142 Festo – P.BE-MPA-EN – 1309f – English
B pressure regulator MPA1
1
2
1 Output pressure 2 Flow rate

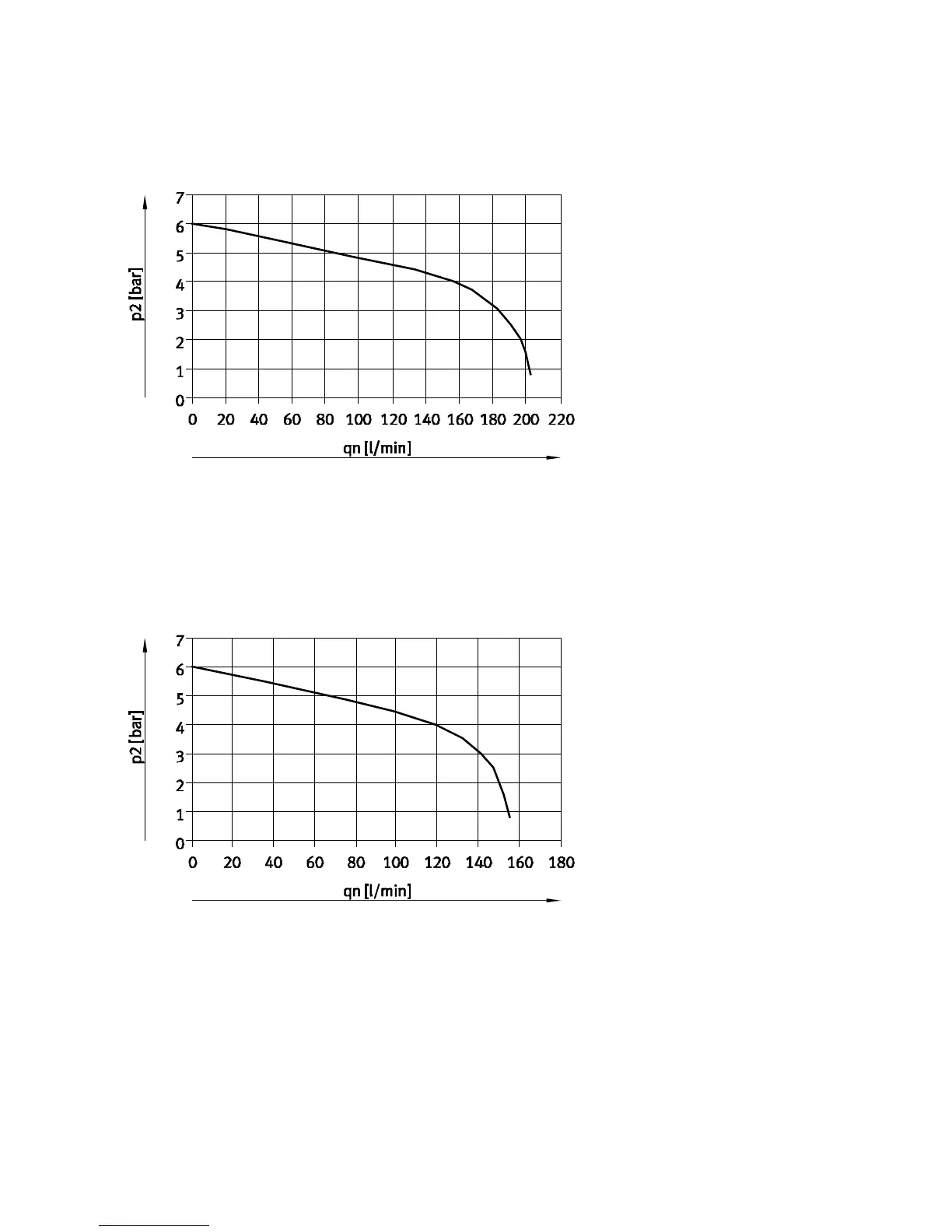

Fig. A.7 Diagram on size MPA1 of the B pressure regulator (ident. code: PH and PC): flow as a funct i-
on of the output pressure
A pressure regulator MPA1
1
2
1 Output pressure 2 Flow rate
Fig. A.8 Diagram on size MPA1 of the B pressure regulator (ident. code: PG and PB): flow as a functi-
on of the output pressure
