A Technical appendix
Festo – P.BE-MPA-E N – 1309f – English 143
P pressure regulator MPA2
1
2
1 Output pressure 2 Flow rate

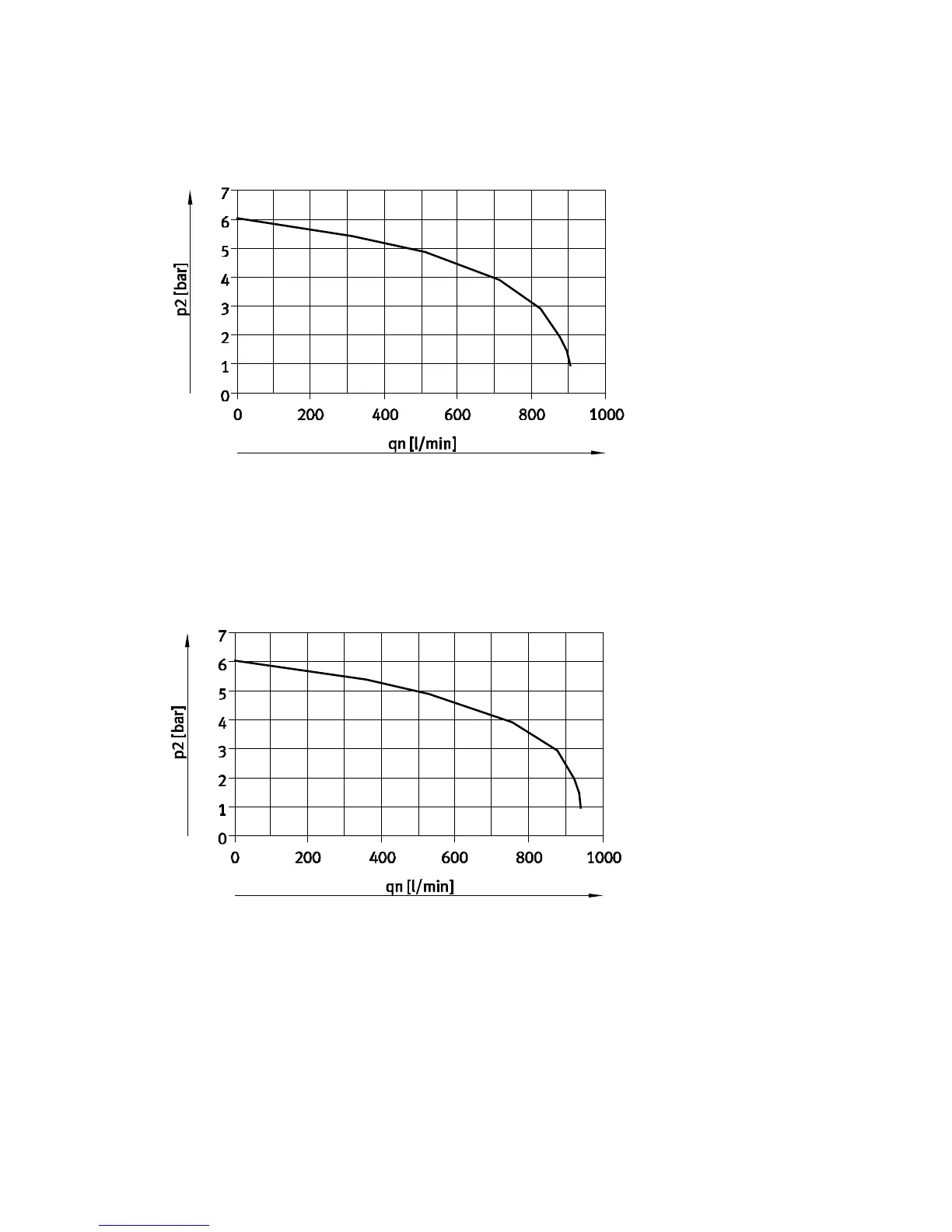

Fig. A.9 Diagram on size MPA2 of the P pressure regulator (ident. code: PF and PA): flow as a function
of the output pressure
B pressure regulator MPA2
1
2
1 Output pressure 2 Flow rate
Fig. A.10 Diagram on size MPA2 of the B pressure regulator (ident. code: PH and PC): flow as a functi-
on of the output pressure
