A Technical appendix
144 Festo – P.BE-MPA-E N – 1309f – English
A pressure regulator MPA2
1
2
1 Output pressure 2 Flow rate

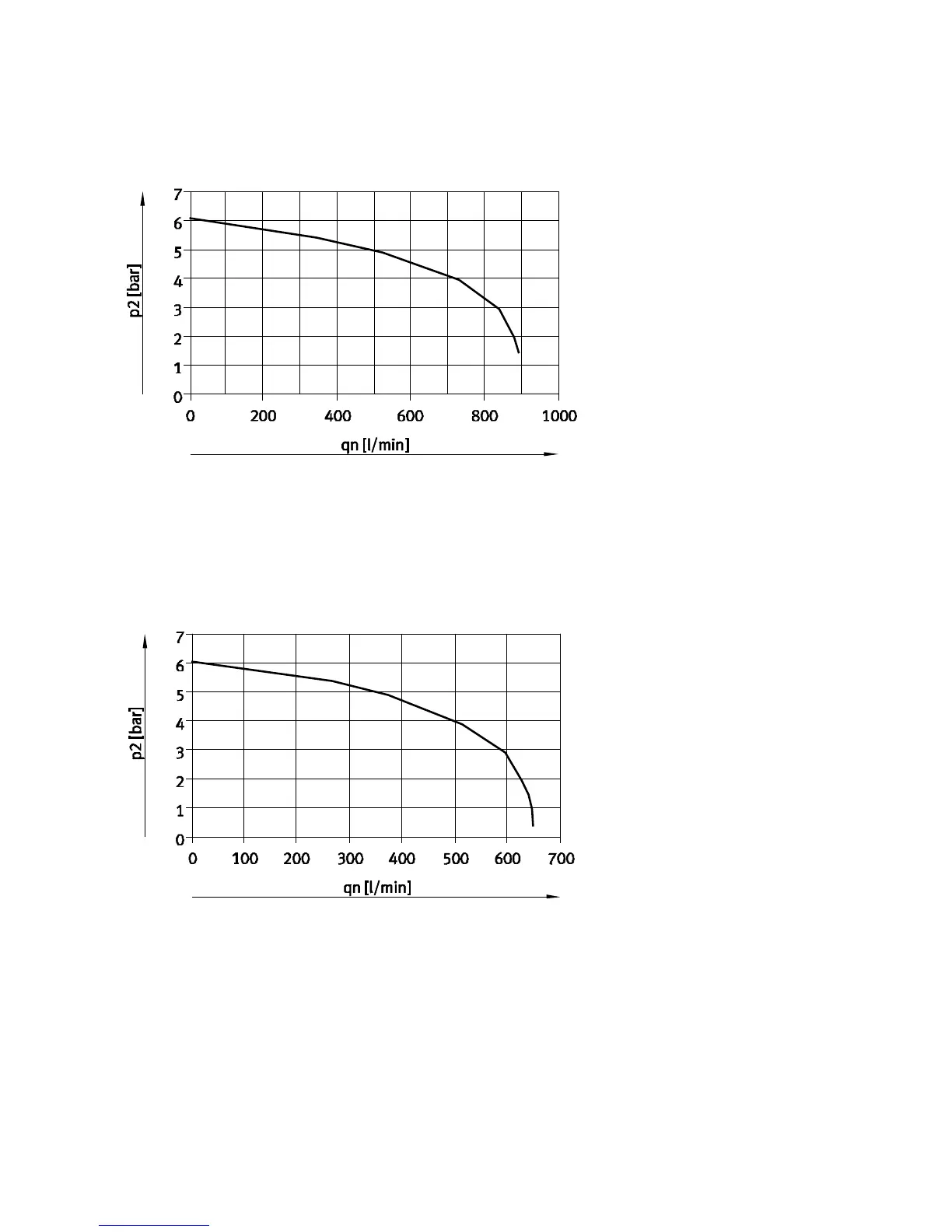

Fig. A.11 Diagram on size MPA2 of the B pressure regulator (ident. code: PG and PB): flow as a f uncti-
on of the output pressure
Reversible B pressure regulator MPA2
1
2
1 Output pressure 2 Flow rate
Fig. A.12 Diagram for size M PA2 of the reversible B pressure regulator (ident. code: PN and PL): Flow
as a function of the output pressure
