247
298 F1A0169
warn anybody nearby that the vehicle
is about to be lifted. They must stay
clear and not touch the vehicle until it is
back on the ground.
for versions equipped with self-
levelling pneumatic suspension, before
using the jack to raise the vehicle,

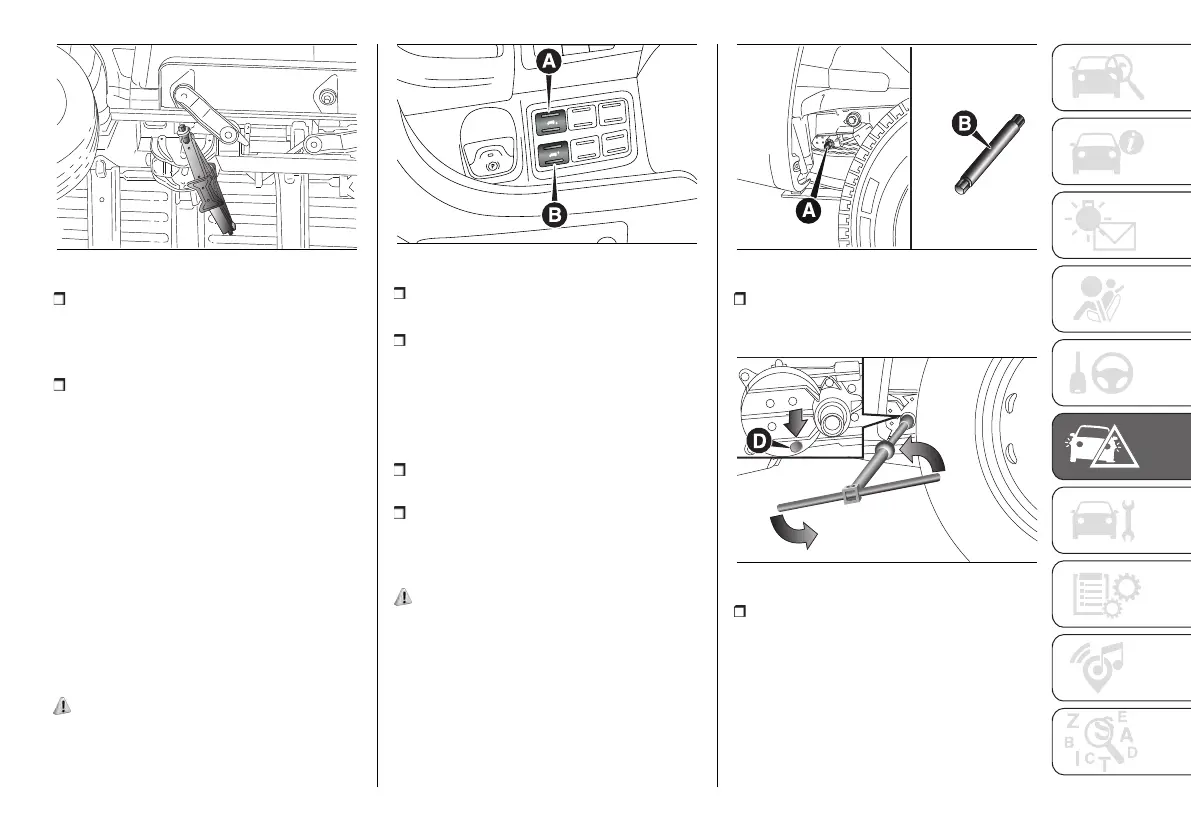

press the buttons (A) and (B) fig. 299
simultaneously for at least 5 seconds.
The operating mode for raising the
vehicle is activated: the LEDs on the
buttons come on constantly.
To exit this mode, press buttons (A)
and (B) simultaneously for another 5
seconds; both LEDs on the buttons
will go out and full system operation
will be restored. This mode deactivates
automatically when the speed of
approx. 5 km/h is exceeded.
199)
299 F1A0634
lift the vehicle.
After lifting the vehicle:
for all versions, access the rear right
wheel arch, operate the screw (A)
fig. 300 on the spare wheel retaining
device, using the supplied wrench
assembled correctly with the dedicated
extension (B) fig. 300;
turn the tool anticlockwise fig. 301 to
allow the spare wheel to descend;
continue turning anticlockwise
until the stop point, indicated by the
stiffening of the manoeuvre or a click
from the clutch present in the device;
200) 201)
300 F1A0171
after unwinding the whole cable of
the spare wheel lifting device, remove
the wheel from the vehicle;
301 F1A0421
undo the retaining knob (D) fig. 302
and free the wheel by sliding out the
support (E);
