Fike Clean Agent System - Appendix B; Container Data Tables

FIKE CORPORATION APPENDIX B
UL Ex4623 Industrial HFC-227ea System APPENDIX B / Page 1 of 2
FM 3010715 Manual P/N: 06-215 Rev: E
Revision Date: June, 2006
CONTAINER DATA TABLES
Container
Size
Container
Part Number
Fill Range
(lbs.)
Mounting
Position
Valve
Size
Approx.
Tare Weight
60 lb. 70-022 37 – 64 Upright - Horizontal 1” NPT 80 lbs.
100 lb. 70-088 58 - 100 Upright (Valve Up) 1” NPT 90 lbs.
Container
Size
Container
Part Number
Fill Range
(kg)
Mounting
Position
Valve
Size
Approx.
Tare Weight
27 kg 70-022 17.0 – 29.0 Upright - Horizontal 25 mm 36.3 kg
45 kg 70-088 26.5 – 45.0 Upright (Valve Up) 25 mm 40.8 kg
Container
Size
Dim. “A”
(inch)
Dim. “B”
(inch)
60 lb. 10-3/4” 28”
100 lb. 10-3/4” 38-3/4”
Container
Size
Dim. “A”
(mm)
Dim. “B”
(mm)
27 kg 273 711
45 kg 273 984
*All dimensions shown are approximate

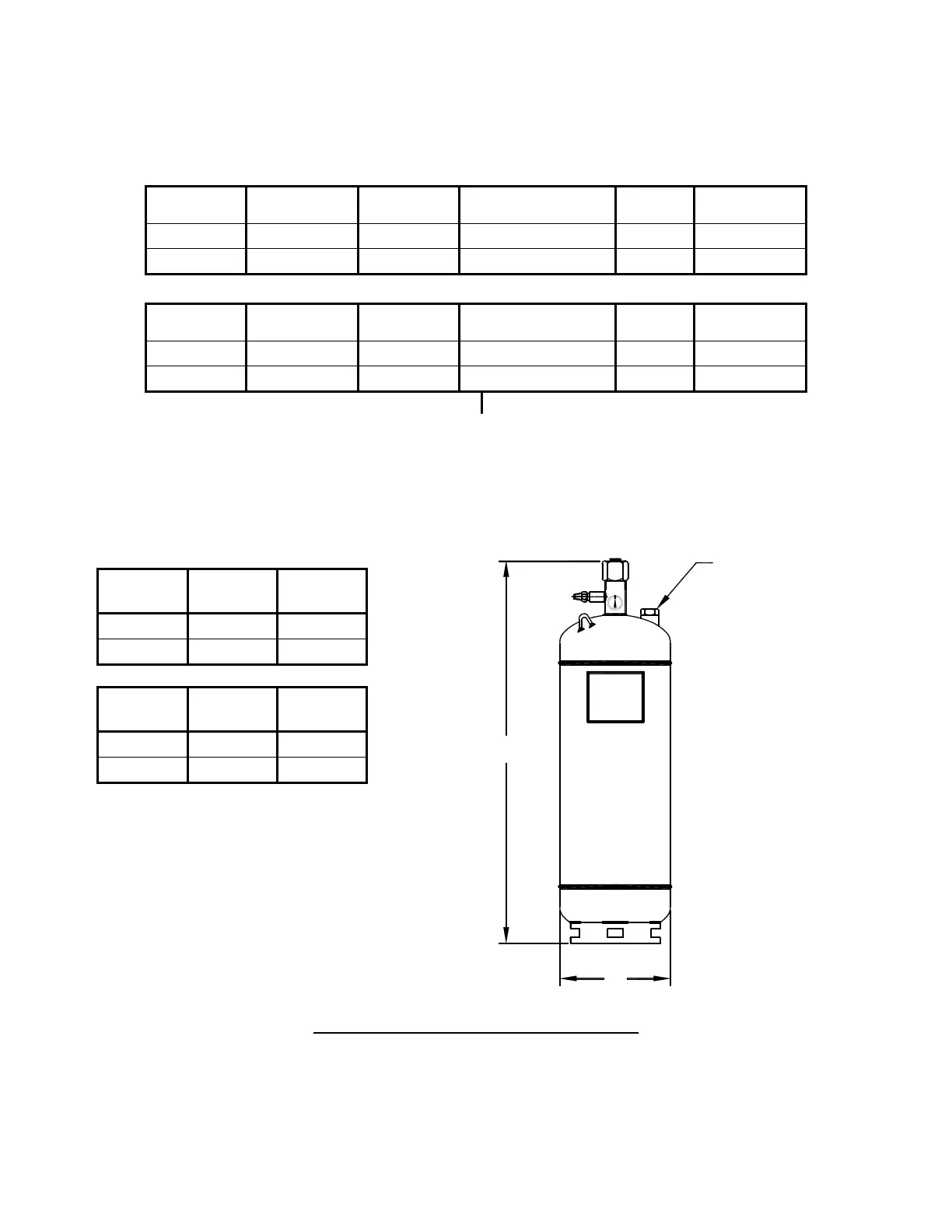

60 and 100 lb. (27 and 45 kg) Containers
"B"
"A"
LIQUID LEVEL BOSS
(100 lb. / 45.4 kg ONLY)
