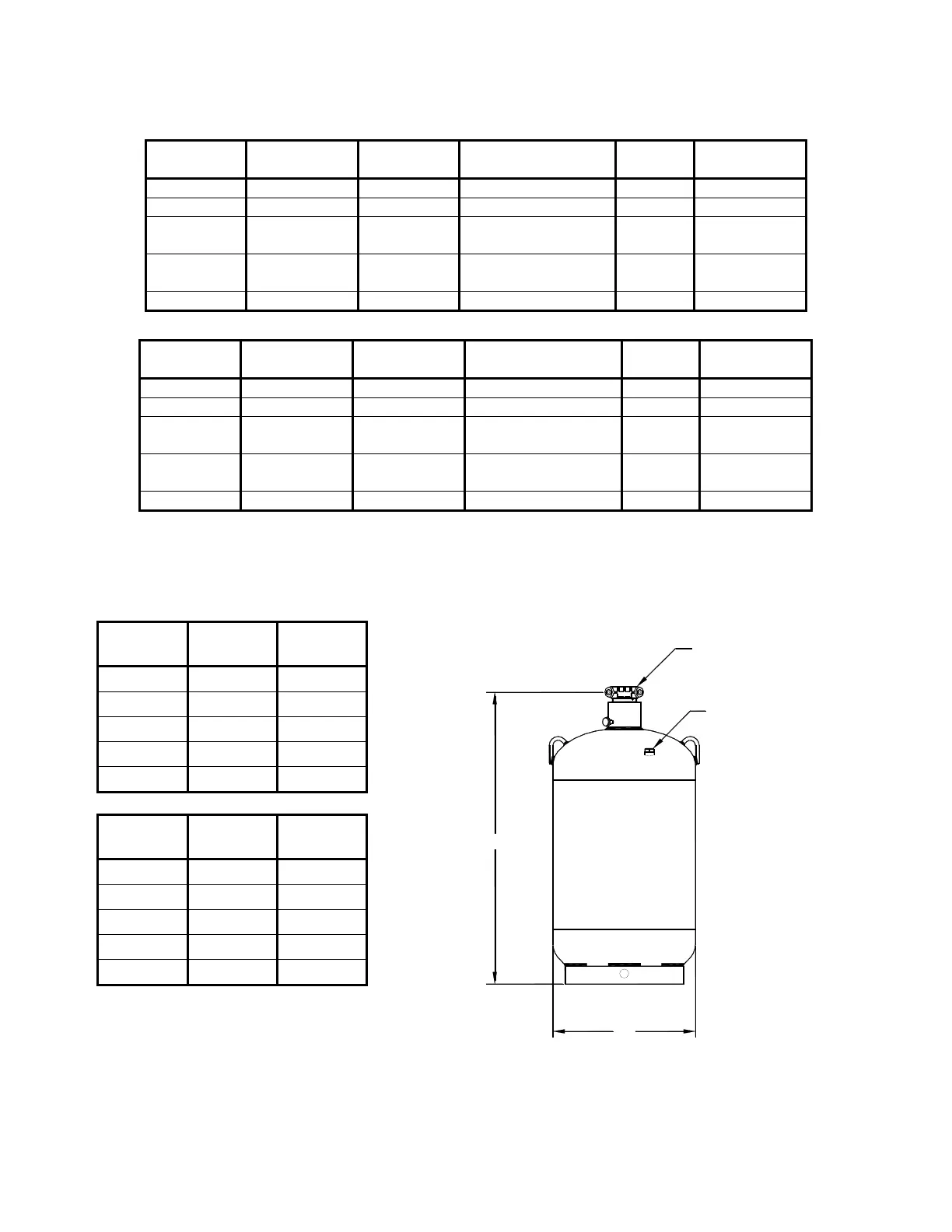

CONTAINER DATA TABLES
Container
Size
Container
Part Number
Fill Range
(lbs.)
Mounting
Position
Valve
Size
Approx.
Tare Weight
215 lb. 70-087 123 – 215 Upright (Valve Up) 3” NPT 285 lbs.
375 lb. 70-086 215 – 375 Upright (Valve Up) 3” NPT 375 lbs.
650 lb.
(20” dia.)
70-083 372 – 650 Upright (Valve Up) 3” NPT 455 lbs.
650 lb.
(24” dia.)
70-083A 372 – 650 Upright (Valve Up) 3” NPT 430 lbs.
1000 lb. 70-090 573 - 1002 Upright (Valve Up) 3” NPT 673 lbs.
Container
Size
Container
Part Number
Fill Range
(kg)
Mounting
Position
Valve
Size
Approx.
Tare Weight
97.5 kg 70-087 56.0 – 97.5 Upright (Valve Up) 80 mm 129.3 kg
170 kg 70-086 97.5 – 170.0 Upright (Valve Up) 80 mm 170.1 kg
295 kg
(508 mm)
70-083 169.0 – 294.5 Upright (Valve Up) 80 mm 206.4 kg
295 kg
(610 mm)
70-083A 169.0 – 294.5 Upright (Valve Up) 80 mm 195.1 kg
454 kg 70-090 260 – 454.5 Upright (Valve Up) 80 mm 305.3 kg
Container
Size
Dim. “A”
(inch)
Dim. “B”
(inch)
215 lb. 20” 28-7/8”
375 lb. 20” 42-1/2”
650 lb. 20” 65-3/4”
650 lb. 24” 48-3/4”
1000 lb. 24” 70”
Container
Size
Dim. “A”
(mm)
Dim. “B”
(mm)
97.5 kg 508 733
170 kg 508 1080
295 kg 508 1670
295 kg 610 1237
454 kg 610 1778
*All dimensions shown are approximate
LIQUID LEVEL BOSS
"B"
"A"
VICTAULIC COUPLING W/
BAFFLE PLATE
