AC Connection Control Panel Installation
FCP-300/FCP-300ECS Manual — P/N LS10145-002FK-E:A 3/12/2021 25
4.2 AC Connection
At the installation, connect the AC terminals to the power source as shown in Figure 4.2. It may be necessary for a professional
electrician to make this connection.
The AC terminals are rated at 120 VAC, 60 Hz, 3.6A.

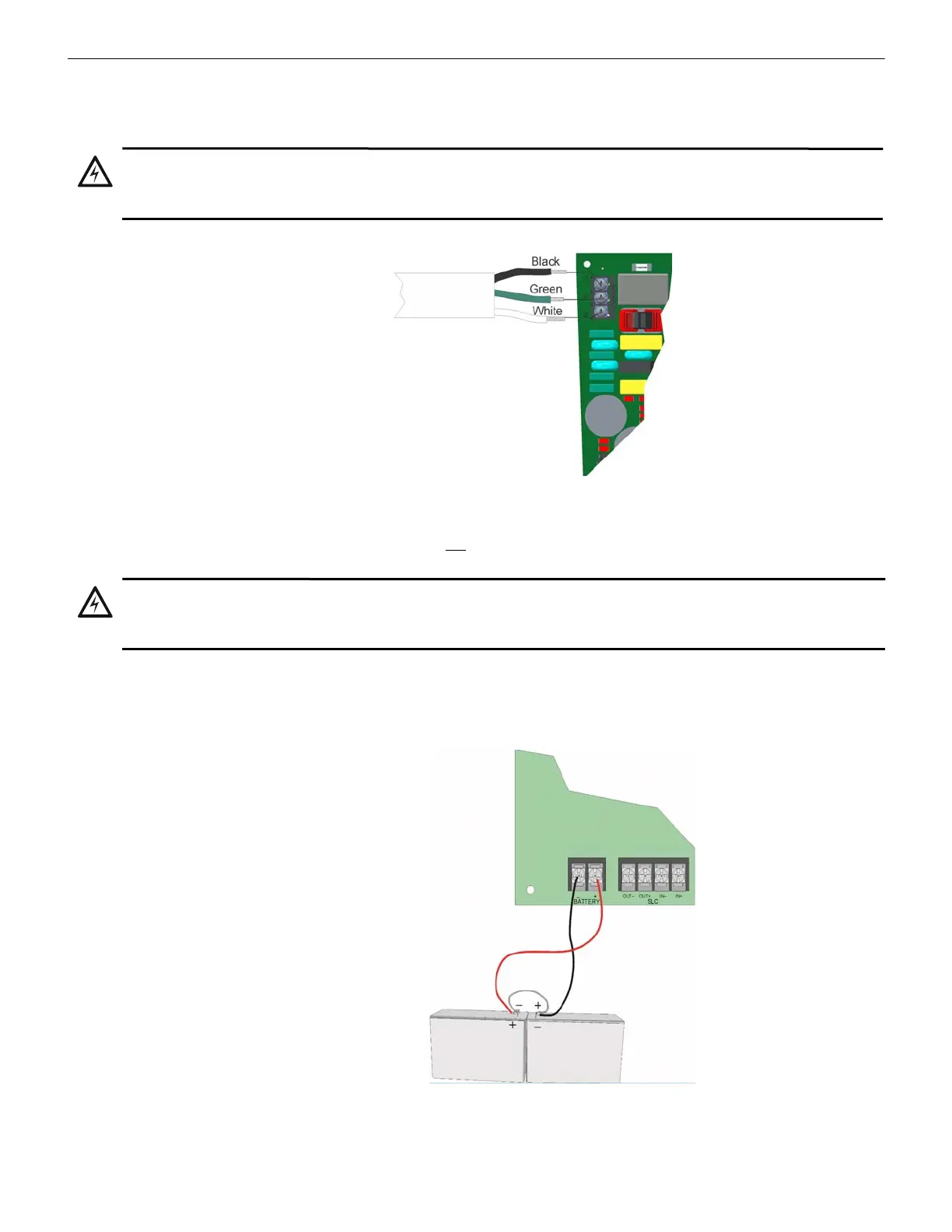

Figure 4.2 120VAC Power Connection
4.3 Battery Power
The batteries must be sealed lead acid type. Before you connect the batteries to the FACP, make certain that the
interconnect cable between the batteries is not
connected. Do not connect the battery jumper cable until the Sys-
tem is completely installed. Observe polarity when connecting the batteries.
The control panel battery charge capacity is 7.0 to 35 AH. The main control cabinet can house batteries up to 18 AH, larger
capacity batteries can be housed in an RBB (see Section 4.3.1 for details). Use 12V batteries of the same AH rating. Determine
the correct AH rating as per your current load calculation (see Section 3.7).
Wire batteries in series (in sequence) to produce a 24-volt equivalent. Do not parallel batteries to increase the AH rating. It is
recommended that you replace batteries every five years.
Figure 4.3 Battery Connection
WARNING: RISK OF ELECRICAL SHOCK AND EQUIPMENT DAMAGE
SEVERAL DIFFERENT SOURCES OF POWER CAN BE CONNECTED TO THIS PANEL. DISCONNECT ALL SOURCES
OF POWER BEFORE SERVICING. THE PANEL AND ASSOCIATED EQUIPMENT MAY BE DAMAGED BY REMOVING
AND/OR INSERTING CARDS, MODULES OR INTERCONNECTING CABLES WHILE THIS UNIT IS ENERGIZED
The
WARNING: RISK OF PERSONAL INJURY
The Battery contains sulfuric acid which can cause severe burns to the skin and eyes and can destroy fabrics. If contact is
made with the sulfuric acid, immediately flush the skin or eyes with water for 15 minutes and seek immediate medical
attention.
Red
Black
Battery Jumper
(P/N 140694)
Shipped With Panel
To Next Page
