Networking FIK-NIC Wiring Options

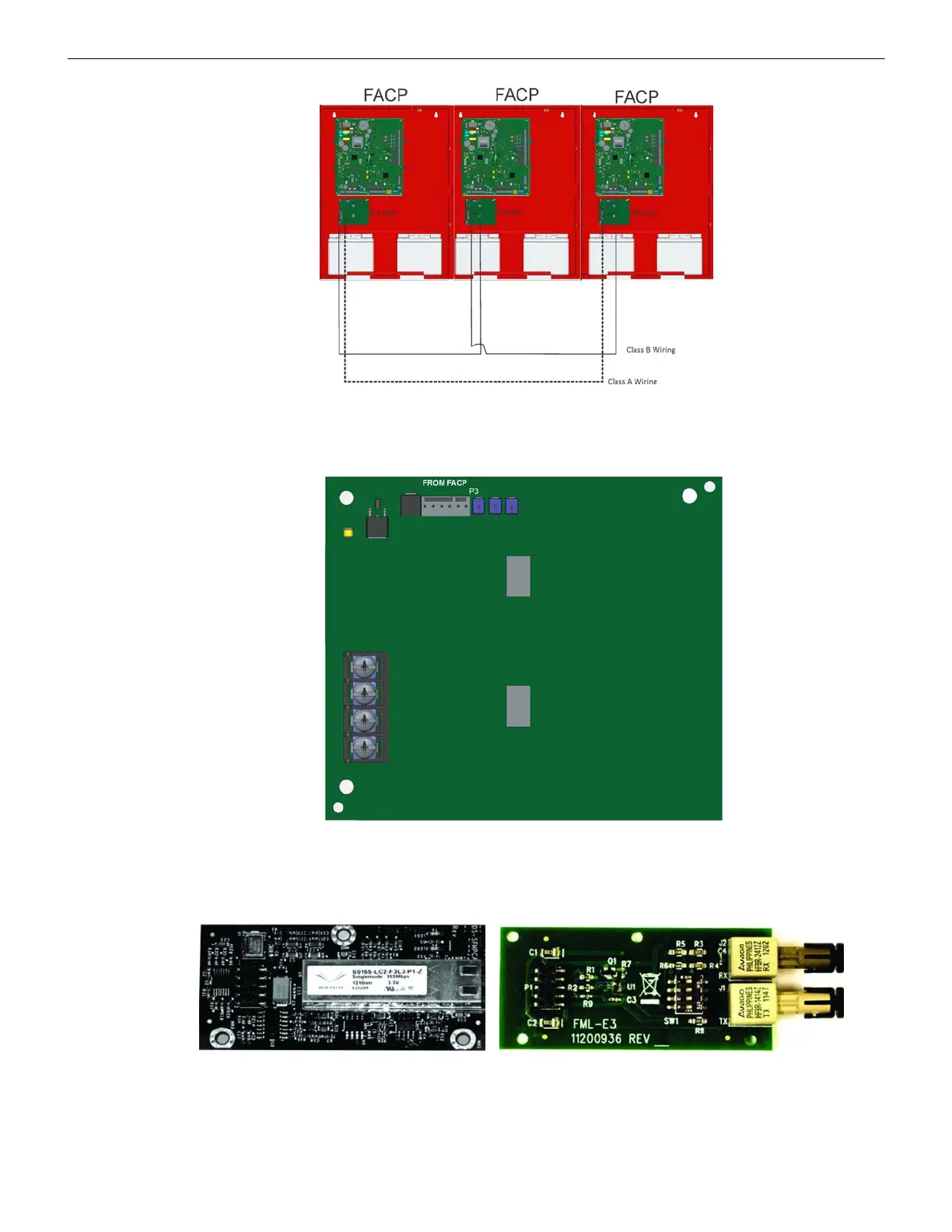

Figure 5.2 Internal FIK-NIC Wiring Option
5.3 FIK-NIC Wiring Options
Networking a group of FCP-300/ECS requires the use of a network interface card with each panel. The FIK-NIC connects to
other networked units using unshielded, twisted-pair wiring or fiber-optic cable.
Figure 5.3 FIK-NIC Network Interface Card
5.3.1 Fiber Loop Modules
Two types of fiber-optic modules are available to use to transmit and receive communication with the FIK-NIC. See
Figure 5.4.
Figure 5.4 Types Fiber Loop Modules
FIK-FSL Single-Mode Fiber
FIK-FML Multi-Mode Fiber
