FIK-5880 LED I/O Module Control Panel Installation
FCP-300/FCP-300ECS Manual — P/N LS10145-002FK-E:A 3/12/2021 41
4.10 FIK-5880 LED I/O Module
The FIK-5880 is an LED driver board that can be used in a wide variety of applications. It can also be used as an interface with
most customized floor plan annunciator boards. The FIK-5880 can drive up to 40 LEDs and has one PZT Controller. The FIK-
5880 also has eight inputs to used for dry contact monitoring. The following sub-sections describe the hardware installation.
For additional programming information, refer to Section 9.
4.10.1 FIK-5880 Board Layout
Figure 4.31 illustrates the FIK-5880 board showing the locations of the screw terminals to be used for the connections to the
following items:

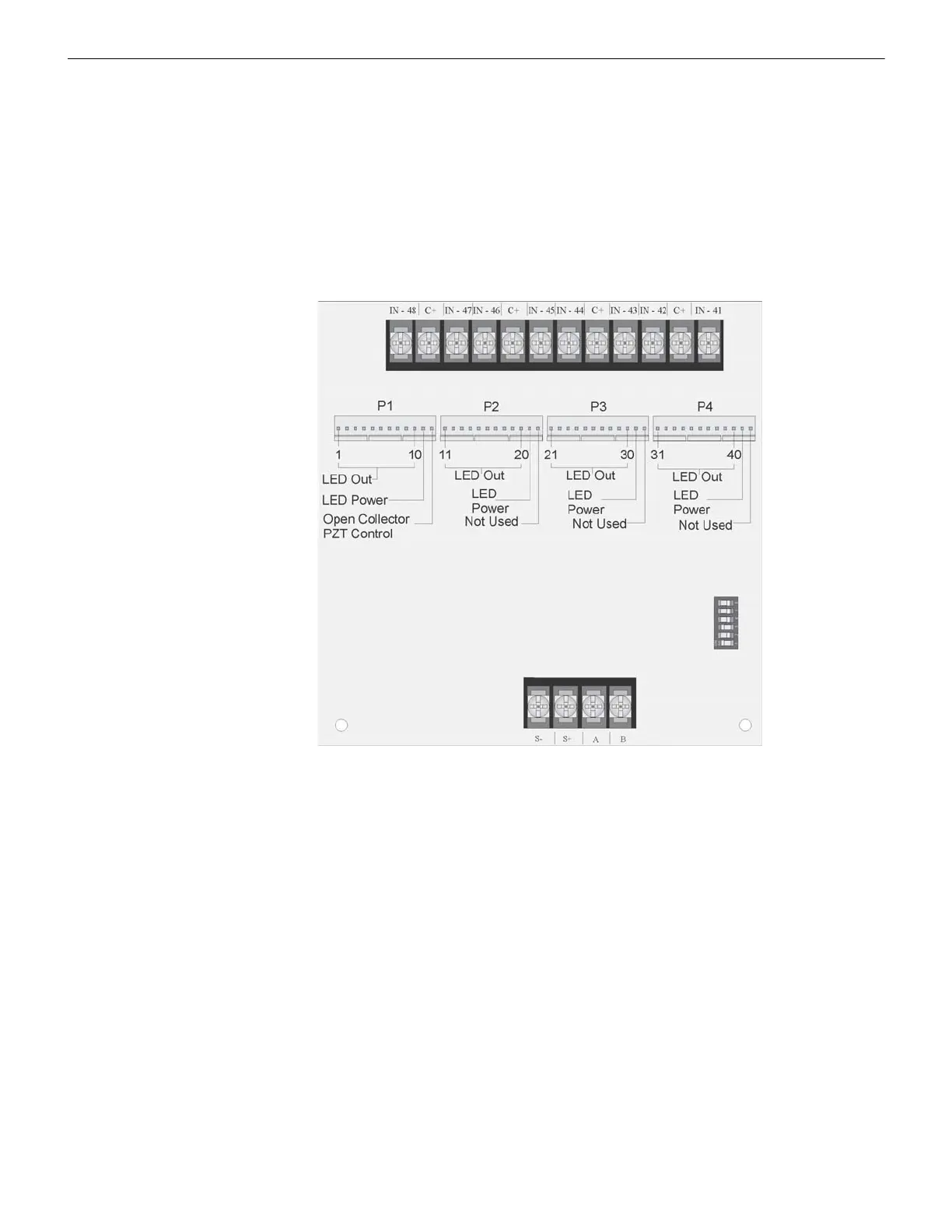

Figure 4.31 FIK-5880 Board Layout
• panel and the contact monitor wiring • pin connectors for connecting LEDs • DIP switch for selecting an SBUS ID number
SBUS Connection
Dry Contact Inputs - Supervised/Power-Limited
SBUS Address
DIPs
