Control Panel Installation Using the Addressable Relay Module for City Box Connection
4.17.2 Transmitter Activated by Dry Contacts
This Section describes the connection of a UL 864 Listed Remote Station Transmitter to the FCP-300 FACP dry contacts. The
FACP contacts must be supervised by the Remote Station Transmitter module using the end-of-line resistors (ELRs) with a
value determined by the Transmitter Manufacturer. Power is also provided by the Remote Station Transmitter Manufacturer.
Refer to the remote station Transmitter Manufacturer’s Manual for details.

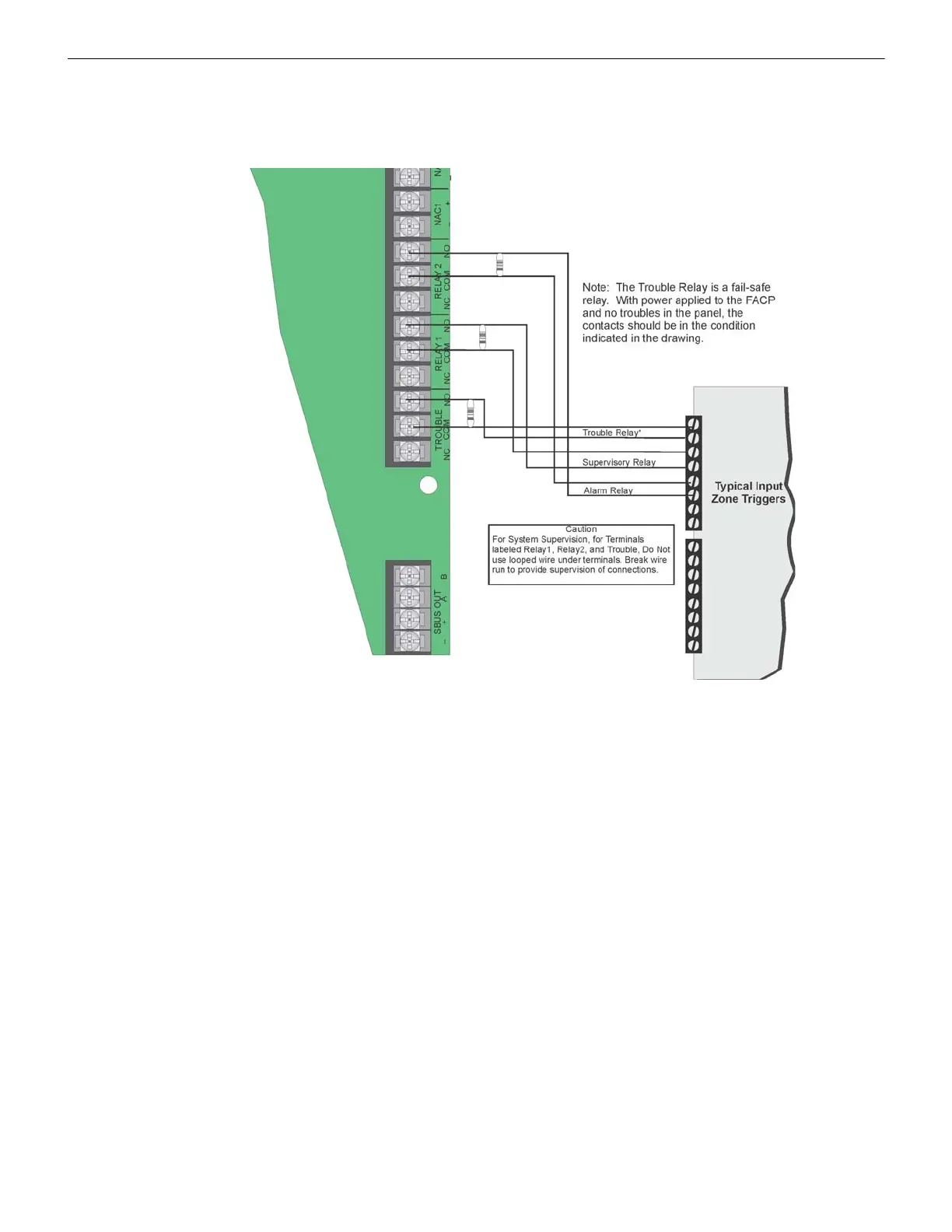

Figure 4.49 Remote Station Transmitter
