Using the Addressable Relay Module for City Box Connection Control Panel Installation
FCP-300/FCP-300ECS Manual — P/N LS10145-002FK-E:A 3/12/2021 53
To install the 7644-L8 for polarity reversal:
1. Wire the 7644-L8 to the control panel as shown in Figure 4.48. Do not install an EOL resistor on the terminals of the
NAC circuit used.
2. Program the NAC circuit as a notification circuit. See Section 9.5.4.
3. Map the group to activate the constant on from the zone event.
4. Program the output group characteristics as non-silenceable and reverse polarity.

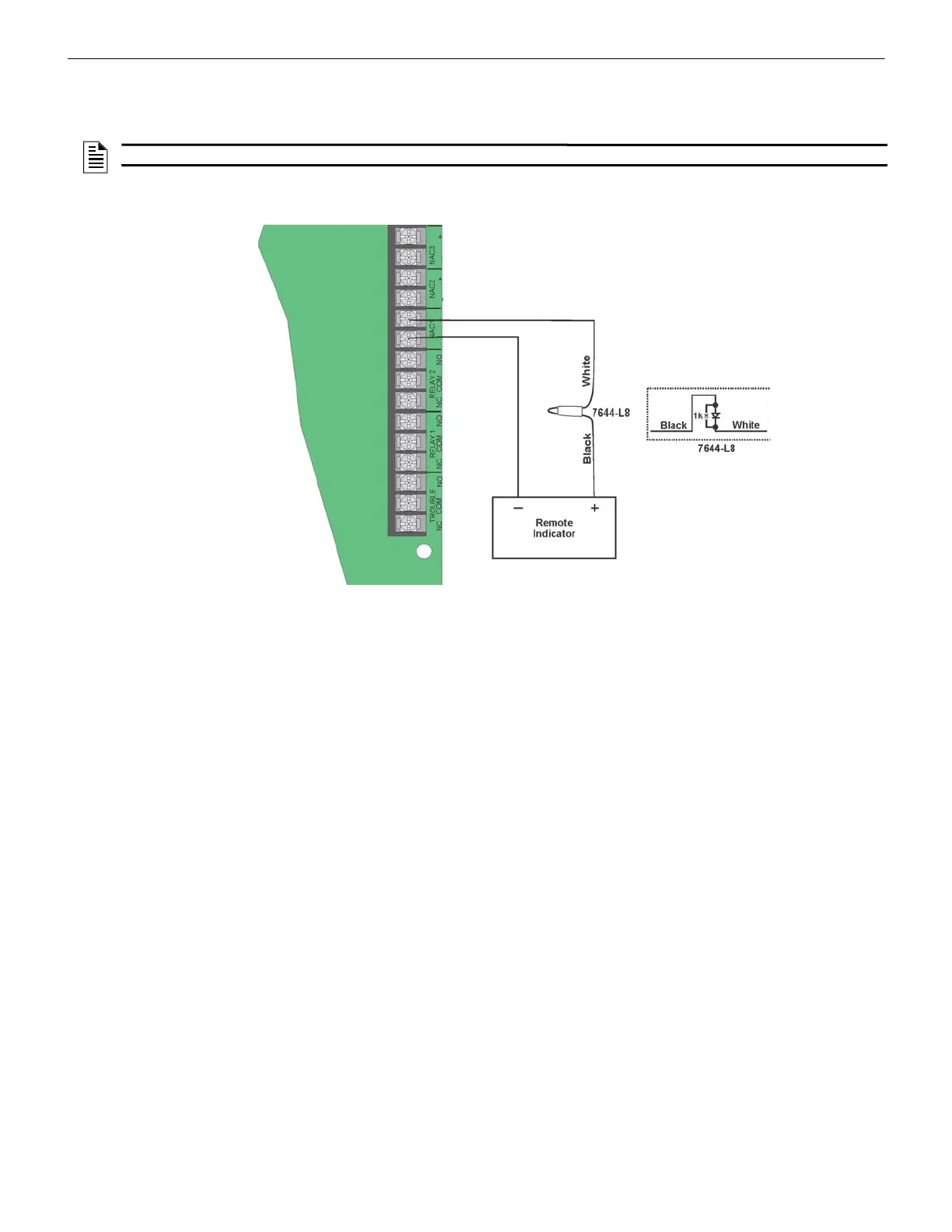

Figure 4.48 Polarity Reversal Connection Using the 7644-L8
NOTE: Use only NAC circuits on the control panel for reverse polarity
