4.10.4 Dry Contact Wiring
The 8 input circuits on the FIK-5880 board are used to monitor the switch inputs. Any type of switch that is supported by the
control panel can be used with the FIK-5880. For example, you can use a FIK-5880 to monitor the pull stations, water flow,
tamper, reset, or silence switches.
The wire dry contacts are shown in Figure 4.34. Notice the grouping of the terminals. The power terminals are shared by two
inputs.

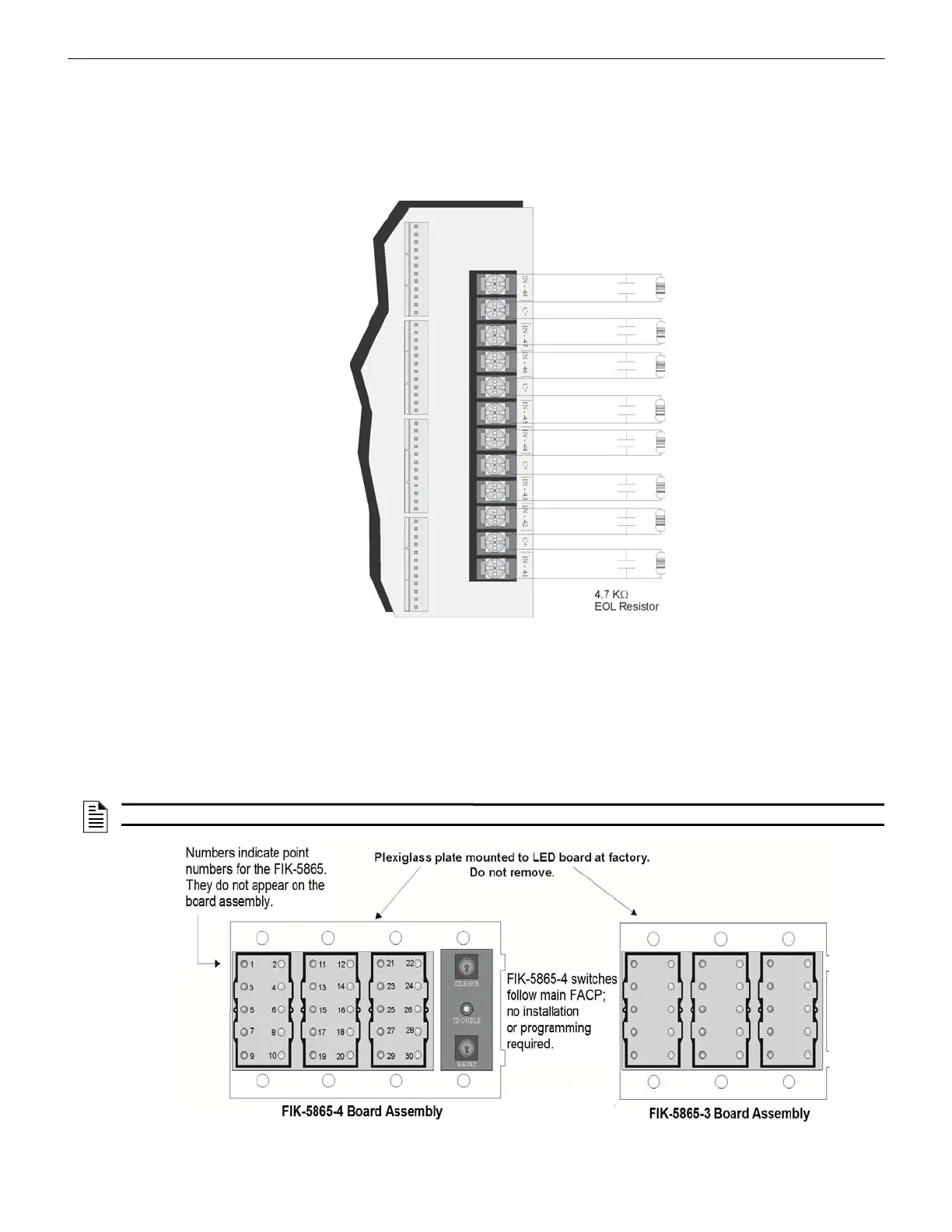

Figure 4.34 Dry Contact Wiring
4.11 FIK-5865-3/FIK-5865-4 LED Annunciator Installation
The FIK-5865-3 and FIK-5865-4 are LED annunciators. The FIK-5865-4 has 30 mappable LEDs, remote silence and reset key
switches, and a general System trouble LED.
The FIK-5865-3 has 30 mappable LEDs only. These LEDs are arranged as 15 pairs of red (typically used for the alarm) and
yellow (typically used for the trouble) LEDs.
The installation of the FIK-5865-3 and FIK-5865-4 is identical. The key switches and the trouble LEDs operate in the same
way as the other System annunciators and do not require any installation steps. The following sub-sections describe how to
install the FIK-5865-3 and FIK-5865-4 hardware. For the programming information, refer to Section 9.
Figure 4.35 FIK-5865-3 and FIK-5865-4 Assembly (Front View)
NOTE: This manual uses the FIK-5865 when it references aspects of the FIK-5865-3 and FIK-5865-4 that are common to both models.
