44 FCP-300/FCP-300ECS Manual — P/N LS10145-002FK-E:A 3/12/2021
Control Panel Installation FIK-5865-3/FIK-5865-4 LED Annunciator Installation
4.11.1 FIK-5865 Connection to Panel
The FIK-5865 connects to the panel via the SBUS. Make the connections as shown in Figure 4.36. After the FIK-5865 is con-
nected to the panel, it must be added to the System. This programming step is described in Section 4.12.

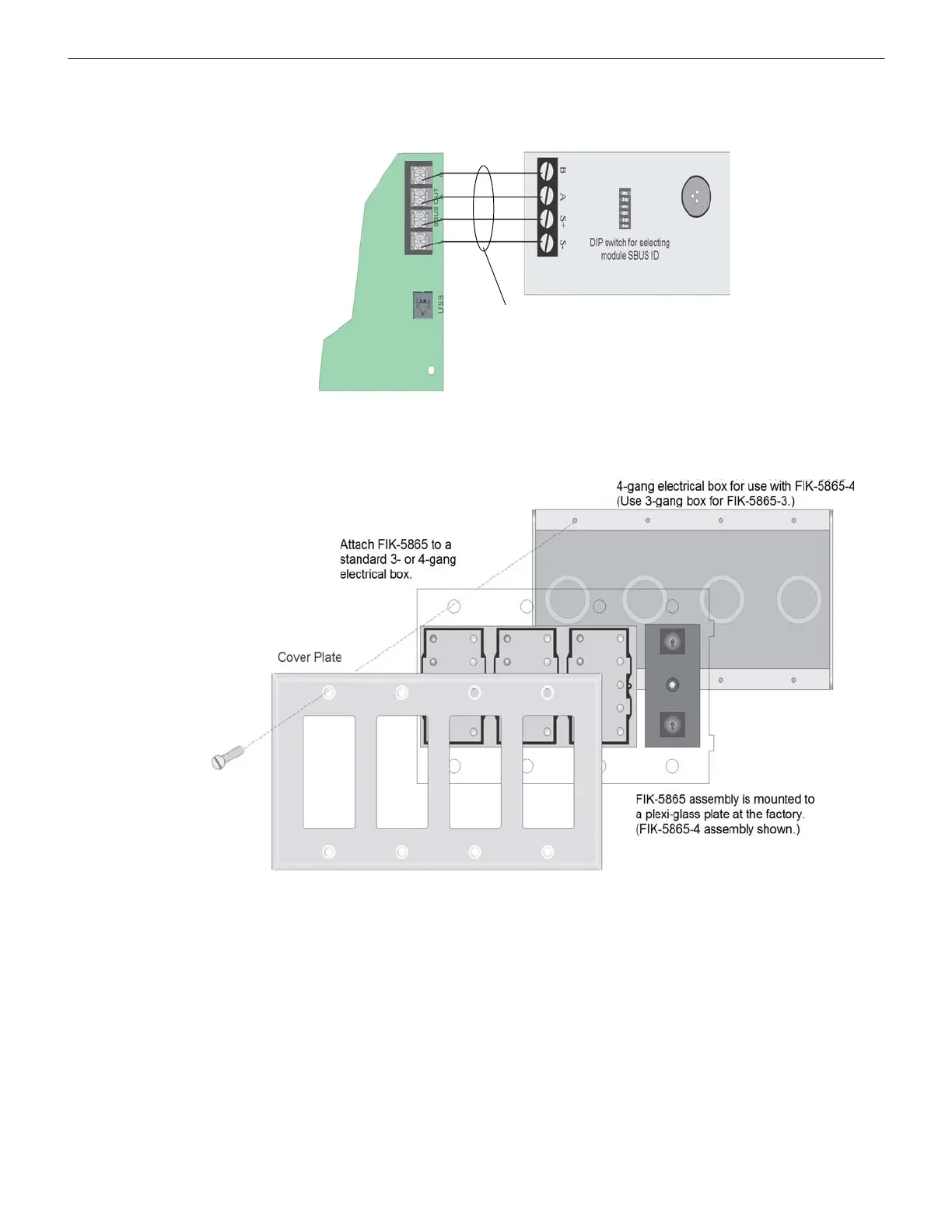

Figure 4.36 FIK-5865 Connection to the FACP
4.11.2 FIK-5865 Mounting
Mount the FIK-5865-4 to a standard 4-gang electrical box. Mount the FIK-5865-3 to a standard 3-gang electrical box. In
Figure 4.37, the FIK-5865-4, attached to a 4-gang box, is used as an example.
Figure 4.37 FIK-5865 Mounting Example
Supervised
Power-limited Class B
To Next Page
