34 FCP-300/FCP-300ECS Manual — P/N LS10145-002FK-E:A 3/12/2021
Control Panel Installation FIK-RA1000 Remote Annunciator Installation
4.6.1 Mounting the FIK-RA1000
This Section of the Manual describes mounting the remote annunciator. The annunciator can be flush- or surface-mounted.

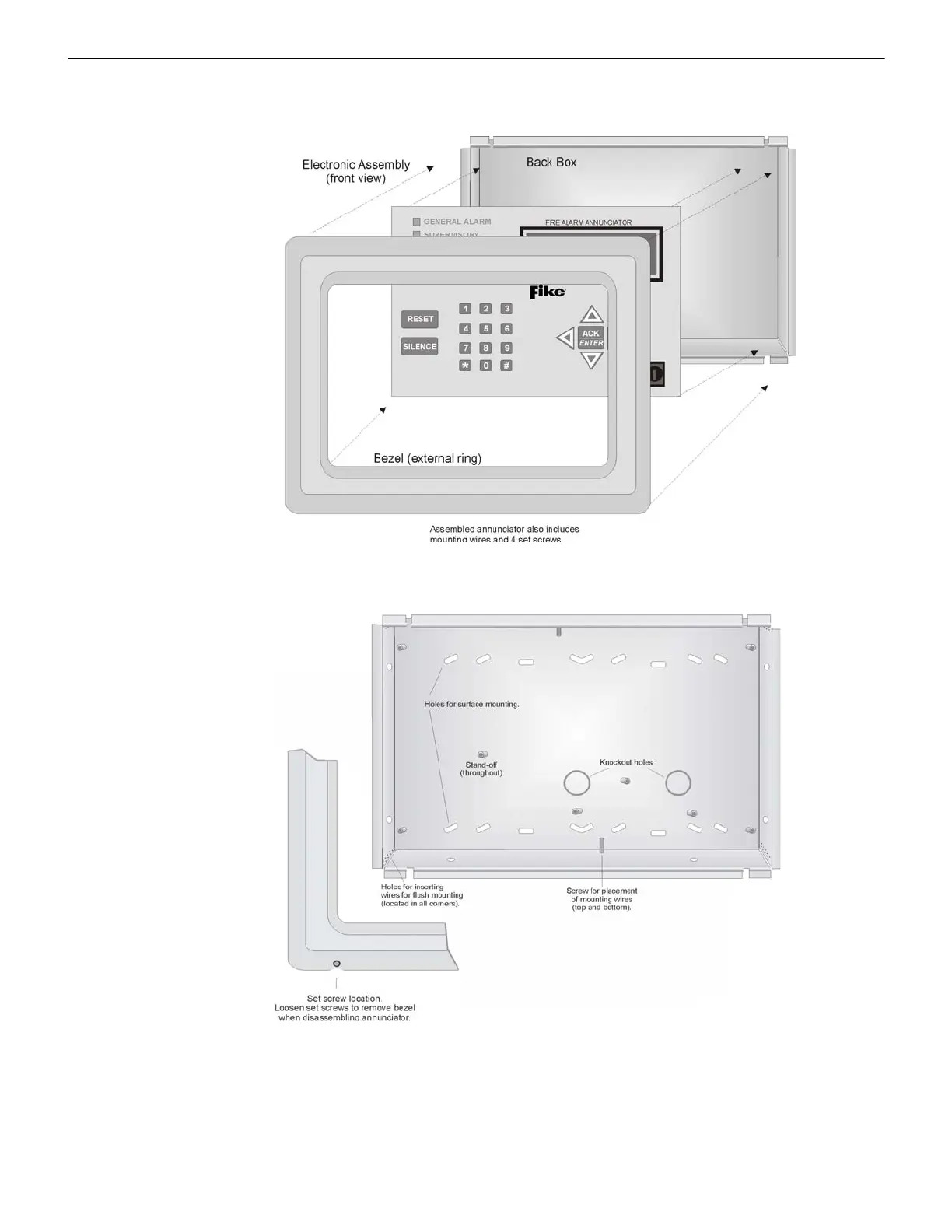

Figure 4.17 shows the parts of the annunciator. Instructions for disassembling and mounting appear on the following pages
Figure 4.17 Annunciator Parts
The FIK-RA1000 comes from the factory fully assembled. You must disassemble it for mounting. To disassemble the annunci-
ator, use a 5/64 hex wrench to remove the set screws, located on the bottom of the annunciator bezel. (See Figure 4.18 for loca-
tion of the set screws.)
Figure 4.18 Annunciator Back Box and Bezel Details
Flush Mounting
This Section of the manual describes flush mounting. You can flush-mount with or without an electrical box.
