Fluke 5320A User Manual

5320A
Users Manual
5-44
000
0
1
2
34567
&
&
&
&
&
&
&
OR
Status Byte Register
ESB OSS
MAV
Read using *SRE?
Write using *SRE
SRE Service Request Enable Register
Output Queue
Read by Serial Poll
Read using *STB?
Service Request
Generation
QSS - Summary Bit (not used)
QSS
MSS
RQS
0
1
2
34567
&
&
&
&
&
&
&
OR
ESR Event Status Register
CME URQ PON
EXE
Read using *ESR?
Read using *ESE?
Write using *ESR
ESE Eevent Status Enable Register
DDE QYE OPC0
0
0000 ...
1
2
...89...16
&
&
&
&
&
&
OR
HIPT
RCD
Enable Register
Read using STAT:OPER:ENAB?
Write using STAT:OPER:ENAB
Transition Register
Operation Register
Event Register
Read using STAT:OPER:COND?
Read using STAT:OPER:EVEN?
...
XXXX ...
1>0
1>0
...
0000 ...
HIPT
RCD
...
ehq071.eps

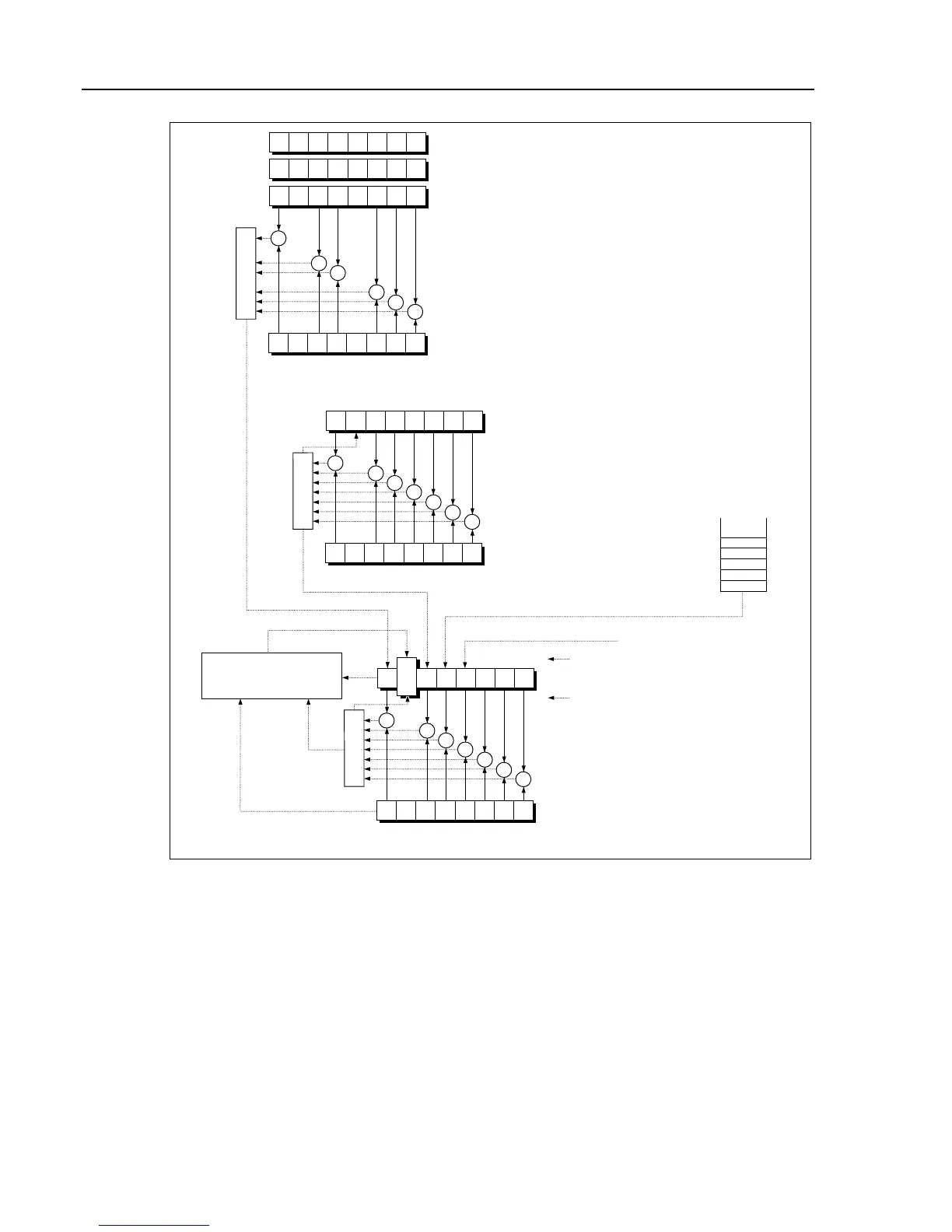

Figure 5-1. Status Register Overview
STB Status Byte Register
The Status Byte (STB) register is the main register where information from other
status registers and from the output queue are collected. The value of STB register is
reset after powering up the Calibrator, or after sending the *CLS command. This
command resets all STB bits except the MAV bit, which remains set if the output
queue is not empty. The STB register value can be read via a serial message or the
general query *STB?.
