Fluke 5320A User Manual

5320A
Users Manual
7-26
280V
RMS
MAX
280V
RMS
MAX
CAT I
1000V
CAT II
600V
RMS MAX
20V PK
30A
RMS
MAX
20V PK
LO
LO - SENSE
, HI ,
mA
V
1500V PK
MAX
50V PK
MAX
20V PK
20V PK
N
L
PE
L1 L2 L3HES
OUTPUT
Z
L
, Z
GND
,
RCD
HI
LO
HI
LO
METER
METER
5320A MULTIFUNCTION ELECTRICAL TESTER CALIBR
V
A
COM
INPUT
Quadtech Sentry
Fluke 5320A
Fluke 80K-40
High Voltage Probe
ehq054.eps

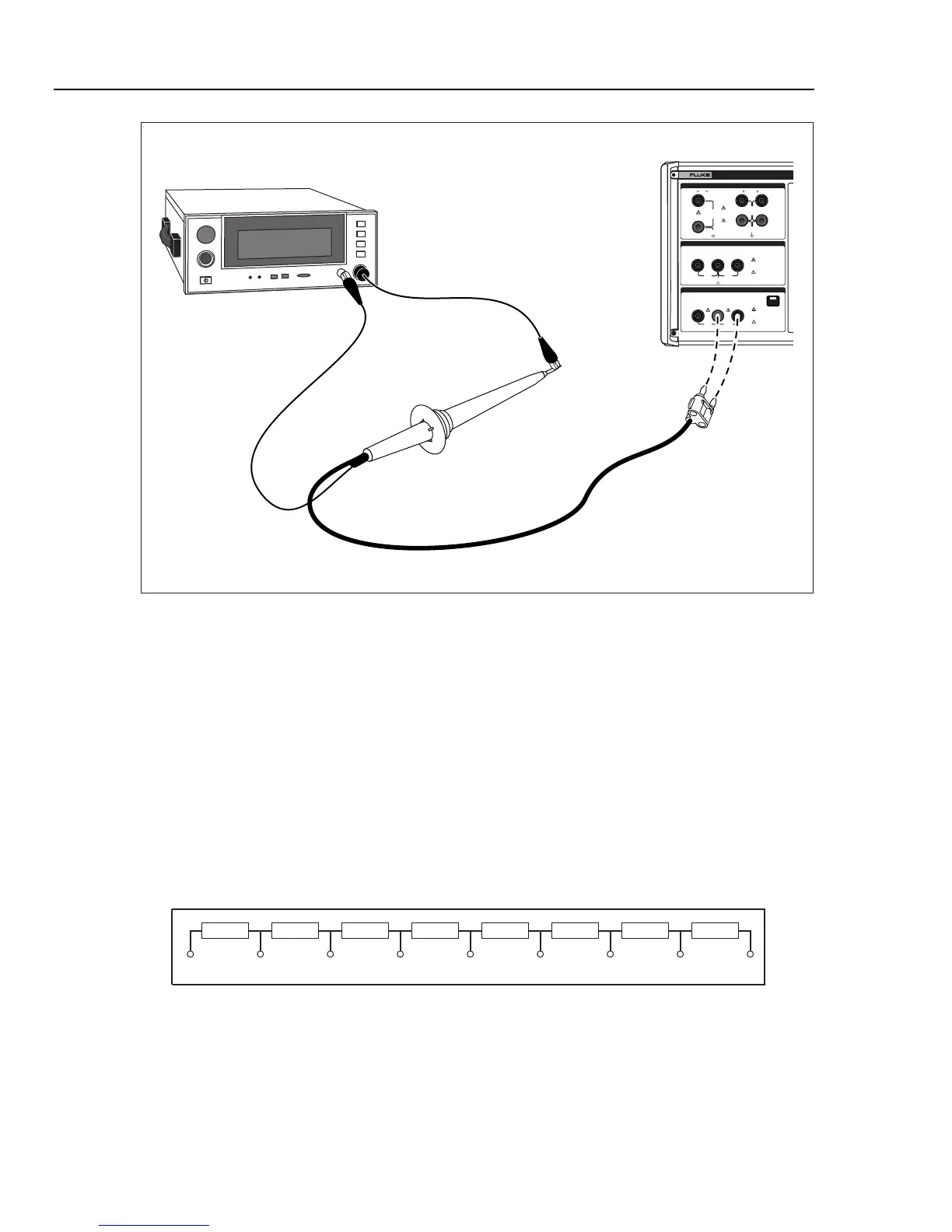

Figure 7-24. 40 kV High Voltage Probe Application
WX Warning
When appropriate cable adapters are not available and single
test leads are used for voltage calibration, hazardous voltages
exist on the test leads. Test leads should not be touched while
the Calibrator is in the Operate mode.
Measuring Leakage Current with the 5320A-LOAD
The 5320A-LOAD High Voltage Load Adapter (hereafter the Adapter) creates leakage
current while performing hipot tester calibration with the Calibrator. As shown in Figure
7-25, this Adapter consists of a series of eight power-rated resistors configured to provide
eight resistance taps from 10 kΩ to 5 MΩ. The maximum withstand voltage is 5.5 kV.
COM 10 k
10 25
35 k 50 k 100 k 250 k 500 k 1 M 5 M
ehq069.eps
Figure 7-25. Load Schematic
XWWarning
To avoid possible electric shock or personal injury, use this
Adapter only as specified in this instruction sheet with the
Calibrator or the protection provided by the Adapter might be
impaired.
