Fluke 5320A User Manual

Applications
Calibrating High Voltage Sources (Hipots) with a High Voltage Probe 7
7-27
Using Figure 7-26 as a reference, connect the hipot tester (UUT) to the Calibrator and the
Adapter. The Adapter will create the leakage current that will be measured by the
Calibrator. The resistance selection on the Adapter should be chosen for the appropriate
leakage current based on voltage amplitude used for the test.
280V
RMS
MAX
280V
RMS
MAX
CAT I
1000V
CAT II
600V
RMS MAX
20V PK
30A
RMS
MAX
20V PK
LO
LO - SENSE
, HI ,
mA
V
1500V PK
MAX
50V PK
MAX
20V PK
20V PK
N
L
PE
L1 L2 L3HES
OUTPUT
Z
L
, Z
GND
,
RCD
HI
LO
HI
LO
METER
METER
5320A MULTIFUNCTION ELECTRICAL TESTER CALIBR
V
A
COM
INPUT
Hi
Lo
HIPOT Tester
Fluke 5320A-LOAD
Fluke 5320A
ehq062.eps

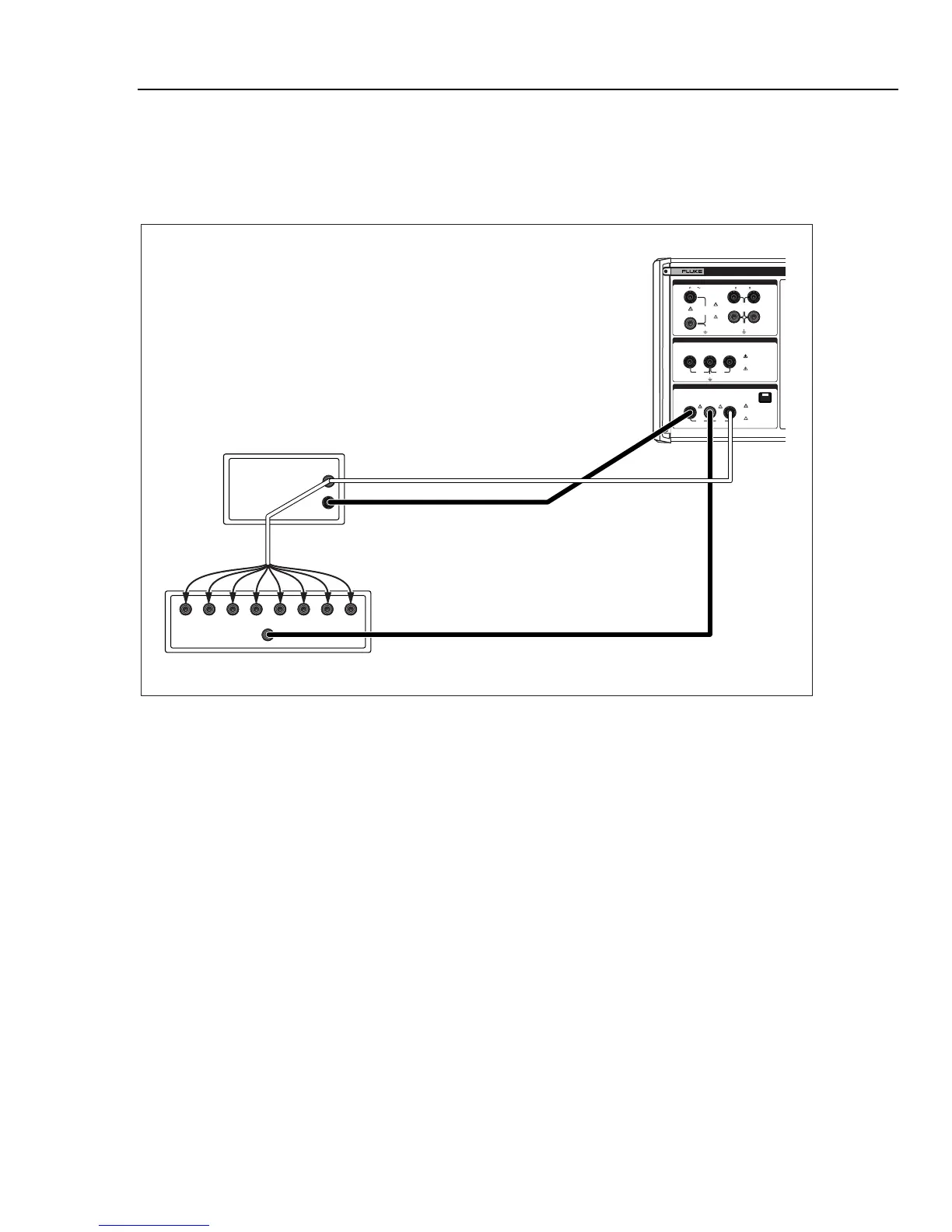

Figure 7-26. Normal Hipot Calibration Connections
Note
Before using the Adapter, read the operating specifications to understand
the operating limits.
W Caution
To avoid damage to the Adapter, never exceed the maximum
rated voltage, power, and current limit of the Adapter.
To set up for a hipot leakage current calibration with less than 1000 V test voltage:
1. Press M.
2. In the meter function, set the Calibrator to HIPOT LC mode. See Figure 7-27 for an
example of the leakage current mode display.
