3. If necessary, make changes to the functions parameters through the setup menu by
pressing the softkey under Setup. To return to the function selected without
changing the parameters, press the softkey under Exit.
4. With the desired function selected, function parameters set, and the UUT properly
connected to the Calibrator, press the OPER key to activate the Calibrator’s outputs.
Note
The help guide shows information on the selected function that may help
with proper function settings. To access the help guide, press the Mode
softkey and select Help. The guide is available in five languages: English,
German, French, Spanish, and Italian. When finished reading the help
messages, press the Exit softkey to return to the selected function.
Setting the Output Signal Value
All Calibrator functions allow setting the primary and auxiliary parameter values in three
different ways: Numeric keyboard, Cursor keys and Rotary Knob. The cursor keys and
rotary knob are also used to make menu selections in the setup window.
Note
If an entry results in overflow or underflow of the Calibrator’s range, a
“Value too High” or “Value too Low” error message will appear.
Numeric Keyboard
To enter a value using the numeric keypad:
1. Tap out the numeric value using 0 through 9, then E to accept.
When the first digit is pressed on the keypad, an input box as shown in Figure 3-1
appears in the PARAMETERS field. The units for the selected function are also
displayed in the softkey label area.
Note
The softkey labels change to match the function selected.

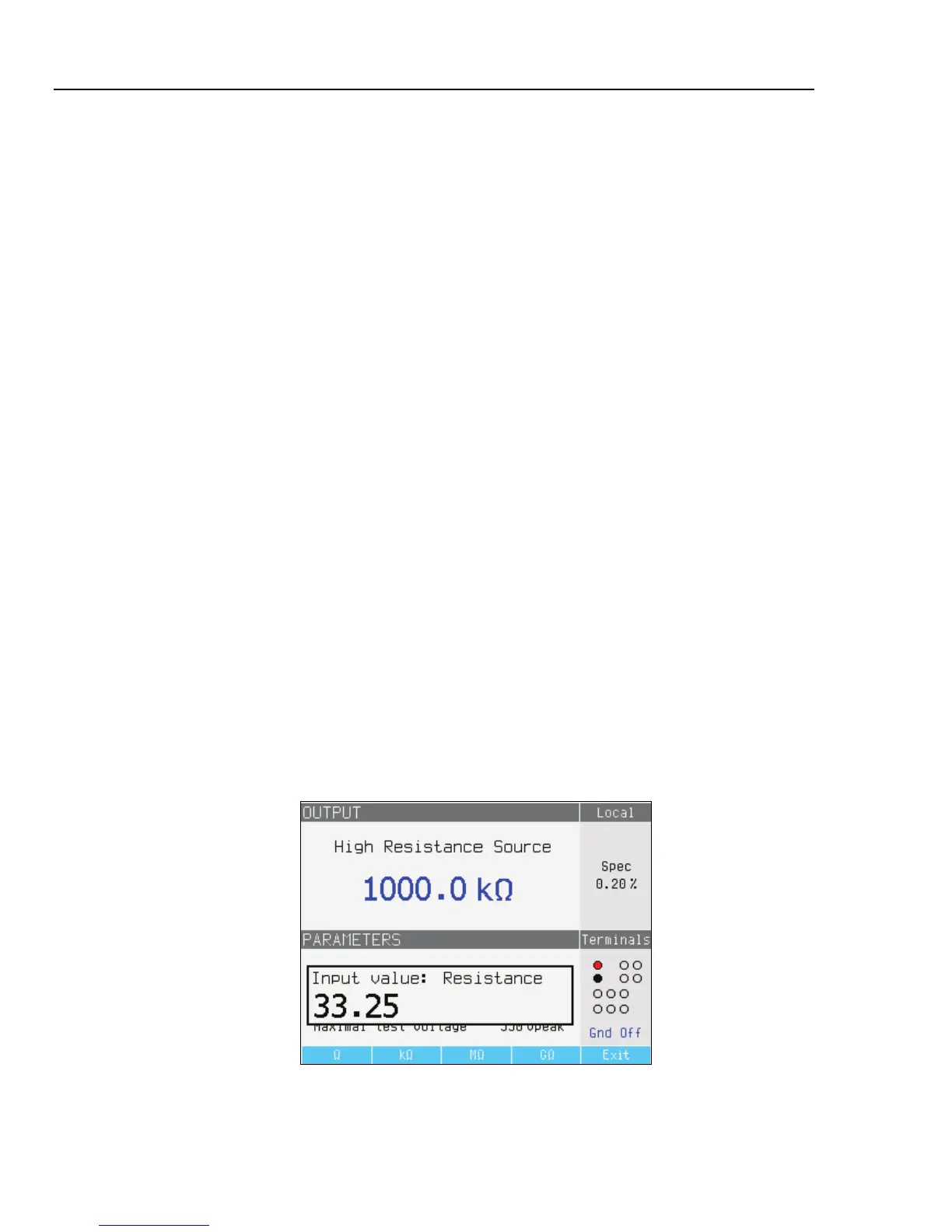

Figure 3-1. Keypad Entry Display
To Next Page
