Fluke 5320A User Manual

5320A
Users Manual
6-10
RCD Trip Time Verification
1. Connect the instruments as shown in Figure 6-3.
280V
RMS
MAX
280V
RMS
MAX
CAT I
1000V
CAT II
600V
RMS MAX
20V PK
30A
RMS
MAX
20V PK
LO
LO - SENSE
, HI ,
mA
V
1500V PK
MAX
50V PK
MAX
20V PK
20V PK
N
L
PE
L1 L2 L3HES
OUTPUT
Z
L
, Z
GND
,
RCD
HI
LO
HI
LO
METER
METER
5320A MULTIFUNCTION ELECTRICAL TESTER CALIBR
V
A
COM
INPUT
INP
COM
Fluke 5320A
Fluke 5520A
Multifunction
Calibrator
Counter
R=1-10 k
V
V
ehq070.eps

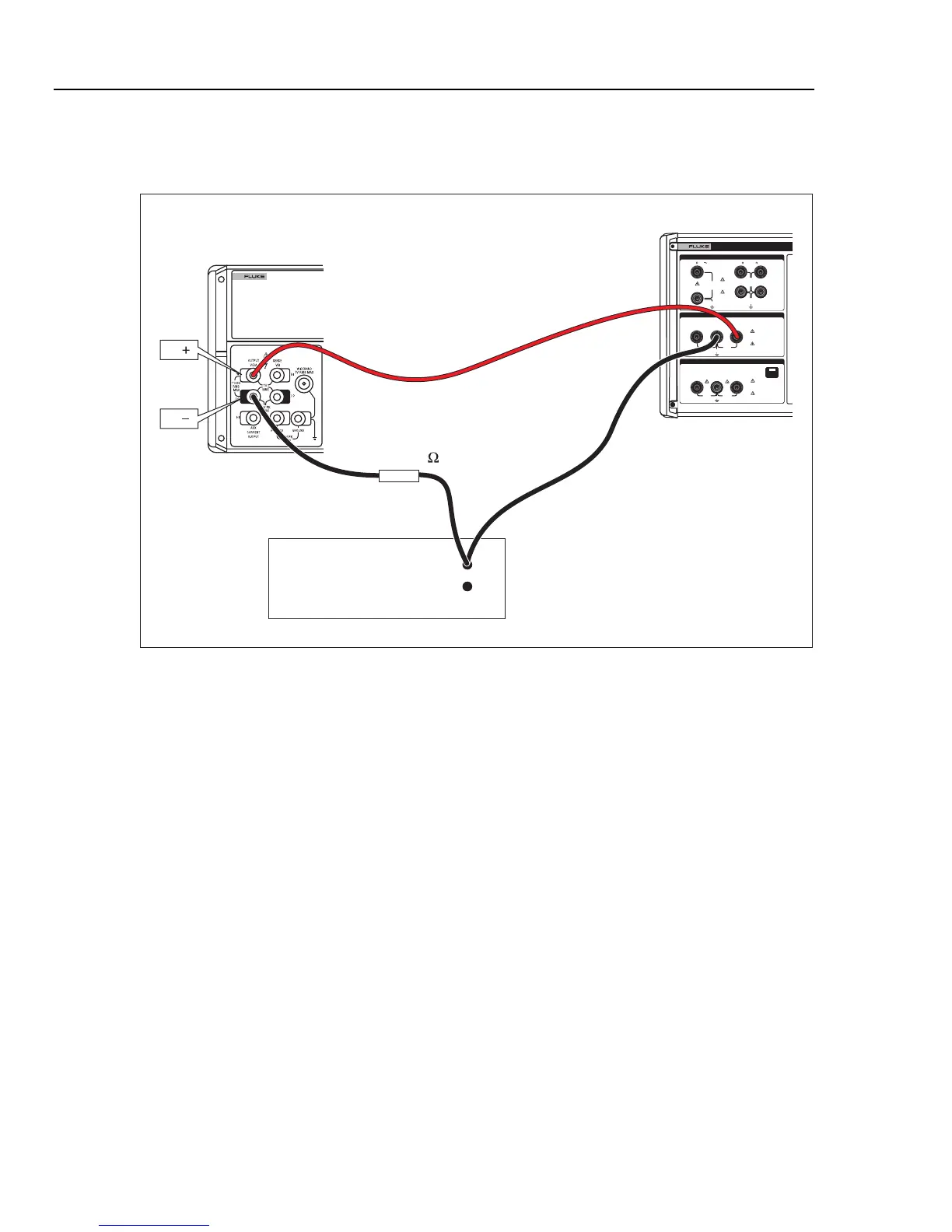

Figure 6-3. Multimeter RCD Trip Current Verification
2. Set 5V dc on the multifunction calibrator and turn the output on.
3. Set the time interval function on the counter, start rise edge, stop fall edge. Set 50 Ω
or 100 kΩ input impedance in the counter. If the counter is not equipped with this
function, use a single resistor with value 1 kΩ to 10 kΩ / 0.1 W connected in parallel
to the counter input.
4. Set time interval on 5320A display in ms.
5. The counter should indicate 0 ms. If not, reset the counter display.
6. Push the OPER button. The Calibrator generates a passive squarewave with
frequency 2/T.
7. Compare the counter reading with the 5320A preset time value.
8. Verify the Calibrator’s performance as listed in Table 6-10. Deviations should not
exceed the specified limits.
AC Voltage Calibration Verification (5320A/VLC Models Only)
1. Select the ac voltage calibration function on the Calibrator. Set the output frequency
to 55 Hz.
2. Connect a standard multimeter to the appropriate output terminals of the Calibrator
and select the ac voltage function. Set the appropriate parameters on the standard
multimeter to meet its best accuracy.
