Fronius IG Plus 3.0-1 User Manual

46
2
3
4
3
5
1
DC+
4
4
1/2 in.
2
1
3

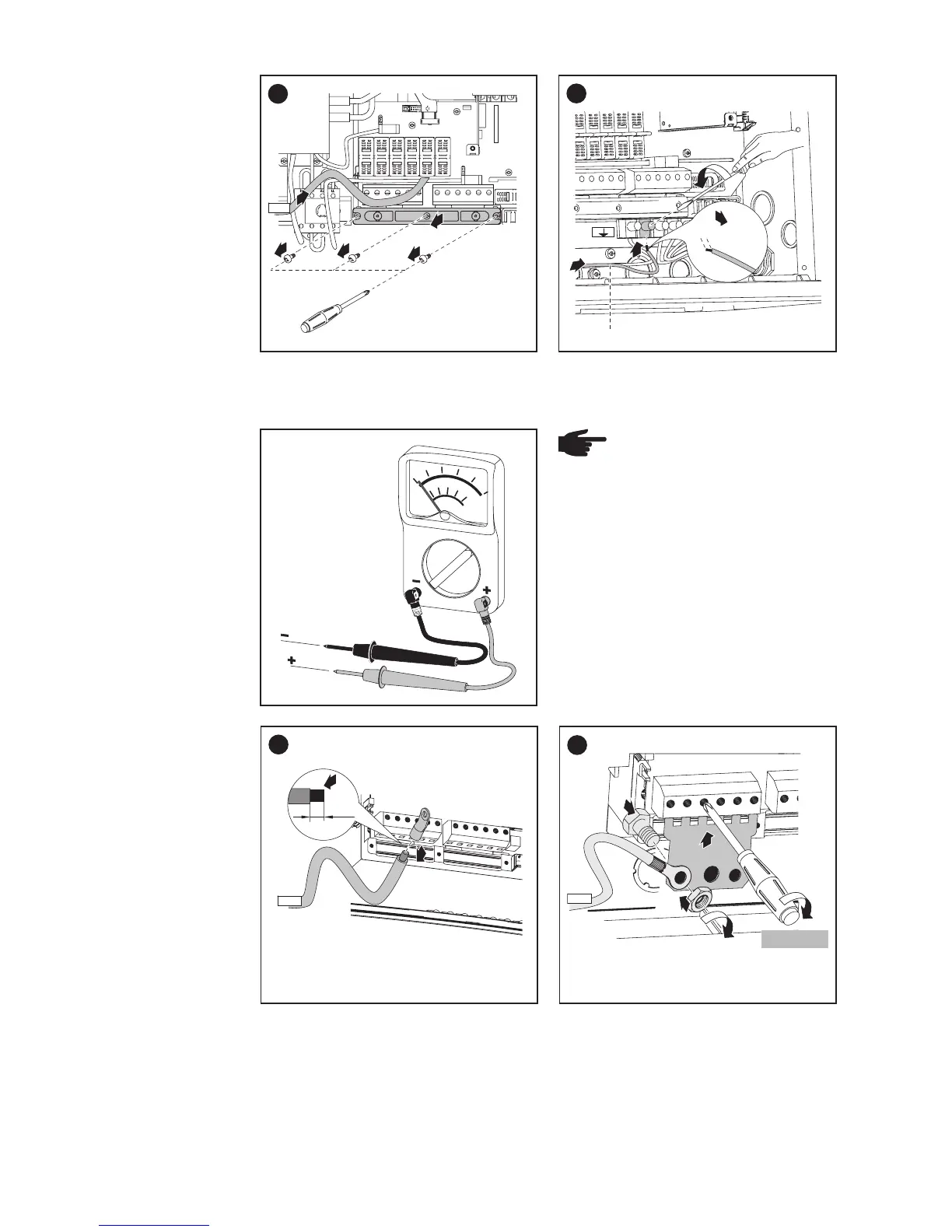

Connecting
combined
Solar Module
Strings using
a DC String
Input Combi-
ner
(continued)
NOTE Connecting the
DC wiring with the wrong
polarity may cause dama-
ge to the inverter.
Check both the polarity
and the open circuit volta-
ge.
The DC Voltage must not exceed
600 V, regardless of temperature.
Tightening torque:
stranded wires ................1.25 ft. lb.
solid wires ......................0.81 ft. lb.
5
2
1/2 in.
1
DC+
6
3
1
6x
2
3
4
DC+
1.33 ft. lb.
* Wire for solar module grounding

Fronius IG Plus 3.0-1 Specifications

General

Protection class	IP 44
Max. output current	13 A
Nominal AC voltage	230 V
THD	< 3%
Max. DC voltage	500 V
Maximum Input Voltage	500 V
Number of MPP Trackers	1
Operating Temperature Range	-20°C to +55°C
Cooling	Convection
Warranty	5 years
AC nominal output	3000 W
Max. apparent AC power	3000 VA
AC voltage range	180 - 264 V
