Fronius IG Plus 3.0-1 User Manual

47
7
3
1/2 in.
2
1
DC-
8
2
3
6x
4
3
1
DC-

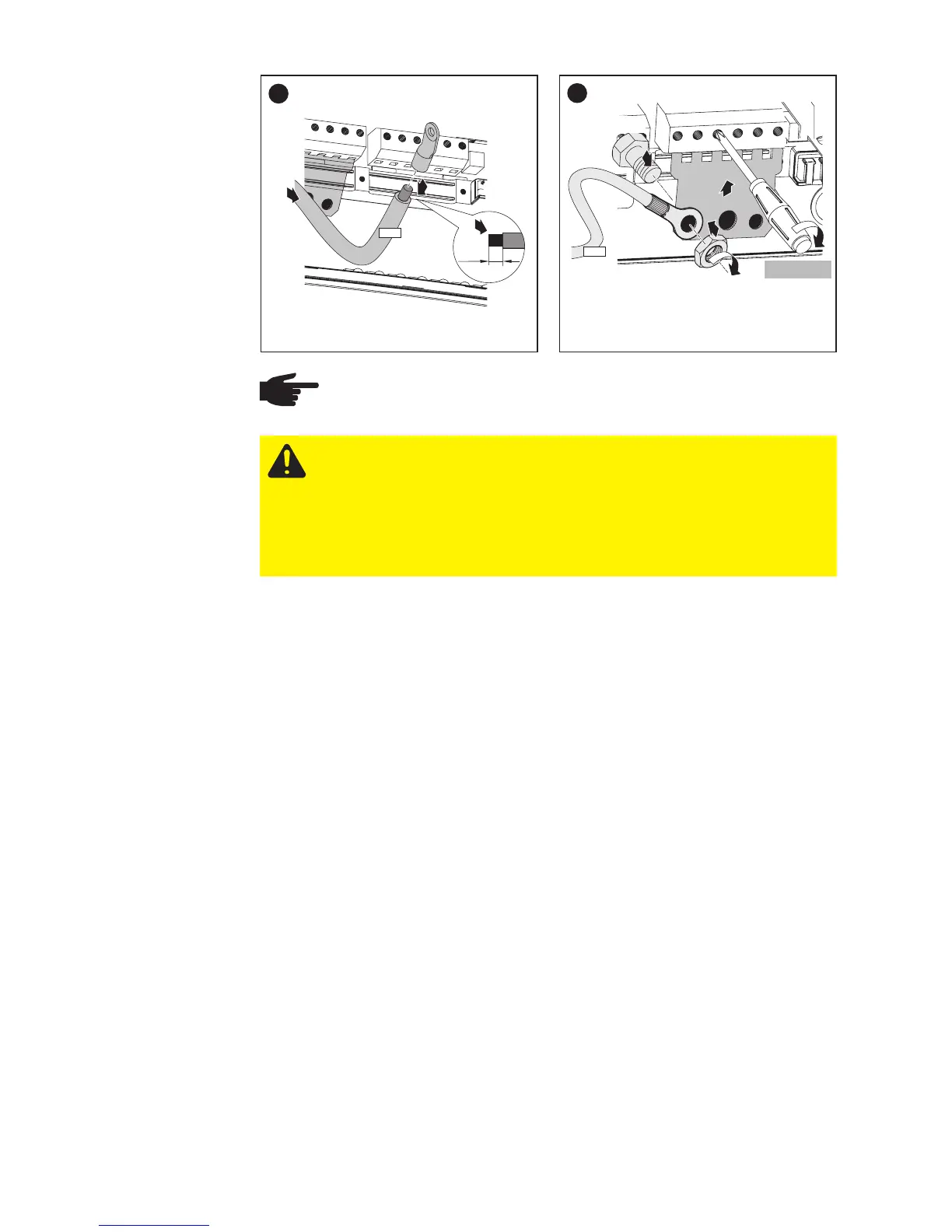

Connecting
combined
Solar Module
Strings using
a DC String
Input Combi-
ner
(continued)
1.33 ft. lb.
CAUTION! Danger of damaging the inverter by overload.
Bevore starting up the inverter make sure, that a conductive
slug is inserted in each fuse holder for string fuses.
- Insert conductive slugs only with a fuse cover in the respec-
tive fuse holder
- Do not operate the Fronius IG Plus without fuse covers
NOTE
Form a min. 4 in. wire loop using all wires.

Fronius IG Plus 3.0-1 Specifications

General

Protection class	IP 44
Max. output current	13 A
Nominal AC voltage	230 V
THD	< 3%
Max. DC voltage	500 V
Maximum Input Voltage	500 V
Number of MPP Trackers	1
Operating Temperature Range	-20°C to +55°C
Cooling	Convection
Warranty	5 years
AC nominal output	3000 W
Max. apparent AC power	3000 VA
AC voltage range	180 - 264 V
