11.22 Built-in Option Card Types and Ports in Which They Can be Installed
11-101
SELECTING PERIPHERAL EQUIPMENT
Chap 11
DIP switch settings
The node address and data rate are set with DIP switches. (See figure below.) The node address setting range is
0 to 63, and the data rate setting range is 125/250/500 kbit/s. Select the appropriate ranges with the DIP switches
before turning ON the communication card power. Even if switches are set while the power is ON, please be aware
that they will not be reflected until the power has been turned OFF and ON again.

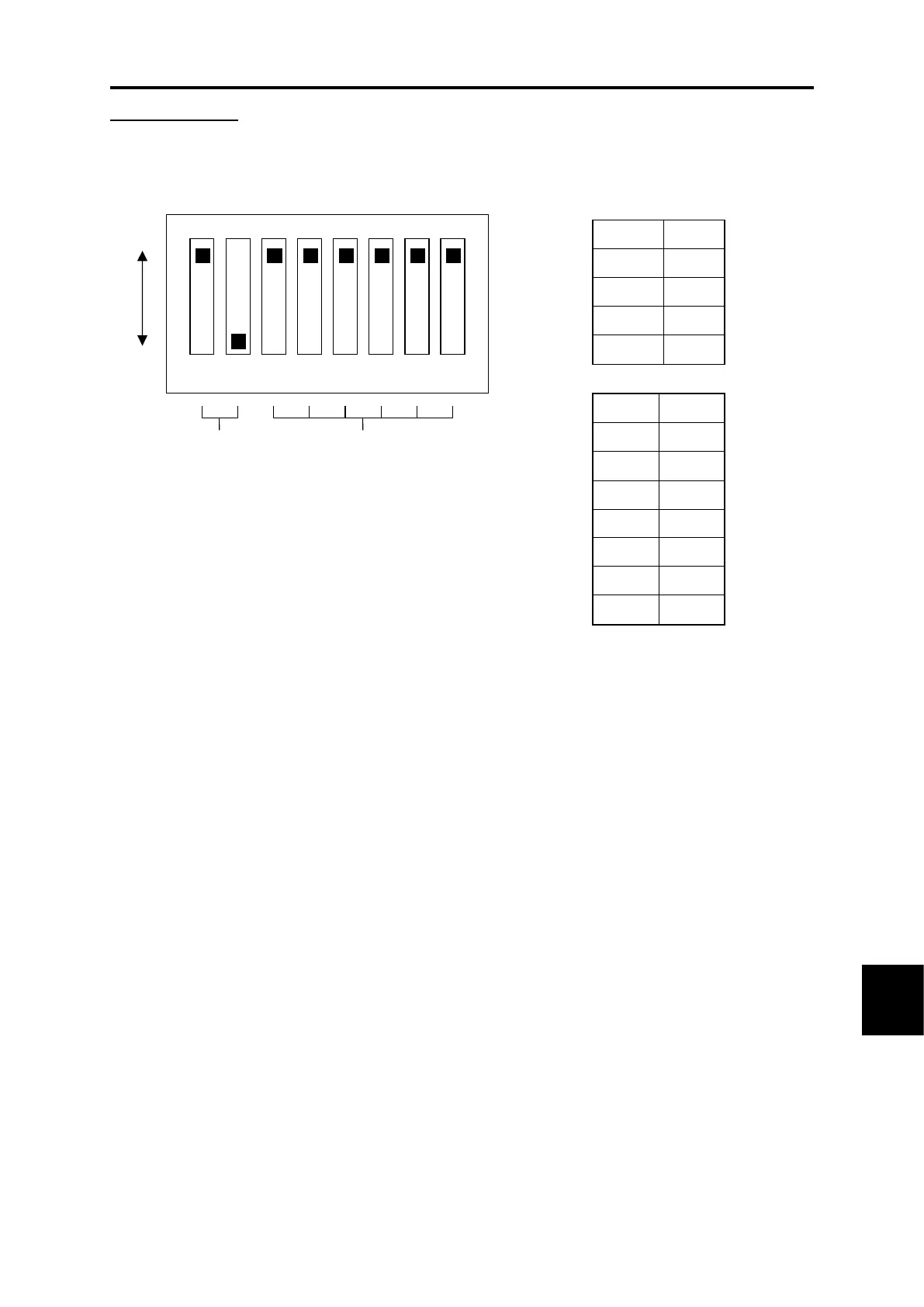

Fig. 11.22-8 DIP switch details (in the diagram, the node address is 63, and the data rate is 500 kbit/s)
1 2 3 4 5 6 7 8
Data rate (DR) Node address (NA)
ON
OFF
DR (bit/s)
DIP 1-2
125 K
00
250 K
01
500 K
10
Prohibited
11
NA
DIP 3-8
0
000000
1
000001
2
000010
3
000011
...
...
62
111110
63
111111
