11.22 Built-in Option Card Types and Ports in Which They Can be Installed
11-116
• Outputs analog DC voltage analog 0 to 10 VDC
monitor signal.
• One of the following selected items can be
output.
• Output frequency (before slip compensation,
after slip compensation)
• Output current
• Output voltage
• Output torque
• Load factor
• Power consumption
• PID feedback value
• PG feedback value
• DC intermediate circuit voltage
• Universal AO
• Motor output
• Analog output test
• PID command
• PID output
• Resolution: 1/3000
* Capable of driving up to two analog voltmeters
with 10 kΩ impedance.
• Reference terminal for analog voltage output +
[Ao+]
Equipotent
with the
inverter’s
terminal [11]

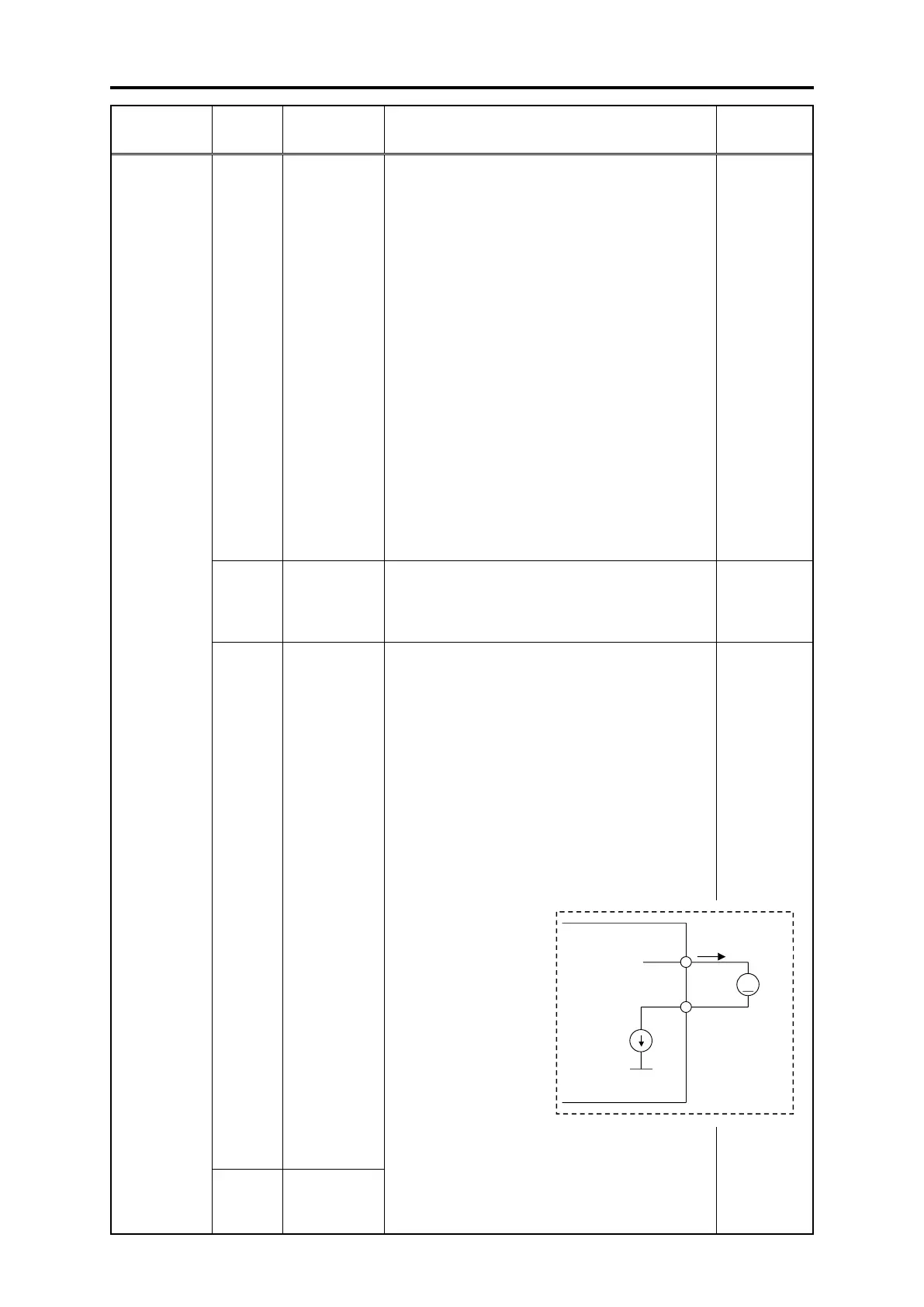

• Outputs the analog DC current 4 to 20 mA DC
monitor signal.
• One of the following selected items can be output.
• Output frequency (before slip compensation,
after slip compensation)
• Output current
• Output voltage
• Output torque
• Load factor
• Power consumption
• PID feedback value
• PG feedback value
• DC intermediate circuit voltage
• Universal AO
• Motor output
• Analog output test
• PID command
• PID output
• Resolution: 1/3000
* Can be connected to a measuring instrument up
with maximum resistance of 500 Ω.
Isolated
from
terminals
[31], [Ao-],
and [11]
