10.9 System
Destination Use the IP address of the gateway (192.168.10.1).
Dest
Netmask
Use 255.255.255.255.
Dest
Gateway
Use the replication IP address of the source ETERNUS CS800
(192.168.10.100).

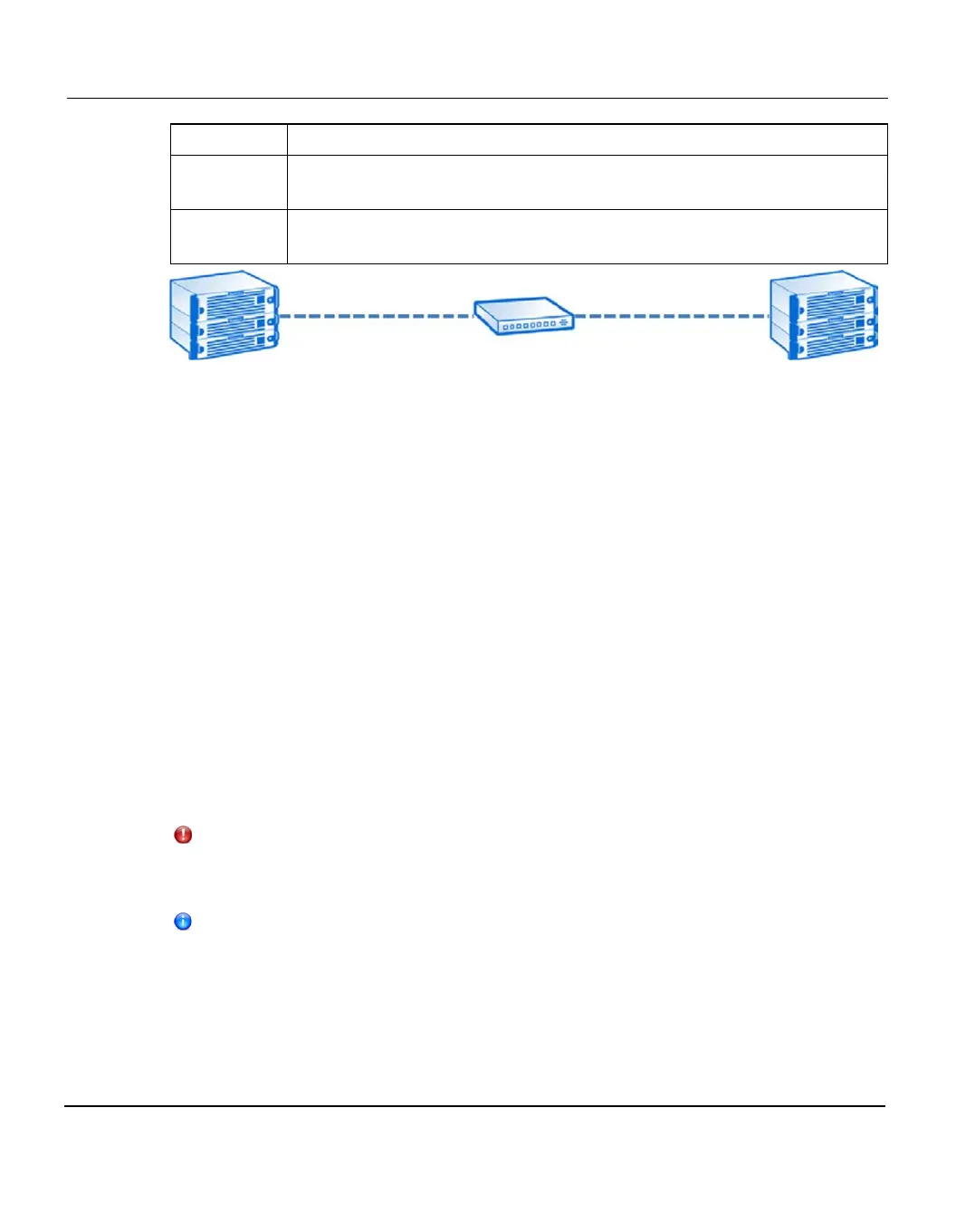

Figure 214: Interface Routing: Example 3
Backpanel Locations
The Backpanel Locations section at the bottom of the Network page displays a graphical
representation of the Ethernet ports as they appear on the rear of the system (see "Network"
on page 319).
The diagram indicates the current bonding configuration and connectivity status for all
Ethernet ports.
l Ports that are bonded together in an interface are shaded the same color.
l A green border indicates a port is connected to a network.
l A red border indicates a port is configured but is not connected to a network.
l Click Update Port View to update the information on the diagram.
10.9.2 Date & Time
The Date & Time page allows you to set the system date and time of the ETERNUS CS800.
You can specify a Network Time Protocol (NTP) server to synchronize the system time with,
or you can manually enter the date and time.
CAUTION!
Changing the date and time settings requires a system reboot immediately after the
changes are applied. Wait for at least 15 minutes before logging back in.
If you intend to join the ETERNUS CS800 to a Windows network using Active
Directory for NAS storage, ETERNUS CS800 recommends using an NTP Server
to set the system date and time (see "Windows Domain" on page 207).
To access the Date & Time page, on the System page, click the Date & Time tab (see
"Date & Time Page" on page 335).
