5.3 Cabling the ETERNUS CS800 S6 System

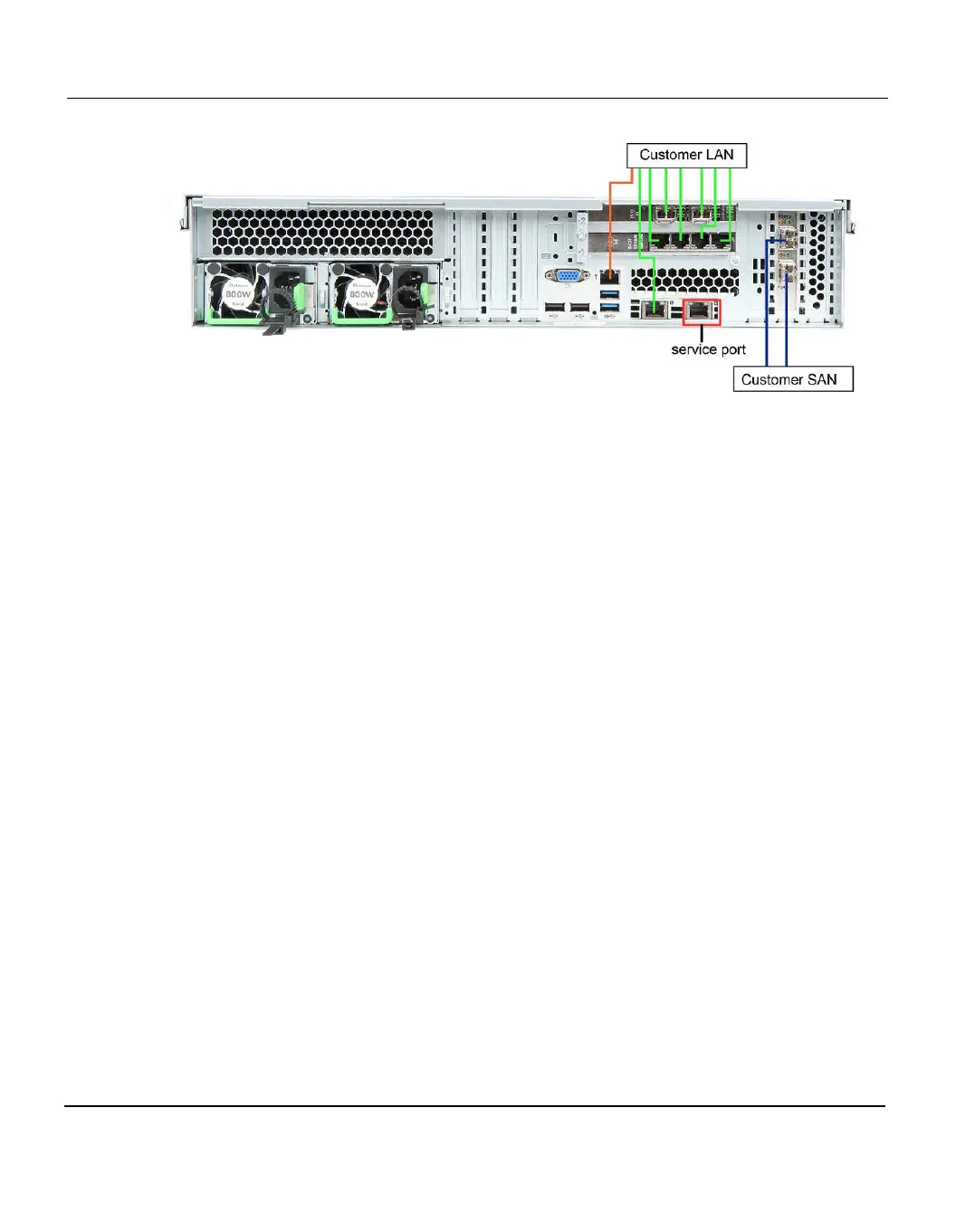

Figure 63: Entry System with 8 Gb/s Fibre Channel and with 10 Gb/s Ethernet
Proceed as follows to connect theETERNUS CS800 S6 Entry:
1. Connect a power cable to each power supply of the server.
2. Connect the LAN ports and optionally the iRMC port to the appropriate networks. At
least one of the LAN ports must be connected.
3. If your CS800 also provides FC ports: Connect them to the SAN or directly to the
appropriate devices.
5.3.2 Entry System with ETERNUSJX40 S2 Option
There are four different versions of the Entry model with the JX40 option, which can be
distinguished by the ports respectively the PCI slots used in the server, see table "Usage of
PCI Slots - Entry System, with JX40 S2 option" on page 55.
Optionally up to three ETERNUS JX40 S2 storage modules can be connected to the server
to provide a disk capacity of more than 24TB (up to 120TB).
Please refer to the pictures below to identify the model and to see which ports can be
connected to the LAN and SAN and how to connect the optionally available JX40 modules.
