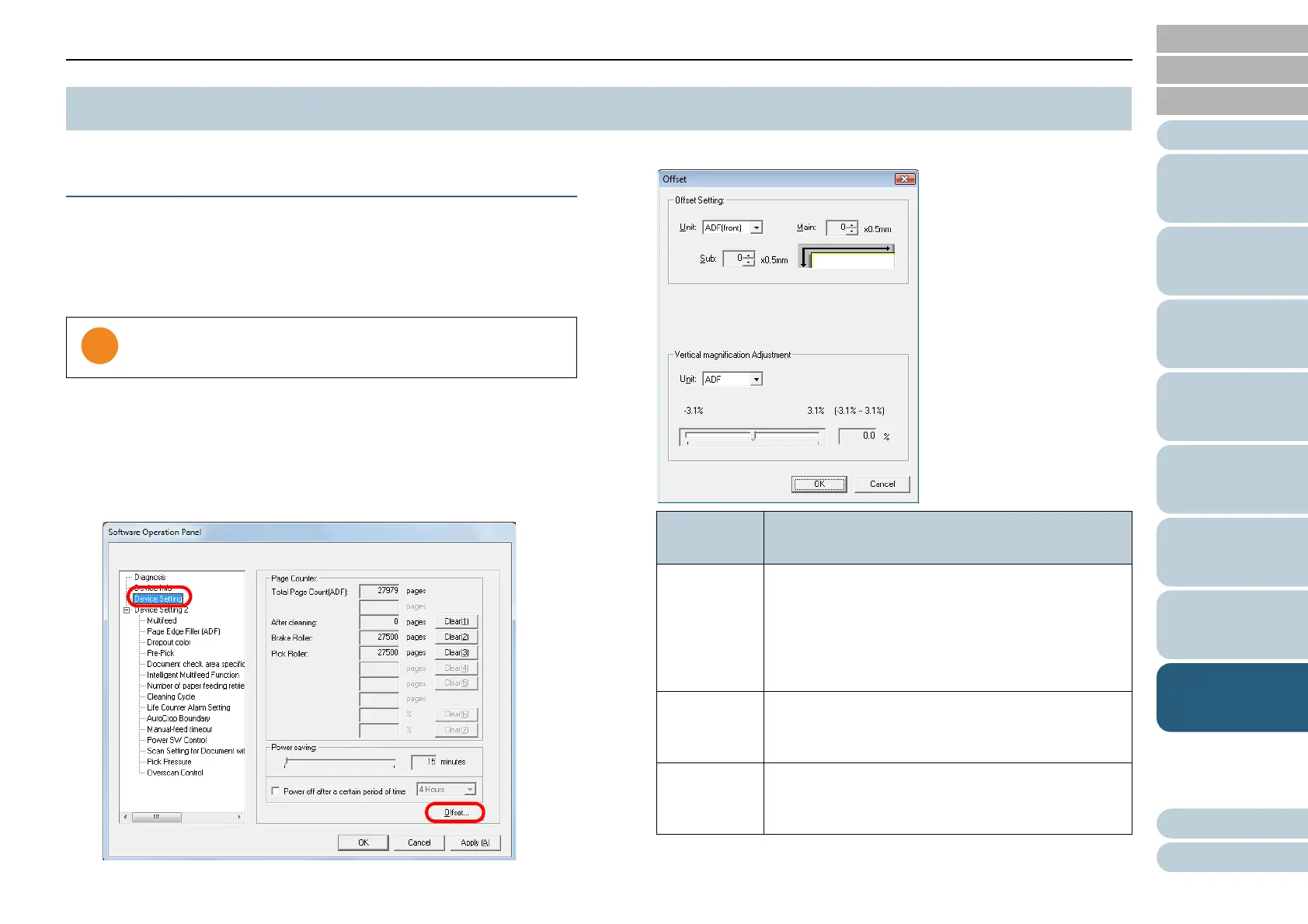

Adjusting the Starting Position for Scanning
[Offset/Vertical Magnification Adjustment]
When the position of the scanned image is not correct or the
image looks elongated in a vertical direction, use the following
procedure to adjust the offset and the scan scale for correc-
tion.
1 Start up the Software Operation Panel.
Refer to "8.1 Starting Up the Software Operation Panel" (on page
134).
2 From the tree listing on the left, select [Device Setting]
and then click the [Offset] button.
3 Adjust the offset/scan scale as necessary.
8.4 Settings Related to Scanning
！！！
The factory default settings are appropriate, so normally there
is no need to make any adjustment.
Offset
Setting
Description
Unit Select [ADF (front)] or [ADF (back)] (fi-6670/fi-6770
only), or [Flat Bed] (flatbed type only) as the target
of offset adjustment.
When the connection is via VRS option, the offset
for scanning with the ADF is adjustable for the
back-side pages only.
Main Adjusts the horizontal (widthwise) offset.
The setting range is from -2 mm to +3 mm in steps
of 0.5 mm.
Sub Adjusts the vertical (lengthwise) offset.
The setting range is from -2 mm to +3 mm in steps
of 0.5 mm.
