5 Under [Select Current Image Setting], select the side(s) to
scan.
Configure scan settings for both color and black-and-white
documents in the [TWAIN Driver (32)] dialog box.
You need to pre-configure settings for [Color/Grayscale] detection as
well as those for [Binary] detection.
6 In the [TWAIN Driver] dialog box, click the [OK] button.
⇒ Changes made are saved.
7 From ScandAll PRO, perform a scan.
For how to perform a scan, refer to "ScandAll PRO V2.0 User's
Guide".

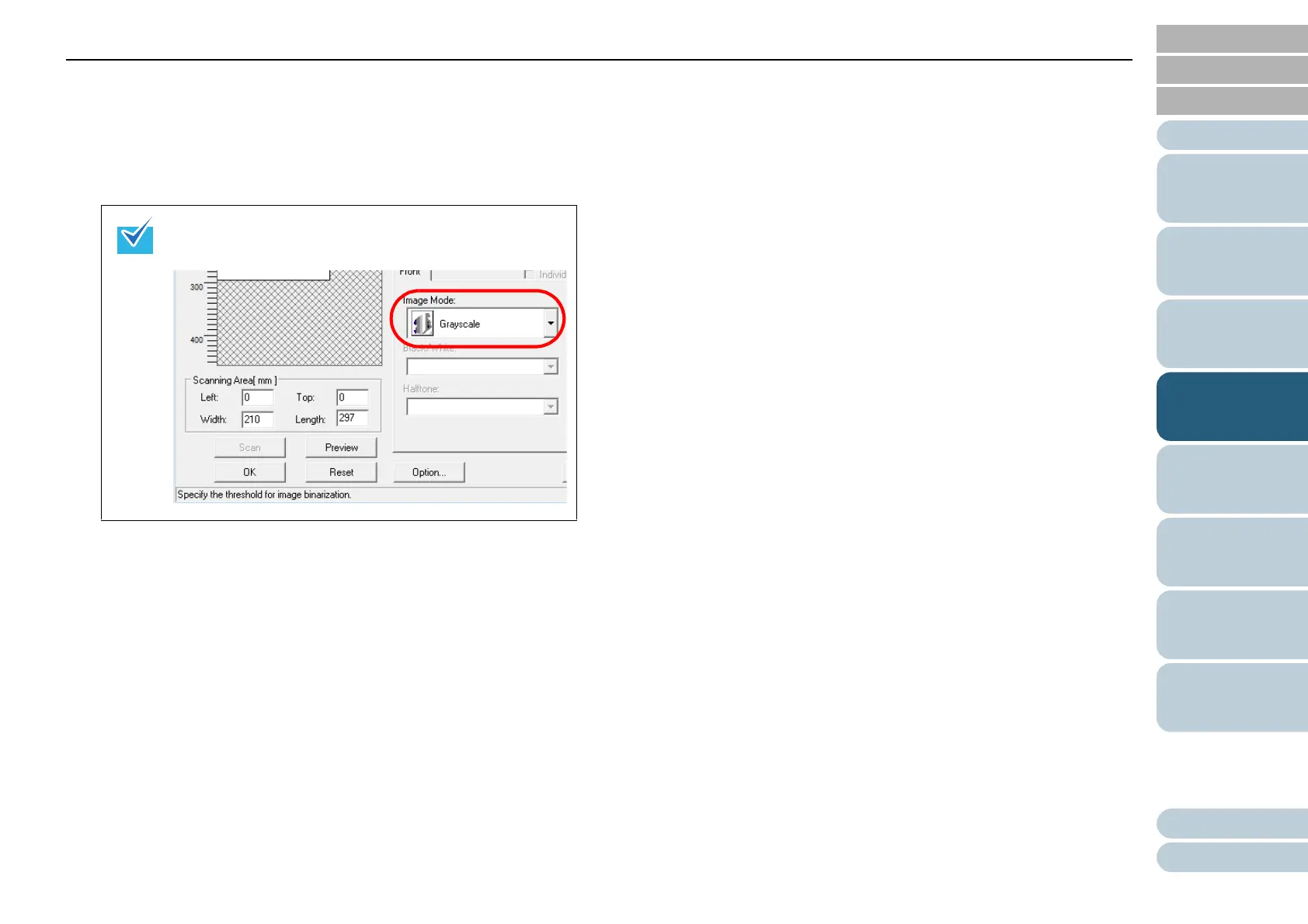

When the document is recognized as a color/grayscale
document, it is output in the mode selected under [Image
Mode] in the [TWAIN Driver (32)] dialog box.
