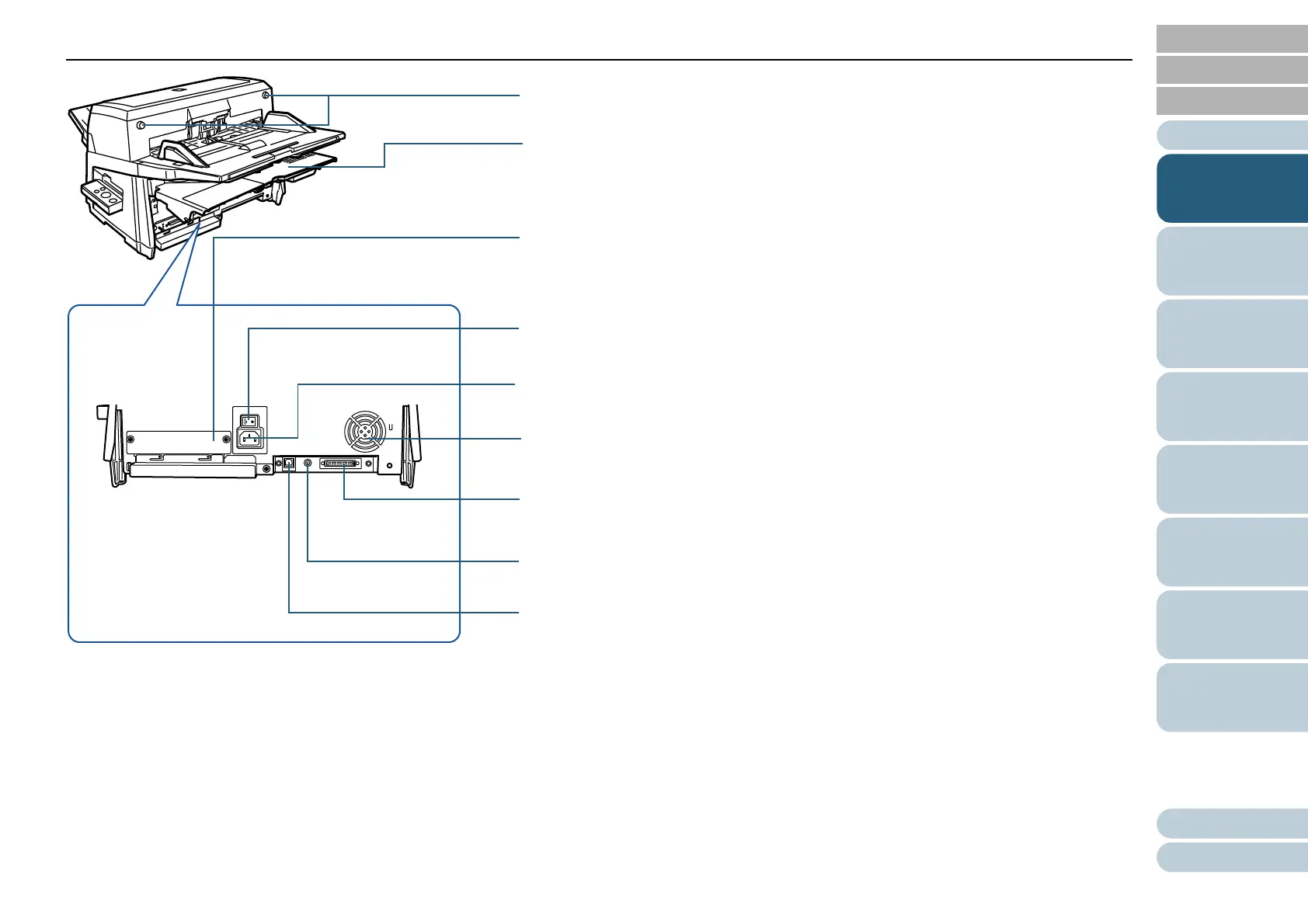

USB Connector
A connector for a USB interface cable.
SCSI Connector
A connector for a SCSI interface cable.
SCSI ID Switch
Used to configure a SCSI ID (ID=5 by factory setting).
Cable Cover
A cover to house the cablings inside to protect them.
The cables are let out from either side of the cover to avoid tangling.
fi-6670
ADF Open Button
Opens the ADF. Push the buttons in to open the ADF.
CGA Board Slot
Remove the cover to install a CGA or optional board.
For details of the CGA board, refer to "A.4 Scanner Options" (on page 176).
Main Power Switch
Used to turn the scanner ON and OFF.
Power Connector
A connector for a power cable.
Ventilation Port
An open port for ventilating hot air from inside the scanner.
