PRIMERGY RX200 S4 User's Guide
4 Remove the slot cover or installed card.

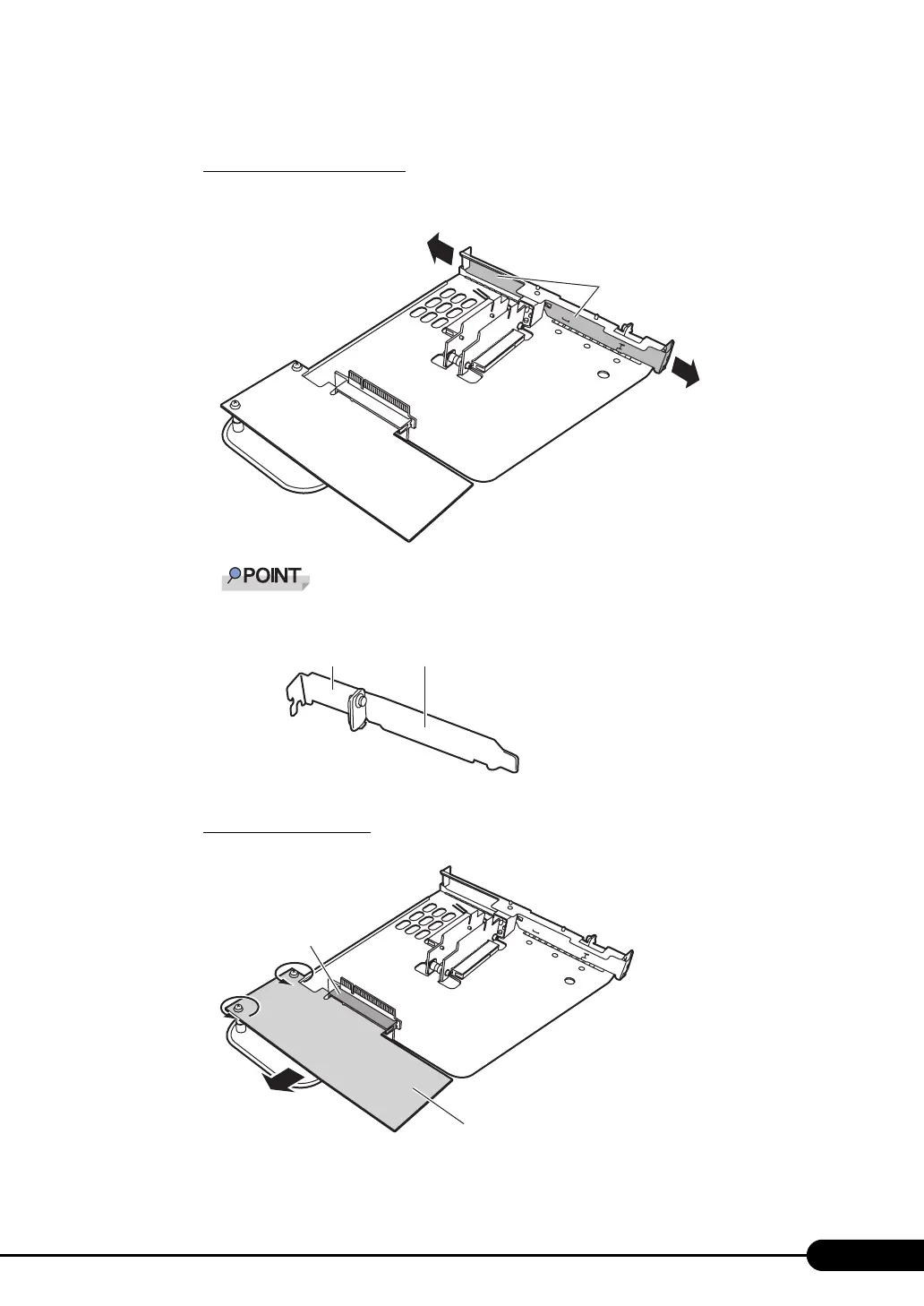

When using PCI slot 1 or 2
Remove the slot cover for the slot where the expansion card will be installed from the card fix
frame.
The slot cover for PCI slot 2 is composed of a low-profile slot cover and an extension slot
cover.
Keep the removed slot cover for later use.
When using PCI slot 3
Remove the installed SAS Ctrl.
Slot cover
Extension
slot cover
Low-profile
slot cover
PCI slot 3
SAS Ctrl
(installed as a standard feature)
