Chapter 7 Configuring Hardware and Utilities
7.1 Jumper Pins/Switch Block
Settings
This section explains the jumper pins and switch block settings on this server.
 Jumper pin/Switch location

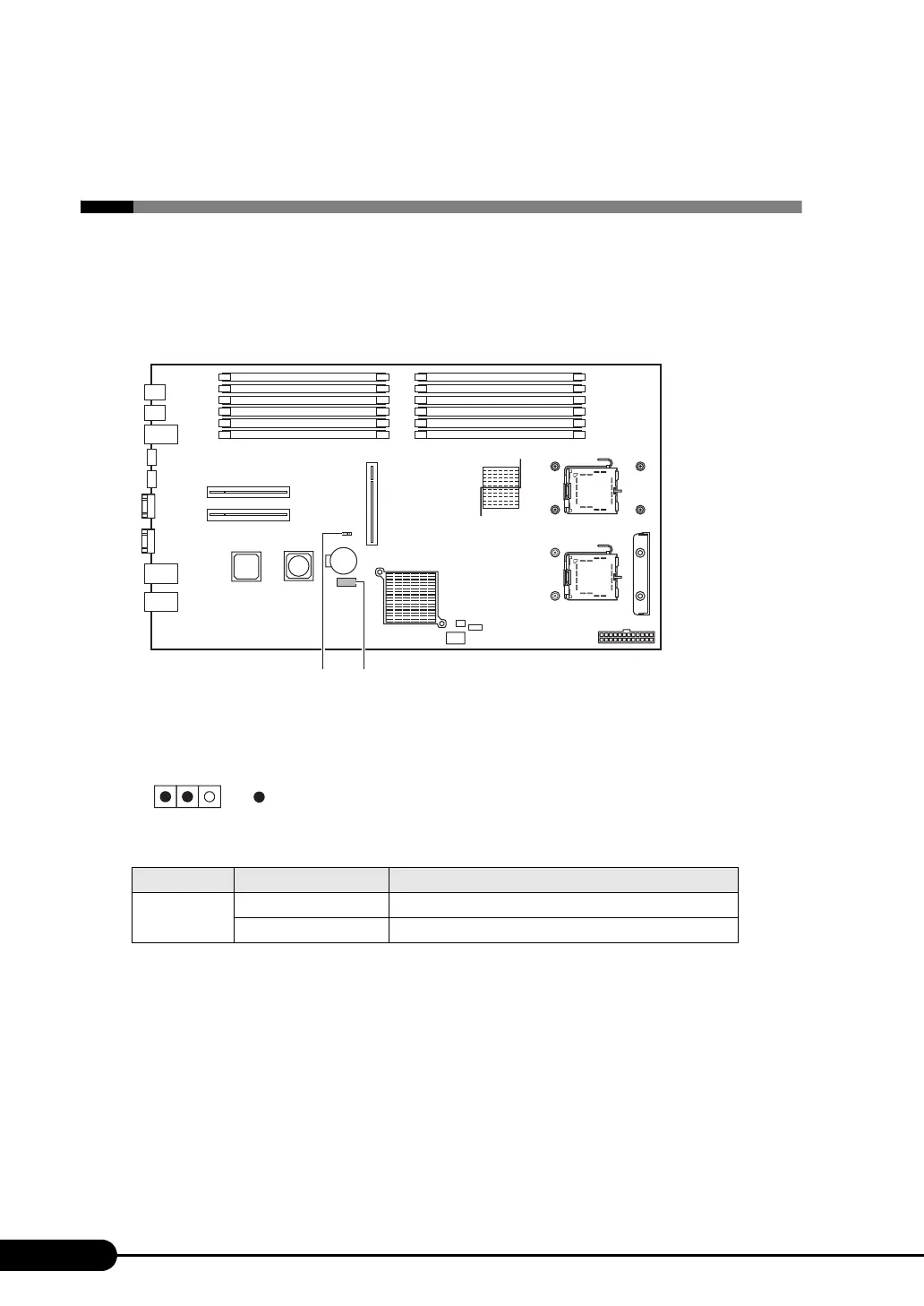

The jumper pin and switch are located on the baseboard as shown below.
 Jumper pin settings
The jumper pin settings are as follows:
table: Jumper pin settings
Jumper Settings Description
JP2
1-2 (default) Keeps the information stored in CMOS.
2-3 Clears the information stored in CMOS.
JP2 Switch block
[Front][Rear]
1 2 3
:Short
