14.2 Removing the Fan Backplane
1. Remove the signal cable for the operator panel (1 in FIGURE 14-3).
The cable is on the right side of the fan backplane.
2. Remove the signal cable connector for the motherboard unit (2 in
FIGURE 14-3).
The cable connector is on the rear side of the fan backplane.
3. Remove the four screws securing the fan backplane (3 in
FIGURE 14-3).

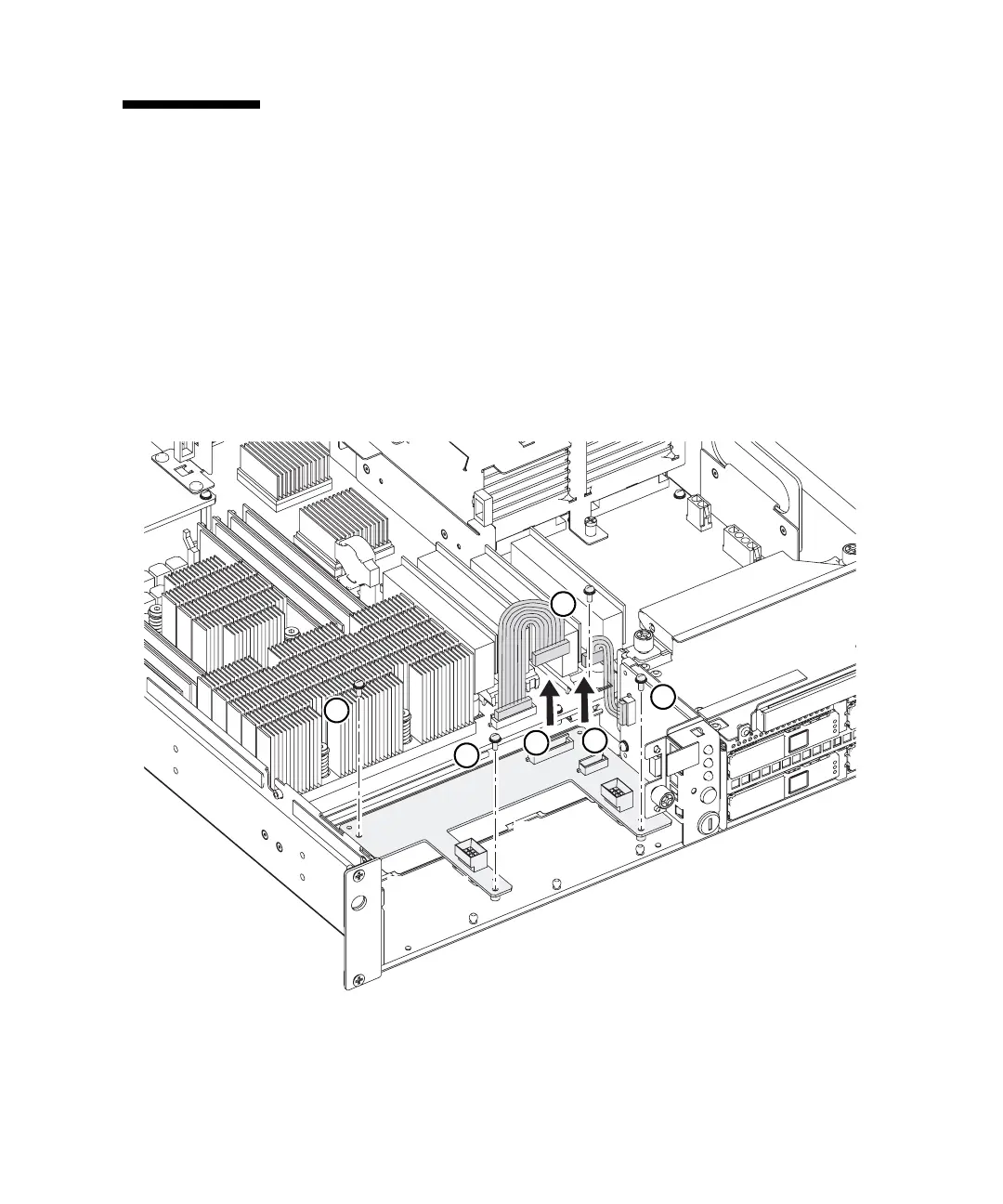

FIGURE 14-3 Removing the Fan Backplane
4. Remove the fan backplane from the server, and place it on a conductive mat.
