SPARC Enterprise M3000 Server Service Manual
•
March 2012
5.3.2
Attaching the Air Duct
1.
Set the tab at the front of the air duc
t in place and then lower the ai
r duct
(

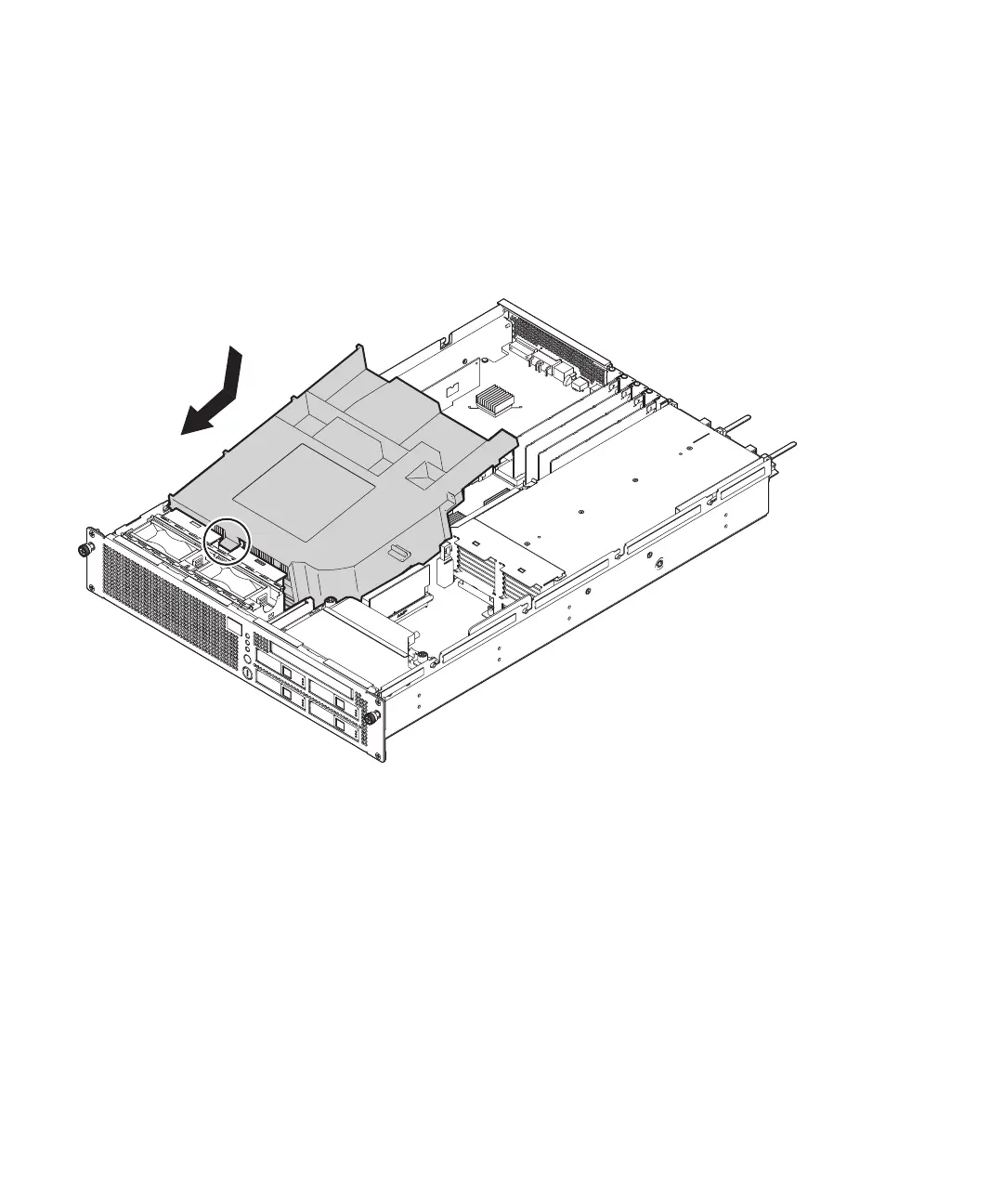

FIGURE
5-4
).
Prevent cables fr
om in
terfering each othe
r
.
FIGURE
5-4
Attaching the Air Duct
2.
Attach the top
cover
.
For details, see
Section
5.2.2, “Attaching th
e T
op Cover” on page
5-4
.
91
93
