D-2 SPARC Enterprise M3000 Server Service Manual • March 2012
FIGURE D-1 shows the location of the UPC port on the M3000 server.

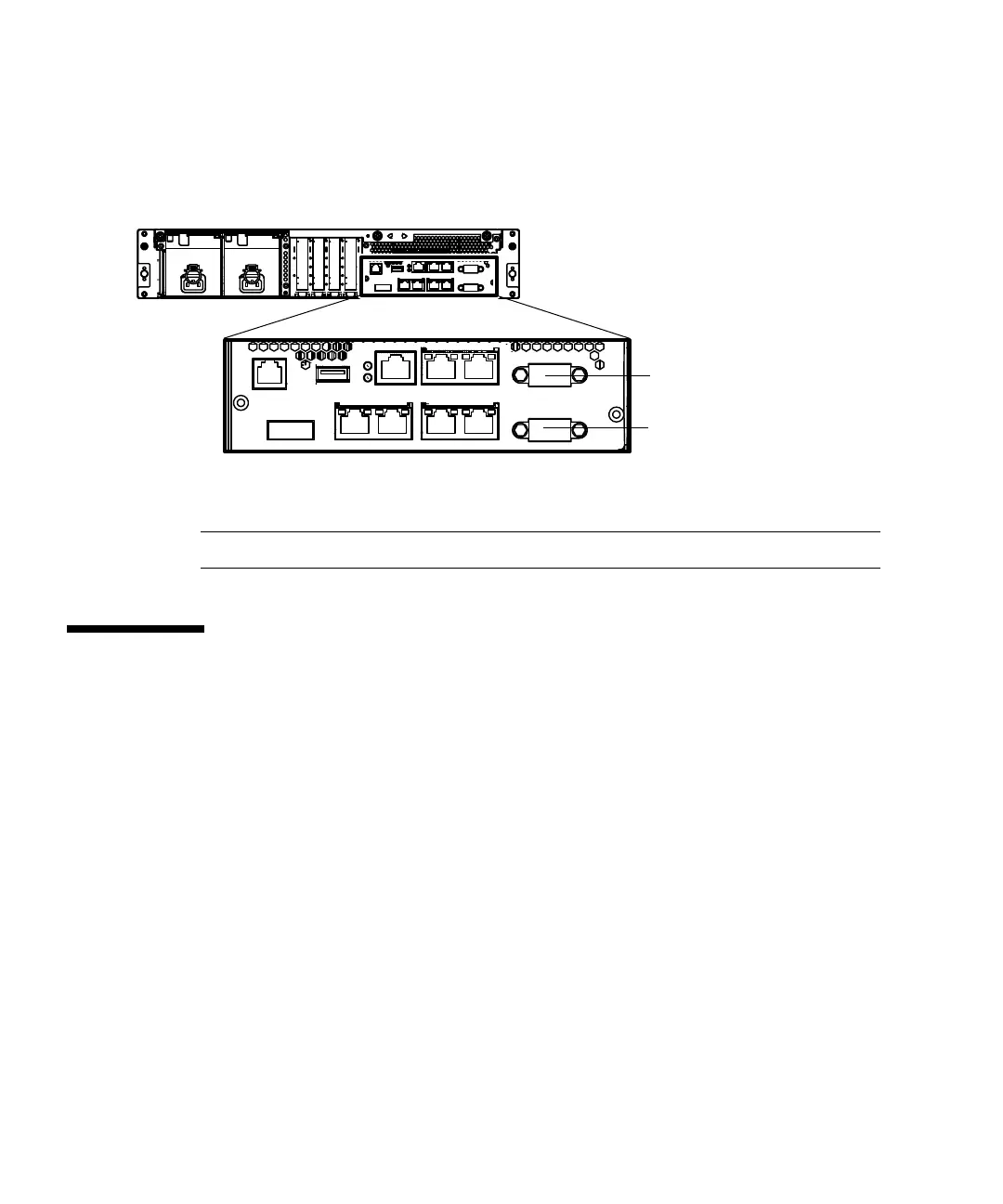

FIGURE D-1 UPC Port Locations
Note – The UPC port is supported only in the AC power supply model.
D.2 Signal Cable
Use the shielded pair cable with the following specifications.
■ Direct current resistance (roundtrip/pair): 400 W/km or less
■ Cable length: Up to 10 m (33 ft.)
UPC0 port
UPC1 port
Rear view
